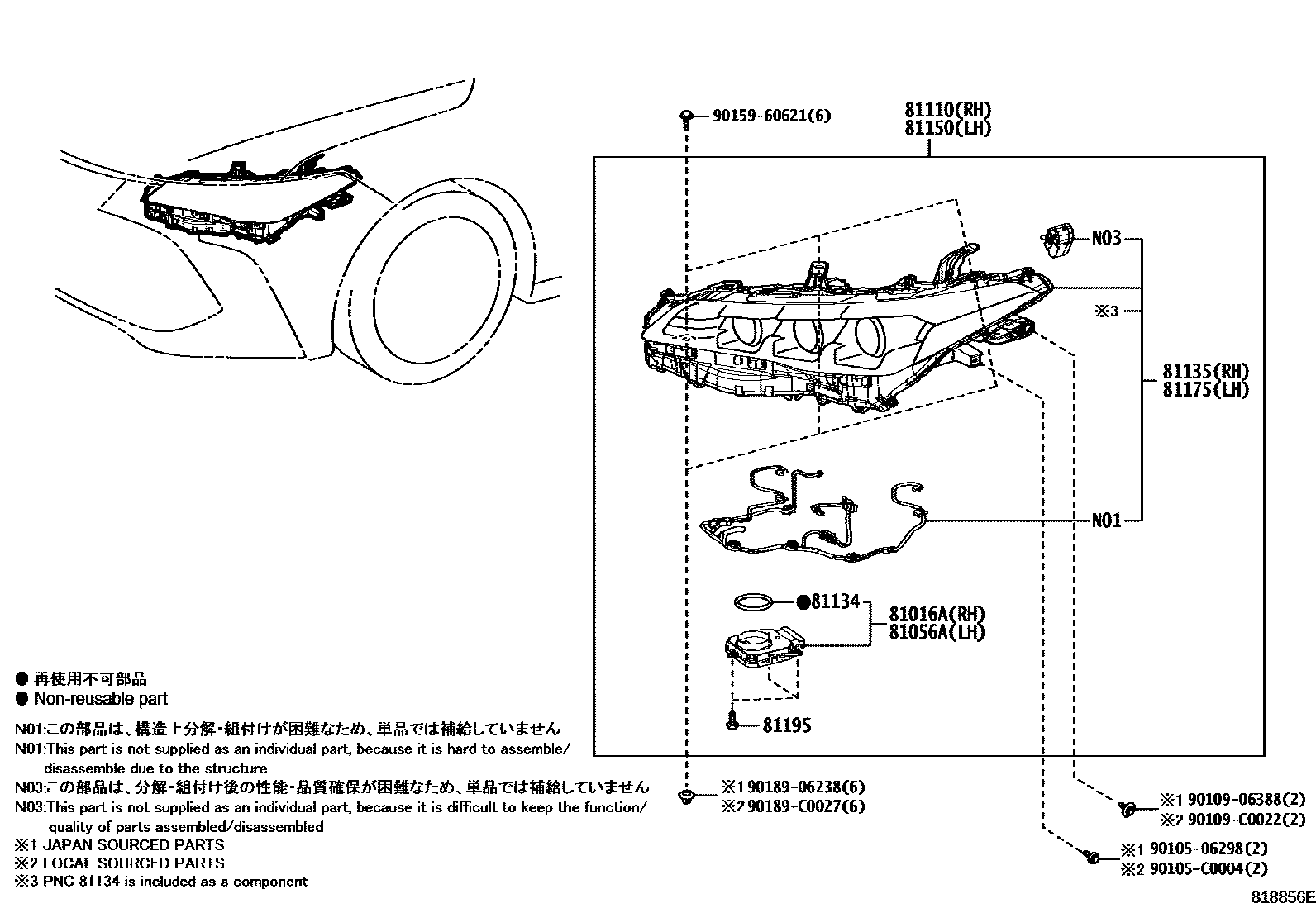

Toyota AVALON (CHINA) — HEADLAMP

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-07240iAXXA50,MXXA50201903-202106

main81016-07240iAXXH50201903-202107

main81016-07240iAXXH50..E202106-202202

main81016-07240iAXXA50,MXXA50;AXXH50..B,G,Q202106-202203

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-07240iAXXA50,MXXA50201903-202106

main81056-07240iAXXH50201903-202107

main81056-07240iAXXH50..E202106-202202

main81056-07240iAXXA50,MXXA50;AXXH50..B,G,Q202106-202203

81110HEADLAMP ASSY, RH

main81110-07190iAXXH50..E202106-202202

sub81110-07191

main81110-07190iAXXA50,MXXA50202008-202106

sub81110-07191

main81110-07190iAXXH50202008-202107

sub81110-07191

main81110-07190iAXXA50,MXXA50;AXXH50..B,G,Q202106-202203

sub81110-07191

main81110-07240iAXXA50,AXXH50,MXXA50201903-202008

sub81110-07241

main81110-07300iAXXA50,AXXH50,MXXA50202203-202303

main81110-07300iMXXA50..B,E202304-202407

main81110-07300iMXXA50..G;AXXA50,AXXH50202304

main81110-YK070iMXXA50..B,E;AXXH52,MXXH50202407

81134GASKET, HEADLAMP

main90075-23003iAXXA50,AXXH50,MXXA50¥200201903-202008

main90075-23003iAXXA50,MXXA50;AXXH50..B,G,Q¥200202106-202203

main90075-23003iAXXA50,MXXA50¥200202008-202106

main90075-23003iAXXH50¥200202008-202107

main90075-23003iAXXH50..E¥200202106-202202

81135UNIT ASSY, HEADLAMP, RH

main81145-07190iAXXH50..E202106-202202

main81145-07190iAXXA50,MXXA50202008-202106

main81145-07190iAXXH50202008-202107

main81145-07190iAXXA50,MXXA50;AXXH50..B,G,Q202106-202203

main81145-07240iAXXA50,AXXH50,MXXA50201903-202008

81150HEADLAMP ASSY, LH

main81150-07190iAXXA50,MXXA50;AXXH50..B,G,Q202106-202203

sub81150-07191

main81150-07190iAXXA50,MXXA50202008-202106

sub81150-07191

main81150-07190iAXXH50202008-202107

sub81150-07191

main81150-07190iAXXH50..E202106-202202

sub81150-07191

main81150-07240iAXXA50,AXXH50,MXXA50201903-202008

sub81150-07241

main81150-07300iAXXA50,AXXH50,MXXA50202203-202303

main81150-07300iMXXA50..B,E202304-202407

main81150-07300iMXXA50..G;AXXA50,AXXH50202304

main81150-YK070iMXXA50..B,E;AXXH52,MXXH50202407

81175UNIT ASSY, HEADLAMP, LH

main81185-07190iAXXH50..E202106-202202

main81185-07190iAXXA50,MXXA50202008-202106

main81185-07190iAXXH50202008-202107

main81185-07190iAXXA50,MXXA50;AXXH50..B,G,Q202106-202203

main81185-07240iAXXA50,AXXH50,MXXA50201903-202008

81195SCREW, HEADLAMP

main90075-02056iAXXA50,MXXA50¥60201903-202106

main90075-02056iAXXH50¥60201903-202107

main90075-02056iAXXH50..E¥60202106-202202

main90075-02056iAXXA50,MXXA50;AXXH50..B,G,Q¥60202106-202203

9010506298

main90105-06298¥60

90105C0004

main90105-C0004

9010906388

main90109-06388¥70

90109C0022

main90109-C0022

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

90189C0027

main90189-C0027

15 parts on this diagram · 1 diagram in section
