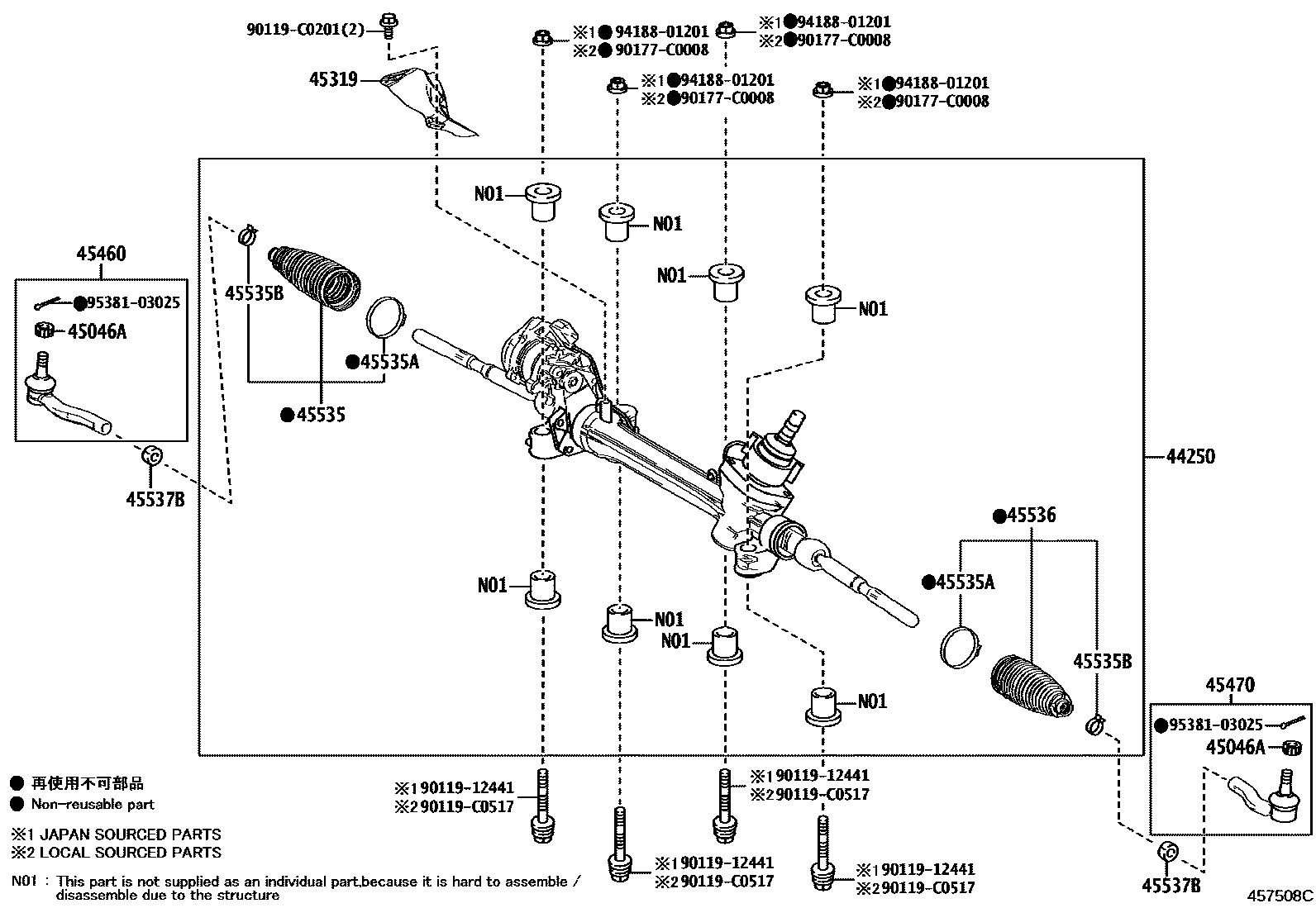

Toyota AVALON (CHINA) — FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-06580iMXXA50..B,E;AXXH52,MXXH50202407

main44250-07130iAXXA50,MXXA50..B,E201903-202106

TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM SUMMER TIRE

main44250-07130iAXXH50..E202106-202202

main44250-07130iAXXH50..B;AXXA50,MXXA50..B,E202106-202203

TIRE & DISC WHEEL-215/55R17, 7.5J, ALUMINUM, SUMMER TIRE

main44250-07130iAXXH50..B,E201903-202107

TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM SUMMER TIRE

main44250-07131iAXXA50,AXXH50,MXXA50..B,E202203-202303

TIRE & DISC WHEEL-215/55R17, 7.5J, ALUMINUM, SUMMER TIRE

main44250-07132iAXXA50,AXXH50,MXXA50..G,Q202304

TIRE & DISC WHEEL-215/55R17,7.5J,ALUMINUM,SUMMER TIRE

main44250-07132iMXXA50..B,E202304-202407

main44250-07140iAXXA50,AXXH50,MXXA50..G,Q202106-202203

main44250-07140iAXXH50..G,Q201903-202107

main44250-07140iAXXA50,MXXA50..G201903-202106

main44250-07141iAXXA50,AXXH50,MXXA50..G,Q202203-202303

main44250-07142iAXXA50,AXXH50,MXXA50..G,Q202304

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-C0001iAXXH50201903-202107

main90171-C0001iAXXA50,MXXA50201903-202106

main90171-C0001iAXXH50..E202106-202202

main90171-C0001iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

main90171-C0001iMXXA50..B,E202304-202407

main90171-C0001iMXXA50..G;AXXA50,AXXH50202304

main90171-C0001iMXXA50..B,E;AXXH52,MXXH50202407

45319INSULATOR, STEERING GEAR HEAT

main45319-07020iAXXA50,MXXA50201903-202106

main45319-07020iAXXH50201903-202107

main45319-07020iAXXH50..E202106-202202

main45319-07020iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

main45319-07020iMXXA50..B,E202304-202407

main45319-07020iMXXA50..G;AXXA50,AXXH50202304

main45319-07020iMXXA50..B,E;AXXH52,MXXH50202407

45460ROD ASSY, TIE, RH

main45460-09290iAXXA50,MXXA50201903-202106

main45460-09290iAXXH50201903-202107

main45460-09290iAXXH50..E202106-202202

main45460-09290iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

main45460-09290iMXXA50..B,E202304-202407

main45460-09290iMXXA50..G;AXXA50,AXXH50202304

main45460-09290iMXXA50..B,E;AXXH52,MXXH50202407

45470ROD ASSY, TIE, LH

main45470-09190iMXXA50..B,E;AXXH52,MXXH50202407

main45470-09190iAXXA50,MXXA50201903-202106

main45470-09190iAXXH50201903-202107

main45470-09190iAXXH50..E202106-202202

main45470-09190iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

main45470-09190iMXXA50..B,E202304-202407

main45470-09190iMXXA50..G;AXXA50,AXXH50202304

45535BOOT, STEERING RACK, NO.1

main45535-09580iAXXA50,AXXH50,MXXA50201903-202102

sub45535-09680

main45535-09680iAXXA50,MXXA50202102-202106

main45535-09680iAXXH50202102-202107

main45535-09680iAXXH50..E202106-202202

main45535-09680iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

main45535-09680iMXXA50..B,E202304-202407

main45535-09680iMXXA50..G;AXXA50,AXXH50202304

main45535-09680iMXXA50..B,E;AXXH52,MXXH50202407

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-0D070iAXXA50,MXXA50201903-202106

main45538-0D070iAXXH50201903-202107

main45538-0D070iAXXH50..E202106-202202

main45538-0D070iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

main45538-0D070iMXXA50..B,E202304-202407

main45538-0D070iMXXA50..G;AXXA50,AXXH50202304

main45538-0D070iMXXA50..B,E;AXXH52,MXXH50202407

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030iAXXA50,MXXA50201903-202106

main45537-0D030iAXXH50201903-202107

main45537-0D030iAXXH50..E202106-202202

main45537-0D030iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

main45537-0D030iMXXA50..B,E202304-202407

main45537-0D030iMXXA50..G;AXXA50,AXXH50202304

main45537-0D030iMXXA50..B,E;AXXH52,MXXH50202407

45536BOOT, STEERING RACK, NO.2

main45535-09580iAXXA50,AXXH50,MXXA50201903-202102

sub45535-09680

main45535-09680iMXXA50..B,E;AXXH52,MXXH50202407

main45535-09680iAXXH50202102-202107

main45535-09680iMXXA50..G;AXXA50,AXXH50202304

main45535-09680iAXXH50..E202106-202202

main45535-09680iAXXA50,MXXA50202102-202106

main45535-09680iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

main45535-09680iMXXA50..B,E202304-202407

45537BNUT, RACK END LOCK

main90178-16001iAXXA50,MXXA50;AXXH50..B,G,Q¥120202106-202303

(J)

main90178-16001iMXXA50..B,E¥120202304-202407

(J)

main90178-16001iMXXA50..G;AXXA50,AXXH50¥120202304

(J)

main90178-16001iMXXA50..B,E;AXXH52,MXXH50¥120202407

(J)

main90178-16001iAXXA50,MXXA50¥120201903-202106

(J)

main90178-16001iAXXH50¥120201903-202107

(J)

main90178-16001iAXXH50..E¥120202106-202202

(J)

main90178-C0015iMXXA50..B,E;AXXH52,MXXH50202407

(L)

main90178-C0015iAXXA50,MXXA50201903-202106

(L)

main90178-C0015iAXXH50201903-202107

(L)

main90178-C0015iAXXH50..E202106-202202

(L)

main90178-C0015iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

(L)

main90178-C0015iMXXA50..B,E202304-202407

(L)

main90178-C0015iMXXA50..G;AXXA50,AXXH50202304

(L)

9011912441

main90119-12441¥360

90119C0201

main90119-C0201

90119C0517

main90119-C0517

90177C0008

main90177-C0008

9418801201

main94188-01201¥160

9538103025

main95381-03025¥130

16 parts on this diagram · 2 diagrams in section
