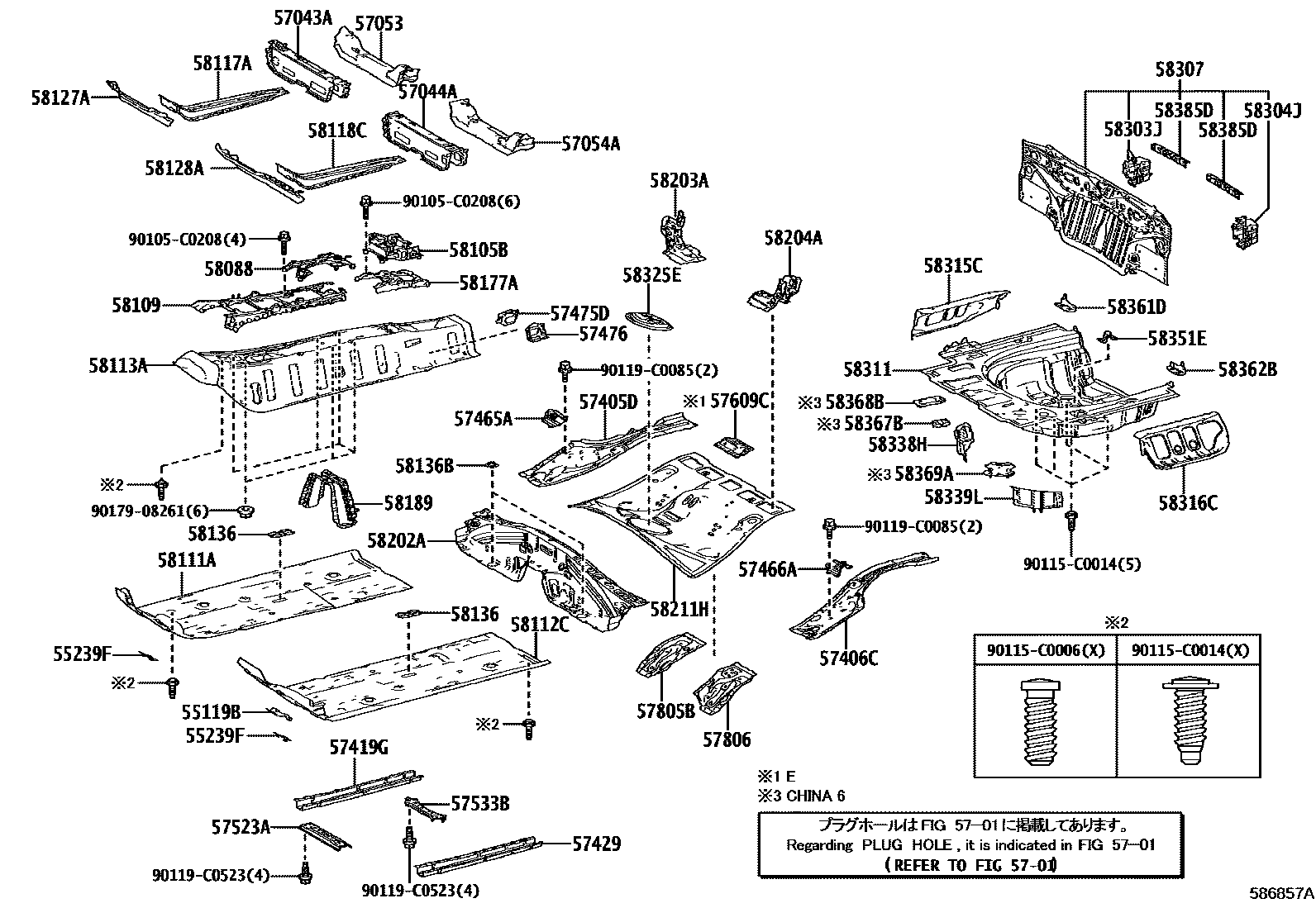

Toyota AVALON (CHINA) — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

55119BEXTENSION, DASH PANEL, LH

main55119-07020iAXXH50201903-202407

main55119-07030iMXXA50..B,E;AXXH52,MXXH50202407

55239FPLATE, DASH PANEL INSULATOR, NO.3

main55239-07010iAXXA50,MXXA50201903-202407

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-07020iAXXA50,MXXA50201903-202407

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-07010iAXXA50,MXXA50201903-202407

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-07010iAXXA50,MXXA50201903-202407

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-07010iAXXA50,MXXA50201903-202407

57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH

main57405-07010iAXXA50,MXXA50201903-202407

main57405-07020iMXXA50..B,E;AXXH52,MXXH50202407

57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH

main57406-07010iAXXA50,MXXA50201903-202407

main57406-07020iMXXA50..B,E;AXXH52,MXXH50202407

57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-07070iAXXA50,MXXA50201903-202407

57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57419-07070iAXXA50,MXXA50201903-202407

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-07020iAXXA50,MXXA50201903-202407

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-07020iAXXA50,MXXA50201903-202407

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-07010iAXXA50,MXXA50201903-202407

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-07010iAXXA50,MXXA50201903-202407

57523ABRACE, CENTER FLOOR CROSSMEMBER

main57523-07010iAXXH50..E201903-202407

57533BBRACE, FRONT FLOOR, CENTER

main57533-07010iAXXA50,MXXA50201903-202407

main57533-07020iMXXA50..B,E;AXXH52,MXXH50202407

57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-07010iAXXA50,MXXA50..E201903-202407

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-07010iAXXA50,MXXA50201903-202407

main57805-07020iAXXH52,MXXH50201903-202303

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57805-07020iAXXH50..E201903-202303

main57806-07010iAXXA50,MXXA50201903-202407

58088BRACKET SUB-ASSY, FLOOR SHIFT LINK

main58088-07010iAXXA50,MXXA50201903-202407

main58088-07020iMXXA50..B,E;AXXH52,MXXH50202407

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-07020iAXXH50201903-202407

main58105-07030iMXXA50..B,E;AXXH52,MXXH50202407

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-07010iAXXA50,MXXA50201903-202407

58111APAN, FRONT FLOOR, RH

main58111-07060iAXXA50,MXXA50201903-202407

58112CPAN, FRONT FLOOR, LH

main58112-07020iAXXA50,MXXA50201903-202303

main58112-07021iMXXA50..B,E202304-202407

58113APANEL, FRONT FLOOR, CENTER

main58113-07020iAXXA50,MXXA50201903-202407

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-07010iAXXA50,MXXA50201903-202407

main58117-07020iMXXA50..B,E;AXXH52,MXXH50202407

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58117-07010iAXXA50,MXXA50201903-202407

main58117-07020iMXXA50..B,E;AXXH52,MXXH50202407

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-07010iMXXA50..G;AXXA50,AXXH50202006-202411

sub58127-07011

main58127-07011iMXXA50..B,E;AXXH52,MXXH50202412

main58127-33030iAXXA50,AXXH50,MXXA50201903-202005

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-07010iAXXA50,AXXH50,MXXA50202006-202011

sub58128-07011

main58128-07011iAXXH50..E202012-202407

main58128-07020iMXXA50..B,E;AXXH52,MXXH50202407

main58128-33010iAXXA50,AXXH50,MXXA50¥4,520201903-202005

sub58128-33040¥4,190

58136COVER, FRONT FLOOR HOLE

main58136-07020iAXXH50201903-202407

58136BCOVER, CENTER FLOOR HOLE

main58136-07010iAXXA50,MXXA50201903-202407

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-07010iAXXH50201903-202407

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-07040iMXXA50..G;AXXA50,AXXH50201903-202407

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-07010iAXXA50,MXXA50201903-202407

main58202-07020iAXXH50201903-202303

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-07010iAXXA50,MXXA50201903-202407

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-07020iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

58211HPAN, CENTER FLOOR

main58211-07090iAXXA50201903-201909

sub58211-07091

main58211-07091iAXXA50;MXXA50..G201910-202407

main58211-07100iAXXH50201903-202303

main58211-07110iAXXH52,MXXH50202407

58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main58303-07030iAXXA50,MXXA50201903-202407

58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-07030iAXXA50,MXXA50201903-202407

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-07060iMXXA50..B,E201903-202407

58311PAN, REAR FLOOR

main58311-07050iAXXH50..E201903-202407

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-07020iAXXA50,MXXA50201903-202407

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-07010iAXXA50,MXXA50201903-202407

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-07020iMXXA50..B,E201903-202407

main58325-07030iAXXH50201903-202303

58338HREINFORCEMENT, REAR FLOOR PAN, NO.2 RH

main58338-07020iAXXA50,MXXA50201903-202407

58339LREINFORCEMENT, REAR FLOOR PAN, NO.2 LH

main58339-07030iAXXA50,MXXA50201903-202407

58351EBRACKET, SPARE WHEEL CLAMP

main58351-07010iAXXH50..E201903-202407

58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH

main58361-07010iAXXH50201903-202407

58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH

main58362-07010iAXXA50,MXXA50201903-202407

58367BBRACKET, FUEL TUBE

main58367-F4020iAXXA50,MXXA50201912-202407

58368BBRACKET, FUEL TUBE, NO.2

main58368-F4020iMXXA50..B,E;AXXH52,MXXH50201912-202407

58369ABRACKET, FUEL TUBE, NO.3

main58369-07020iAXXH50..E201912-202303

main58369-F4030iAXXA50,MXXA50201912-202407

58385DBRACKET, REAR BUMPER COVER

main58385-07010iAXXA50,MXXA50201903-202407

90105C0208

main90105-C0208

90115C0006

main90115-C0006

90115C0014

main90115-C0014

90119C0085

main90119-C0085

90119C0523

main90119-C0523

9017908261

main90179-08261¥260

60 parts on this diagram · 4 diagrams in section
