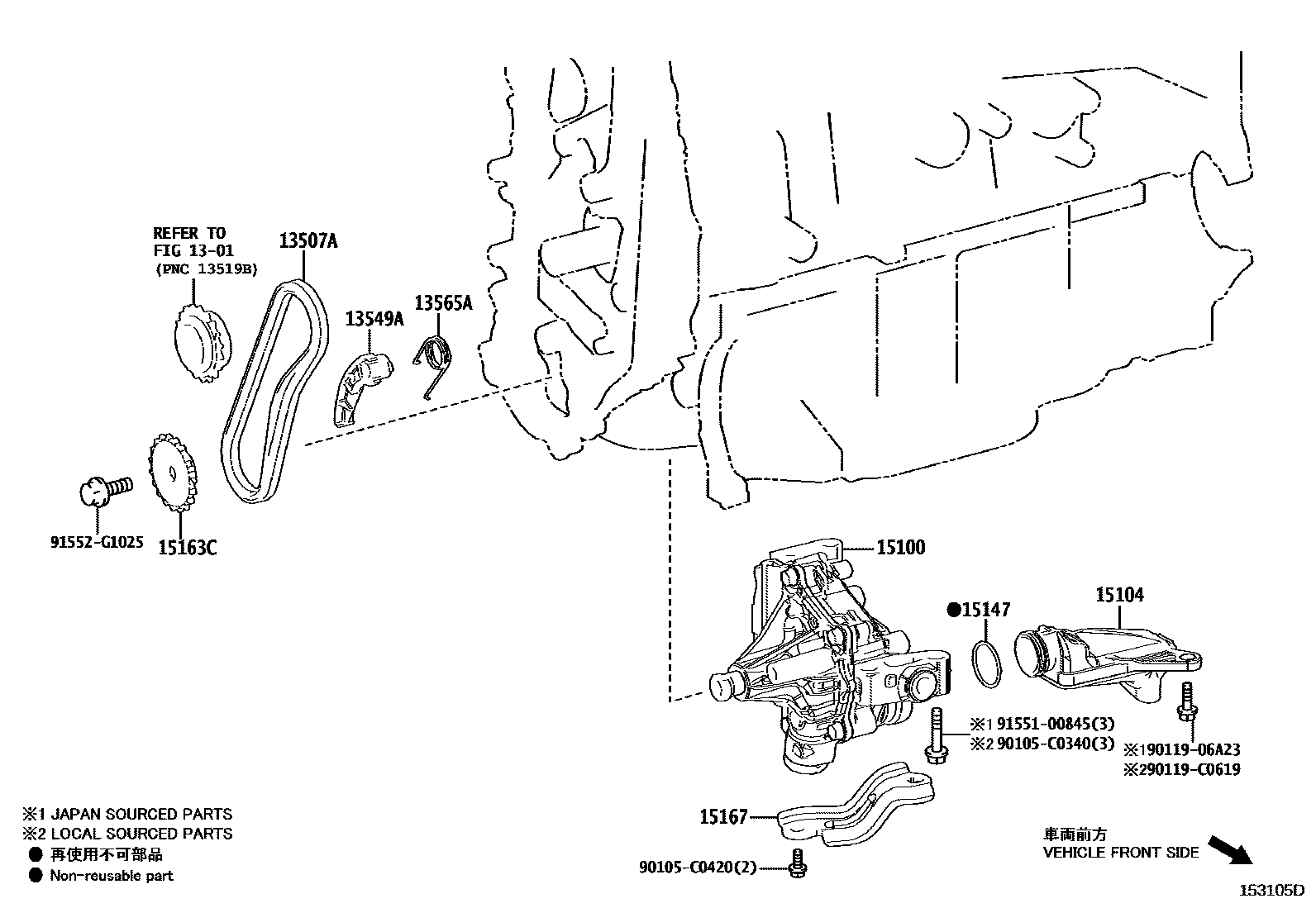

Toyota AVALON (CHINA) — ENGINE OIL PUMP

0001 1 0002 1

1301

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24020iM20..MXXA50¥4,150201910-202202

*132

main13507-25010iA25..AXXA50¥4,310201903-202107

main13507-25010iA25..AXXH50..E¥4,310202106-202203

*636

main13507-25010iA25..AXXA50;A25..AXXH50..B,G,Q¥4,310202106-202303

(J),*633

main13507-25010iA25..AXXA50,AXXH50¥4,310202304

(J)

main13507-F0020iA25..AXXA50,AXXH50202304

(L)

main13507-F0020iA25..AXXA50;A25..AXXH50..B,G,Q202106-202303

(L),*633

main13507-F2020iM20..MXXH50;M20..MXXA50..B,E202304-202407

main13507-F2020iM20..MXXA50202106-202303

*633

main13507-F2020iM20..MXXA50201910-202106

*609

13549APLATE, CHAIN TENSIONER

main13549-25020iM20..MXXA50¥550201910-202202

*132

main13549-25020iA25..AXXA50¥550201903-202107

main13549-25020iA25..AXXH50..E¥550202106-202203

*636

main13549-F2020iA25..AXXA50;A25..AXXH50..B,G,Q202106-202303

*633

main13549-F2020iM20..MXXA50201910-202106

*609

main13549-F2020iM20..MXXA50..B,E202304-202407

13565ASPRING, CHAIN DAMPER

main13565-25010iM20..MXXA50¥220201910-202202

*132

main13565-25010iA25..AXXA50¥220201903-202107

main13565-25010iA25..AXXH50..E¥220202106-202203

*636

main13565-F2020iM20..MXXA50..G202304-202407

main13565-F2020iA25..AXXA50;A25..AXXH50..B,G,Q202106-202303

*633

main13565-F2020iM20..MXXA50201910-202106

*609

15100PUMP ASSY, OIL

main15100-24020iM20..MXXA50¥11,800201910-202202

*132

main15100-25032iA25..AXXH50¥12,600201903-202107

main15100-25032iA25..AXXH50..E¥12,600202106-202203

*636

main15100-25032iA25..AXXA50;A25..AXXH50..B,G,Q¥12,600202106-202303

(J),*633

main15100-25032iA25..AXXA50,AXXH50¥12,600202304

(J)

main15100-F0020iA25..AXXH52202304

(L)

main15100-F0020iA25..AXXA50;A25..AXXH50..B,G,Q202106-202303

(L),*633

main15100-F2030iM20..MXXA50202106-202303

*633

main15100-F2030iM20..MXXA50201910-202106

*609

main15100-F2030iM20..MXXH50;M20..MXXA50..B,E202304-202407

15104STRAINER SUB-ASSY, OIL

main15104-24010iM20..MXXA50¥1,200201910-202202

*132

main15104-25030iA25..AXXH50..E¥1,110202106-202203

*636

main15104-25030iA25..AXXA50;A25..AXXH50..B,G,Q¥1,110202106-202303

(J),*633

main15104-25030iA25..AXXA50,AXXH50¥1,110202304

(J)

main15104-25030iA25..AXXA50¥1,110201903-202107

main15104-F0020iA25..AXXA50,AXXH50202304

(L)

main15104-F0020iA25..AXXA50;A25..AXXH50..B,G,Q202106-202303

(L),*633

main15104-F2050iM20..MXXH50;M20..MXXA50..B,E202304-202407

main15104-F2050iM20..MXXA50202106-202303

*633

main15104-F2050iM20..MXXA50201910-202106

*609

15147GASKET, OIL STRAINER

main15147-25010iA25..AXXA50¥340201903-202107

main15147-25010iM20..MXXA50¥340201910-202202

*132

main15147-25010iA25..AXXA50;A25..AXXH50..B,G,Q¥340202106-202303

(J),*633

main15147-25010iA25..AXXH50..E¥340202106-202203

*636

main15147-25010iA25..AXXH52¥340202304

(J)

main15147-F2010iM20..MXXA50202106-202303

*633

main15147-F2010iM20..MXXA50201910-202106

*609

main15147-F2010iM20..MXXA50202106-202303

(L),*633

main15147-F2010iM20..MXXA50..B,E202304-202407

main15147-F2010iM20..MXXA50..G202304

(L)

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iM20..MXXA50¥660201910-202202

*132

main15163-25010iA25..AXXH50..E¥660202106-202203

*636

main15163-25010iA25..AXXA50¥660201903-202107

main15163-F2020iM20..MXXA50..G202304-202407

main15163-F2020iA25..AXXA50;A25..AXXH50..B,G,Q202106-202303

*633

main15163-F2020iM20..MXXA50201910-202106

*609

15167BRACKET, OIL PUMP

main15167-25011iA25..AXXH50..E¥740202106-202203

*636

main15167-25011iA25..AXXH52¥740202304

(J)

main15167-25011iA25..AXXA50¥740201903-202107

main15167-25011iA25..AXXA50;A25..AXXH50..B,G,Q¥740202106-202303

(J),*633

main15167-F0020iA25..AXXH52202304

(L)

main15167-F0020iA25..AXXA50;A25..AXXH50..B,G,Q202107-202303

(L),*633

90105C0340

main90105-C0340

90105C0420

main90105-C0420

9011906A23

main90119-06A23¥60

90119C0619

main90119-C0619

9155100845

main91551-00845¥100

91552G1025

main91552-G1025¥170

15 parts on this diagram · 2 diagrams in section
