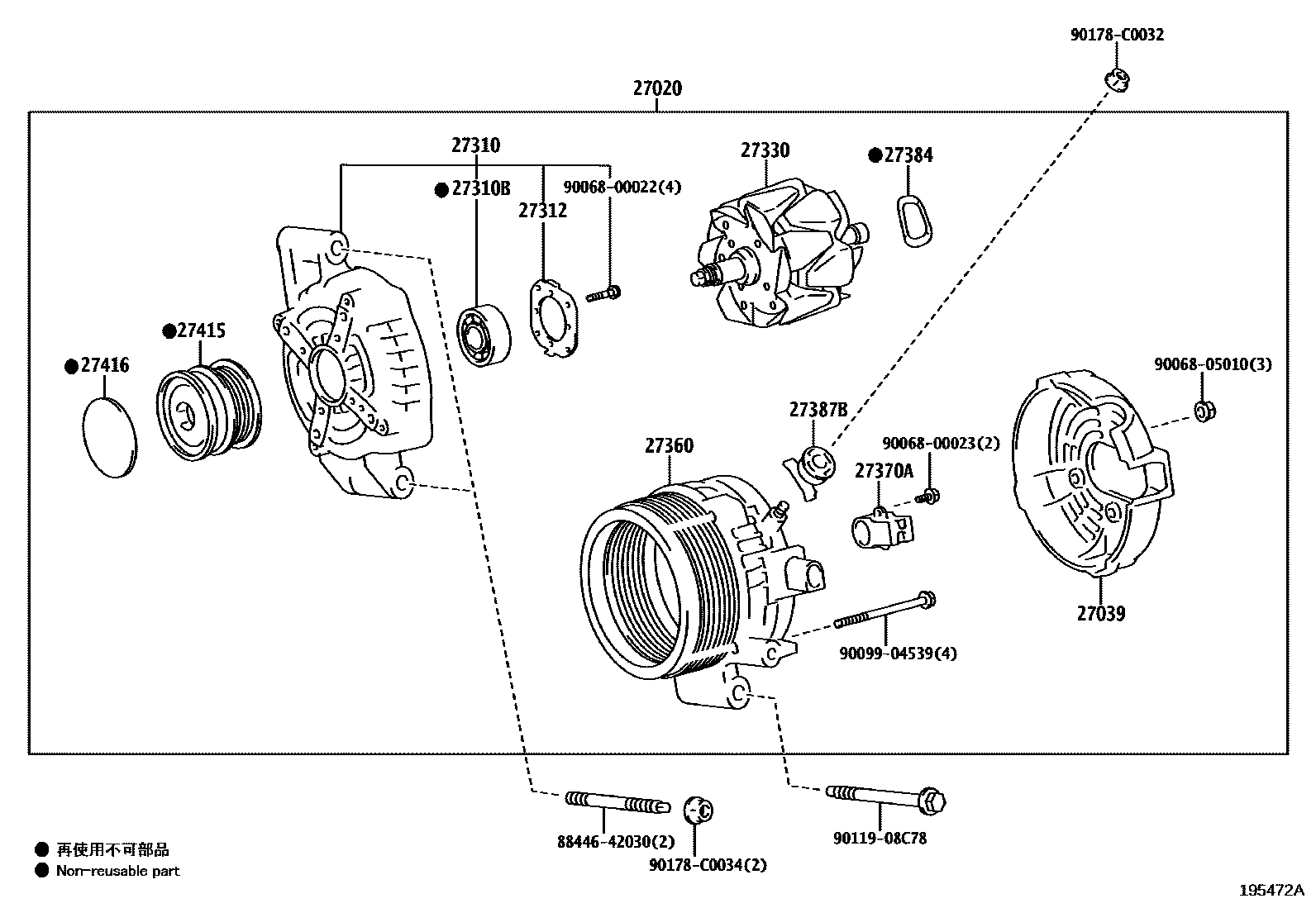

Toyota AVALON (CHINA) — ALTERNATOR

0001 112V 150A 0003 112V 150A

27020ALTERNATOR ASSY

main27060-F0030iM20..MXXA50..B,E202407

12V 150A

main27060-F0050iA25,M20..AXXA50,MXXA50201903-202407

12V 150A

27039COVER, ALTERNATOR REAR END

main27039-0P070iA25,M20..AXXA50,MXXA50201903-202407

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-F2090iA25,M20..AXXA50,MXXA50201903-202407

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033iA25,M20..AXXA50,MXXA50202110-202407

main90068-10050iA25,M20..AXXA50,MXXA50201903-202110

sub90068-10033

27312PLATE, RETAINER

main27312-0M070iA25,M20..AXXA50,MXXA50201903-202407

27330ROTOR ASSY, ALTERNATOR

main27330-0P180iA25,M20..AXXA50,MXXA50201903-202110

main27330-F2090iA25,M20..AXXA50,MXXA50202110-202407

27360COIL ASSY, ALTERNATOR

main27360-F2090iA25,M20..AXXA50,MXXA50201903-202407

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0T030iA25,M20..AXXA50,MXXA50201903-202407

27384WASHER

main27384-50030iA25,M20..AXXA50,MXXA50201903-202407

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0H110iA25,M20..AXXA50,MXXA50201903-202407

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-F0020iM20..MXXA50..B,E202407

main27415-F0030iA25,M20..AXXA50,MXXA50201903-202407

27416CAP, ALTERNATOR PULLEY

main27416-0W050iM20..MXXA50¥340201903-202303

main27416-F0010iM20..MXXA50202107-202407

8844642030BOLT, IDLE PULLEY

main88446-42030¥0

9006800022

main90068-00022

9006800023

main90068-00023

9006805010

main90068-05010

9009904539

main90099-04539¥0

9011908C78

main90119-08C78¥0

90178C0032

main90178-C0032

90178C0034

main90178-C0034

20 parts on this diagram · 2 diagrams in section
