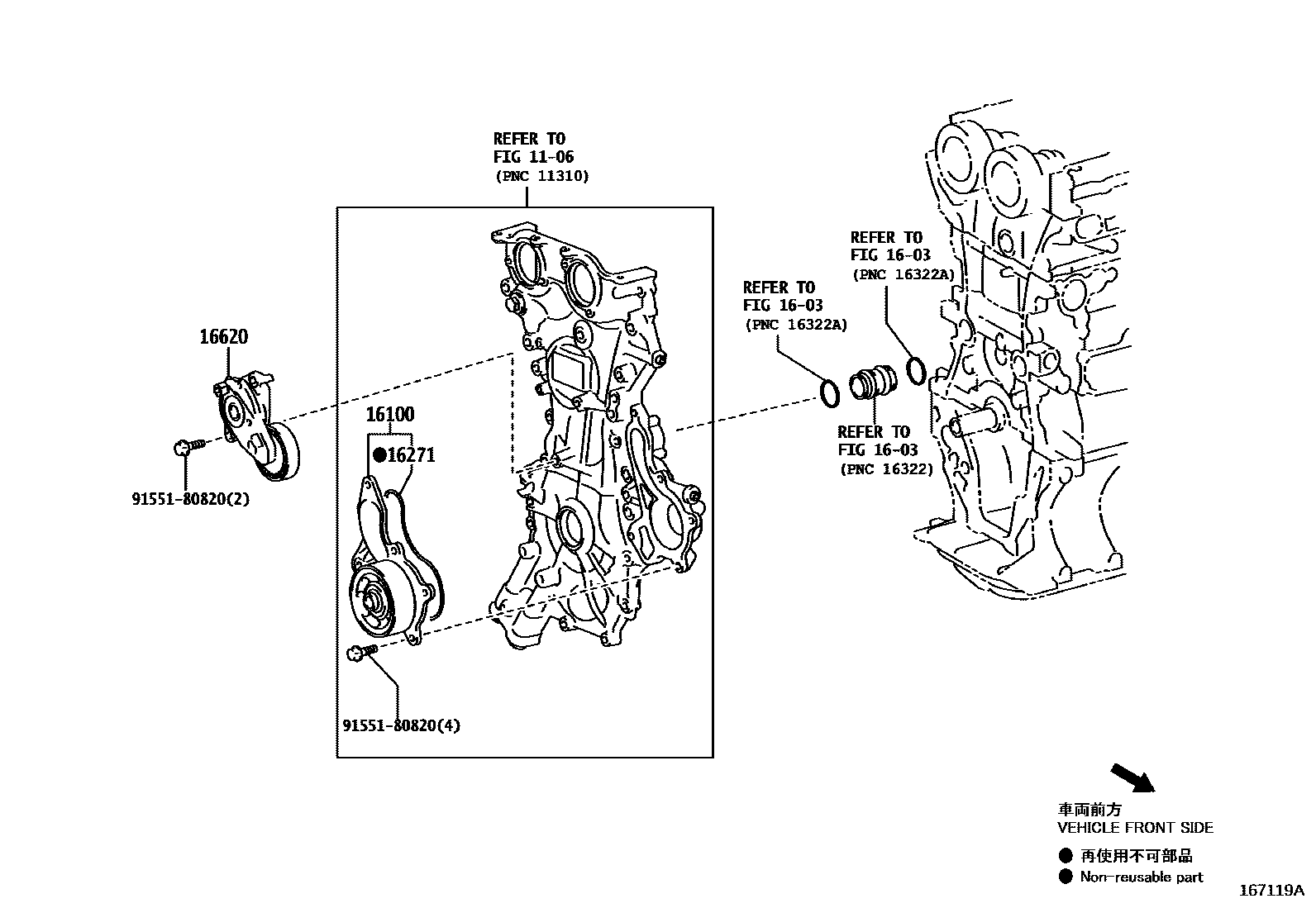

Toyota AURIS/COROLLA HB(JPP — WATER PUMP

0001 1 0002 1 0003 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-80014i8NRFTS..NRE210¥9,000201806

main161A0-39035i2ZRFXE..ZWE211¥15,000201806

main161A0-39045i2ZRFXE..ZWE219¥15,000202209

16271GASKET, WATER PUMP

main16271-37020i2ZRFXE..ZWE211¥470201806

main16271-47060i8NRFTS..NRE210¥410201806

16620TENSIONER ASSY, V-RIBBED BELT

main16620-47061i8NRFTS..NRE210¥11,200201806

9155180820

main91551-80820¥80

6 parts on this diagram · 3 diagrams in section
