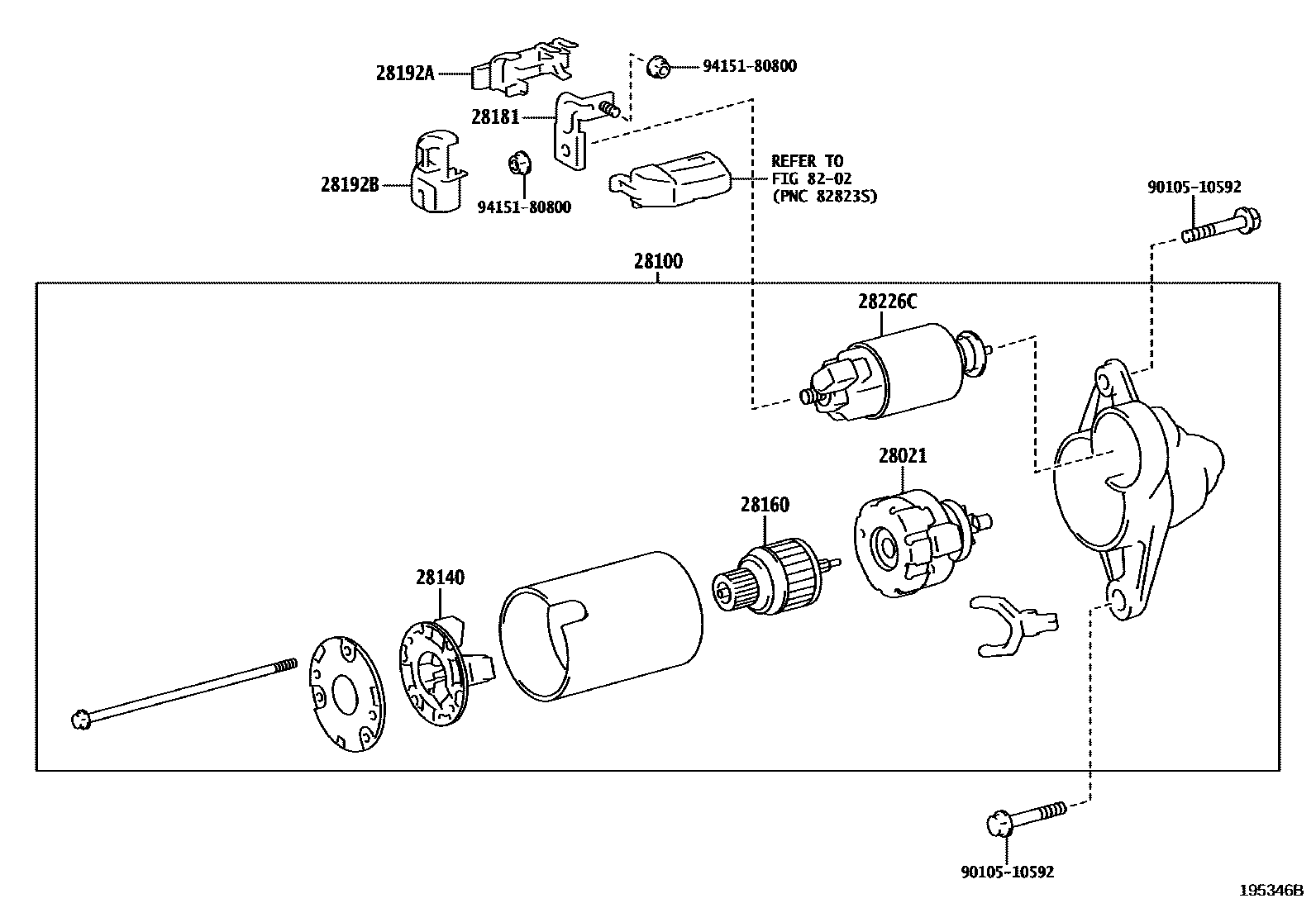

Toyota AURIS/COROLLA HB(JPP — STARTER

0001 112V 1.0KW 0002 112V 1.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-24120iM20AFKS..MZEA12..6F¥6,700201806

main28021-24120iM20AFKS..MZEA12..CVT¥6,700201806-202209

main28021-24120iM20AFKS..MZEA12..ARL¥6,700202209-202508

main28021-24120iM20AFKS..MZEA12..TAIW¥6,700202209

main28021-47170i8NRFTS..NRE210¥6,700201806

28100STARTER ASSY

main28100-24160iM20AFKS..MZEA12..TAIW¥50,900202209

12V 1.0KW

main28100-24160iM20AFKS..MZEA12..CVT¥50,900201806-202209

12V 1.0KW

main28100-24160iM20AFKS..MZEA12..6F¥50,900201806

12V 1.0KW

main28100-24160iM20AFKS..MZEA12..ARL¥50,900202209-202508

12V 1.0KW

main28100-37150i8NRFTS..NRE210¥51,000201806

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iM20AFKS..MZEA12..CVT201806-202209

main28140-21070i8NRFTS..NRE210;M20AFKS..MZEA12..6F201806

main28140-21070iM20AFKS..MZEA12..ARL202209-202508

main28140-21070iM20AFKS..MZEA12..TAIW202209

28160ARMATURE ASSY, STARTER

main28160-21070iM20AFKS..MZEA12..CVT¥8,900201806-202209

main28160-21070i8NRFTS..NRE210;M20AFKS..MZEA12..6F¥8,900201806

main28160-21070iM20AFKS..MZEA12..ARL¥8,900202209-202508

main28160-21070iM20AFKS..MZEA12..TAIW¥8,900202209

28181TERMINAL, STARTER

main28181-24010iM20AFKS..MZEA12..CVT¥1,300201806-202209

main28181-24010iM20AFKS..MZEA12..6F¥1,300201806

main28181-24010iM20AFKS..MZEA12..ARL¥1,300202209-202508

main28181-24010iM20AFKS..MZEA12..TAIW¥1,300202209

28192COVER, STARTER

main28192-47020i8NRFTS..NRE210¥380201806

28192ACOVER, STARTER, NO.1

main28192-24010iM20AFKS..MZEA12..CVT¥440201806-202209

main28192-24010iM20AFKS..MZEA12..6F¥440201806

main28192-24010iM20AFKS..MZEA12..ARL¥440202209-202508

main28192-24010iM20AFKS..MZEA12..TAIW¥440202209

28192BCOVER, STARTER, NO.2

main28192-24020iM20AFKS..MZEA12..ARL¥440202209-202508

main28192-24020iM20AFKS..MZEA12..CVT¥440201806-202209

main28192-24020iM20AFKS..MZEA12..6F¥440201806

main28192-24020iM20AFKS..MZEA12..TAIW¥440202209

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-24120iM20AFKS..MZEA12..CVT201806-202209

main28226-24120iM20AFKS..MZEA12..6F201806

main28226-24120iM20AFKS..MZEA12..ARL202209-202508

main28226-24120iM20AFKS..MZEA12..TAIW202209

main28226-37130i8NRFTS..NRE210201806

8202

9010510592

main90105-10592¥160

9415180800

main94151-80800¥80

12 parts on this diagram · 2 diagrams in section
