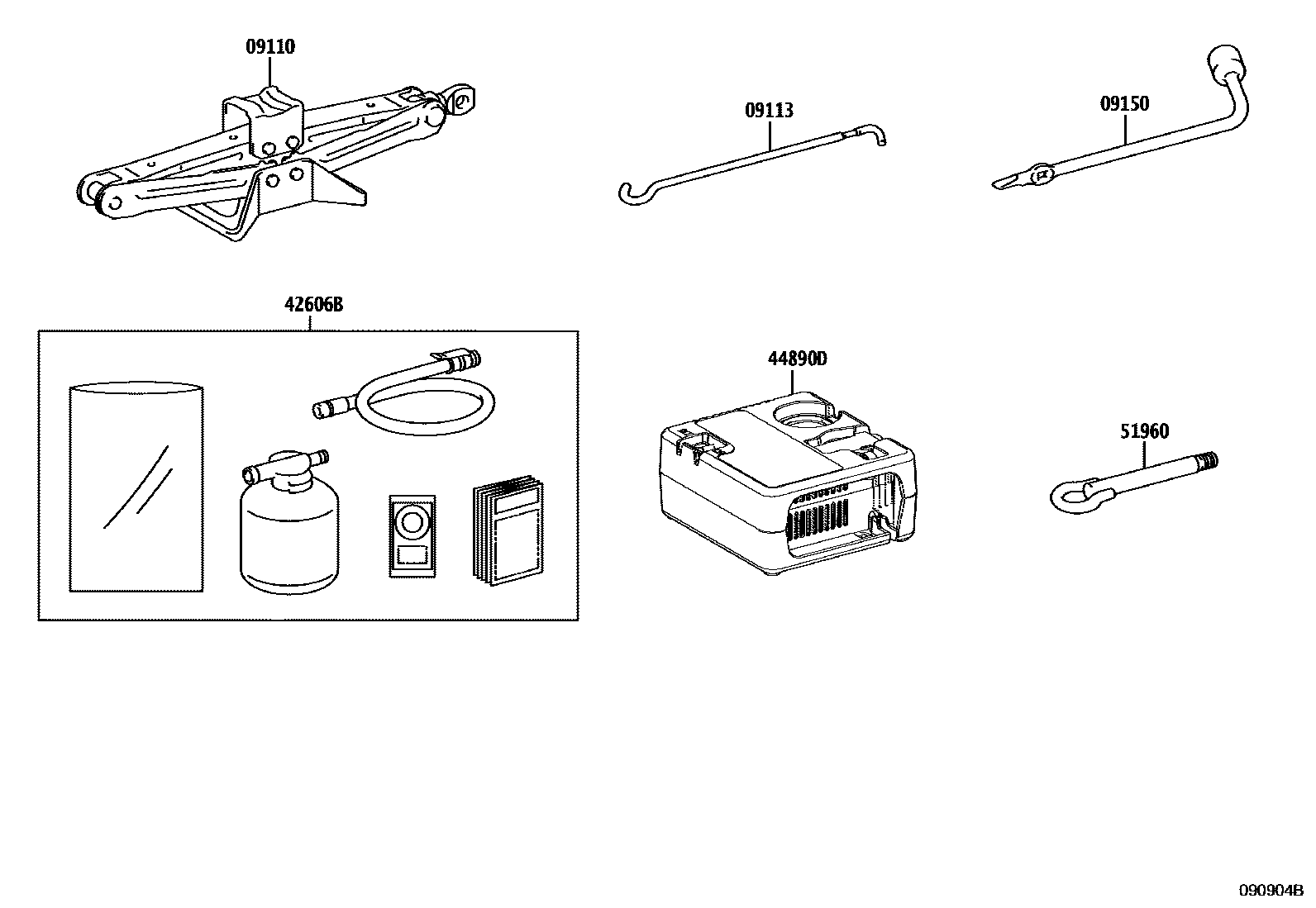

Toyota AURIS/COROLLA HB(JPP — STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09110-12120iMZEA12,ZWE211..ARL201806-202508

main09111-47050iMZEA12,NRE210..SA,TAIW¥5,900201806-202109

sub09111-47051¥5,900

main09111-47051iMZEA12,ZWE219..SA,TAIW¥5,900202110

09113HANDLE, JACK

main09113-42030iMZEA12..ARL¥550201806-202508

09150WRENCH, HUB NUT BOX

main09150-42010iMZEA12..ARL¥1,150201806-202508

42606BREPAIR KIT, TUBELESS TIRE

main42606-12040iMZEA12..TAIW201901-202209

sub42606-42080¥3,600

main42606-30011iMZEA12,ZWE211..ARL¥3,600201901-201909

sub42606-42080¥3,600

44890DCOMPRESSOR ASSY, AIR

main44890-12030iMZEA12..TAIW201901-202209

SPARE TIRE-GROUND TIRE

sub44890-42050¥7,500

51960HOOK ASSY, FRONT

main51960-12110iZWE219;MZEA12..TAIW¥1,800201806-202508

6 parts on this diagram · 2 diagrams in section
