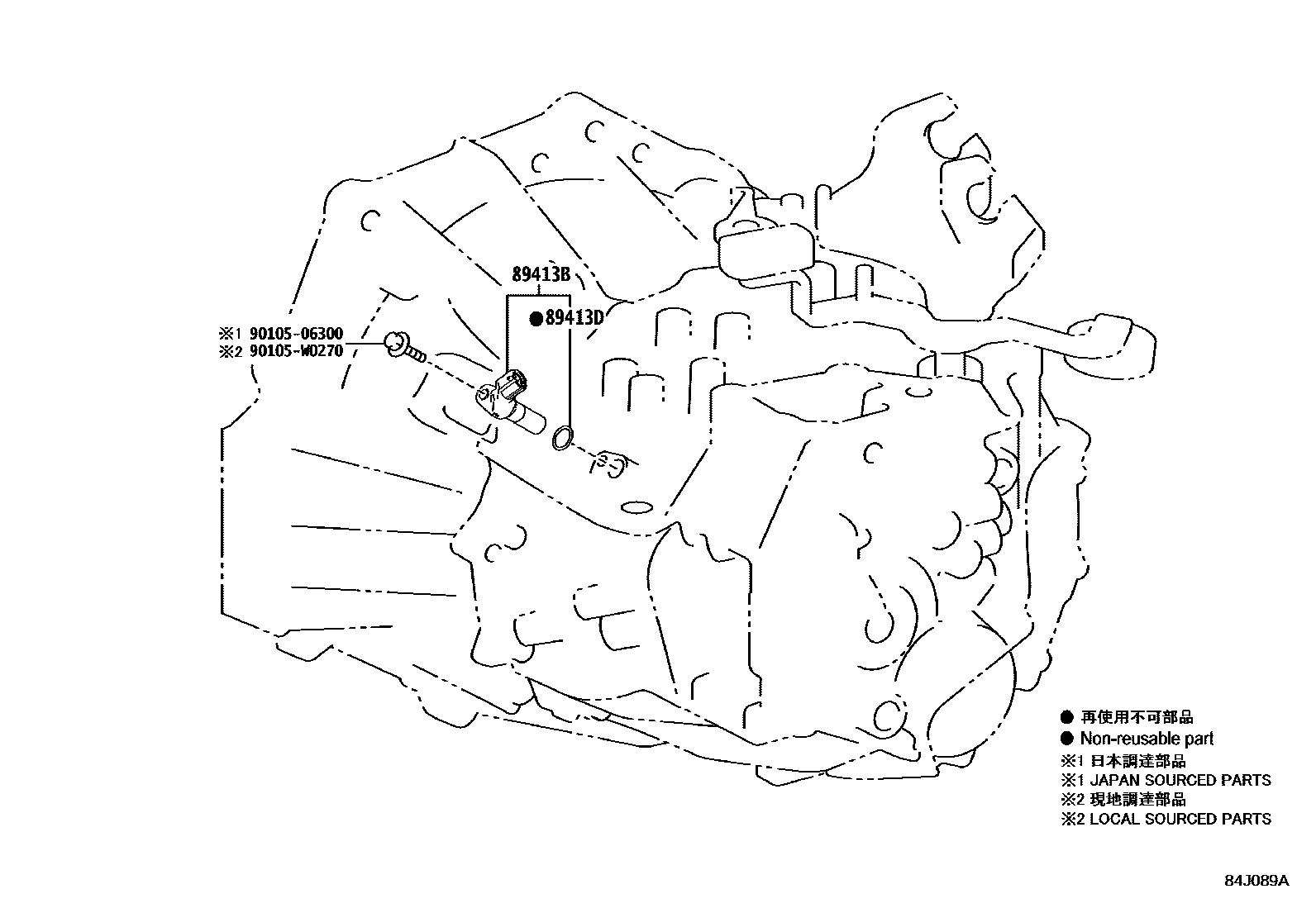

Toyota AURIS/COROLLA HB(JPP — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1EC6A 0002 1EG60 0003 1K120 0004 1K313

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-12040iMZEA12..6F201806-202102

sub89413-12041

main89413-12041iMZEA12..6F202103

main89413-22010iNRE210..6F¥4,420201806

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iNRE210..CVT¥160201806-202208

main90301-11008iMZEA12..CVT¥160202107-202208

main90301-11008iMZEA12..ARL¥160202209-202508

main90301-11008iMZEA12..TAIW¥160202209

main90301-11008iMZEA12..CVT¥160201806-202106

9010506300

main90105-06300¥60

90105W0270

main90105-W0270

4 parts on this diagram · 4 diagrams in section
