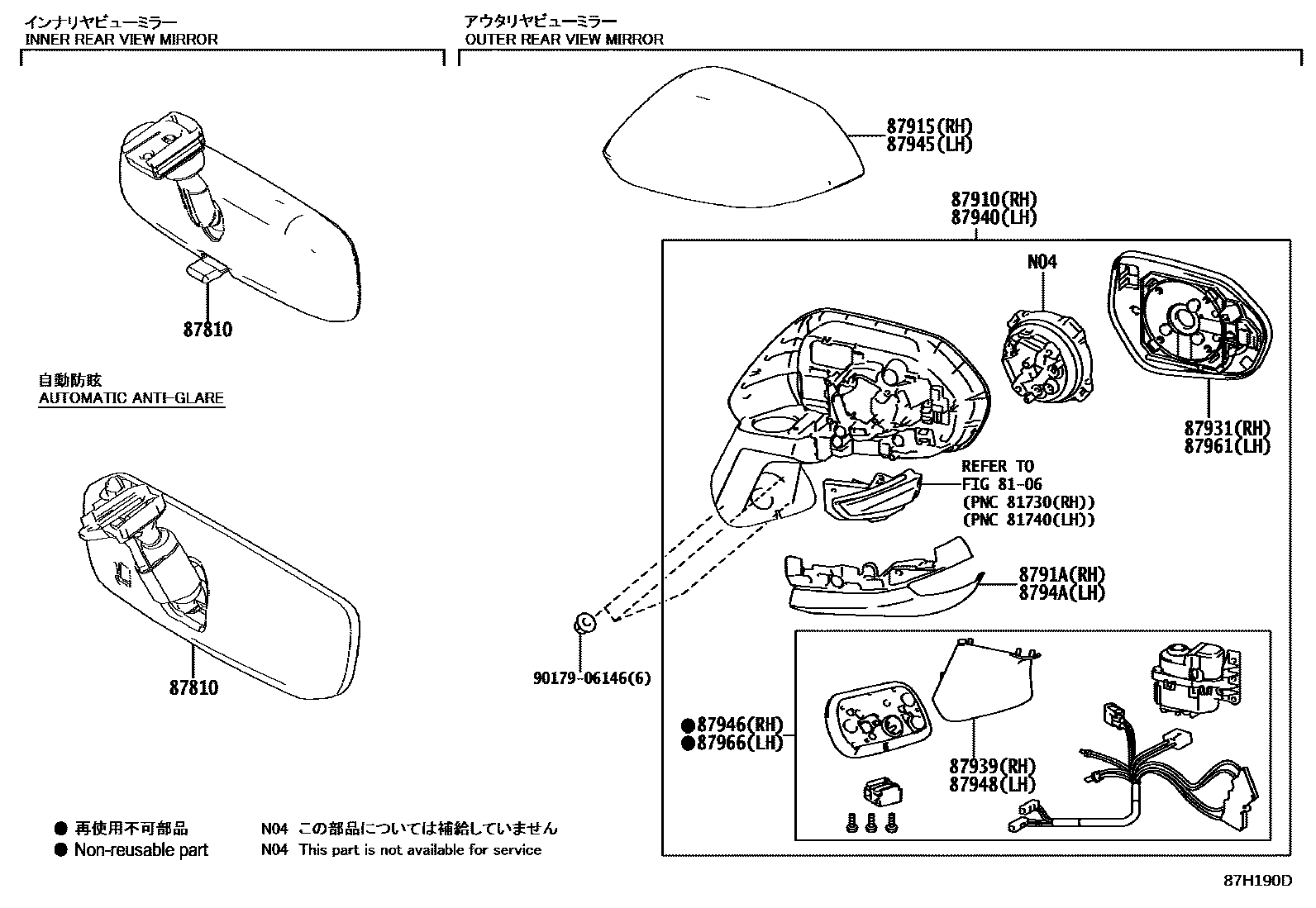

Toyota AURIS/COROLLA HB(JPP — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST),WHITE PEARL CS.,070 ,2QJ
WHITE PEARL CS.,070 ,2QJ
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),PLATINUM WHITE PEARL MC.,089
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7 ,2UF
SILVER ME.,1F7
LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),GRAY ME.,1G3
GRAY ME.,1G3
BLACKISH AGEHA GF.,221
ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218 ,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH ,2XM
WITH(NIGHT SHADE),ATTITUDE BLACK MC.,040 ,1F7 ,218
BODY COLOR-TWO-TONES,ATTITUDE BLACK MC.,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH ,2XM
ATTITUDE BLACK MC.,040 ,089 ,1F7 ,1G3 ,218 ,2PS ,2QZ ,2RC ,2UF ,2XM ,3U9 ,4Y8 ,8W7
BODY COLOR-TWO-TONES,ATTITUDE BLACK MC.,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH
ATTITUDE BLACK MC.,040 ,1F7 ,218 ,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH ,2XM
ATTITUDE BLACK MC.,218 ,2PS ,2QZ ,2RC ,2UF ,2XM
SCARLET ME.,2UG ,3U4
LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST),SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,3U9
LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),EMOTIONAL RED 3,3U9
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),EMOTIONAL RED 3,3U9
ORANGE M.M.,4Y8
LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST),OXIDE BRONZE ME.,2UD ,6X1
OXIDE BRONZE ME.,2UD ,6X1
CYAN METALLIC,2UH ,8W9
DK.BLUE M.M.,8W7
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST),WHITE PEARL CS.,070 ,2QJ
WHITE PEARL CS.,070 ,2QJ
SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),PLATINUM WHITE PEARL MC.,089
LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),GRAY ME.,1G3
LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),GRAY ME.,1G3
BLACKISH AGEHA GF.,221
BODY COLOR-TWO-TONES,ATTITUDE BLACK MC.,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH ,2XM
ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218 ,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH ,2XM
WITH(NIGHT SHADE),ATTITUDE BLACK MC.,040 ,1F7 ,218
BODY COLOR-TWO-TONES,ATTITUDE BLACK MC.,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH
ATTITUDE BLACK MC.,040 ,1F7 ,218 ,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH ,2XM
ATTITUDE BLACK MC.,218 ,2PS ,2QZ ,2RC ,2UF ,2XM
ATTITUDE BLACK MC.,040 ,089 ,1F7 ,1G3 ,218 ,2PS ,2QZ ,2RC ,2UF ,2XM ,3U9 ,4Y8 ,8W7
LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST),SCARLET ME.,2UG ,3U4
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,3U9
LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),EMOTIONAL RED 3,3U9
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA),EMOTIONAL RED 3,3U9
ORANGE M.M.,4Y8
LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST),OXIDE BRONZE ME.,2UD ,6X1
OXIDE BRONZE ME.,2UD ,6X1
CYAN METALLIC,2UH ,8W9
DK.BLUE M.M.,8W7
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9017906146
15 parts on this diagram · 1 diagram in section
