Toyota AURIS/COROLLA HB(JPP — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-12680iMZEA12,NRE210,ZWE211¥1,570201806-202102

main53410-12740iMZEA12..ARL¥1,570202102-202508

53420HINGE ASSY, HOOD, LH

main53420-12670iMZEA12,NRE210,ZWE211¥1,570201806-202102

main53420-12730iMZEA12,NRE210,ZWE211¥1,570202102-202508

53440DSUPPORT ASSY, HOOD

main53440-12220iMZEA12..6F;NRE210,ZWE211¥1,090201806-202508

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iMZEA12..CVT¥220201806-202508

53452HOLDER, HOOD STAY

main53452-12130iMZEA12,NRE210,ZWE211¥340201806-202102

main53452-15020iMZEA12..6F;NRE210,ZWE211¥340202102-202508

53510LOCK ASSY, HOOD

main53510-12B90iMZEA12..TAIW201806-202102

main53510-12B91iMZEA12..TAIW202102-202209

main53510-12C10iMZEA12,ZWE211..ARL¥2,010201806-202102

main53510-12C11iZWE211;MZEA12..6F¥2,010202102-202508

main53510-12C20iZWE211¥2,930201806-202102

ANTI-THEFT SYSTEM-IMMOBILIZER & SIREN

main53510-12C20iNRE210¥2,930201806-202102

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN)

main53510-12C70iZWE211¥3,230202102

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN)

main53510-12C70iZWE211¥3,230202102

ANTI-THEFT SYSTEM-IMMOBILIZER & SIREN

main53510-12C71iMZEA12..D¥2,930202209-202508

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN)

main53510-12C71iZWE219¥2,930202209

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iMZEA12..CVT¥90201806-202508

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iMZEA12..ARL¥90201806-202508

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iMZEA12,NRE210,ZWE211¥120201806-202102

WD=1.6,CW=12

main90506-18067iMZEA12..CVT¥90202102-202508

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-33010iMZEA12..6F;NRE210,ZWE211¥230201806-202508

53579CAP, HOOD LOCK NUT

main53579-50010iMZEA12..CVT¥100201806-202508

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iNRE210,ZWE211201806-202508

BLACK,TRIM2#,3#

main53601-30100-C0iNRE210,ZWE211201806-202508

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12720iMZEA12..TAIW201806-202209

main53630-12721iMZEA12..TAIW202209

main53630-12730iMZEA12..6F;NRE210,ZWE211¥1,090201806-202209

main53630-12731iZWE219¥990202209-202508

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iMZEA12..CVT¥80201806-202508

9011906A15

main90119-06A15¥60

9155180820

main91551-80820¥80

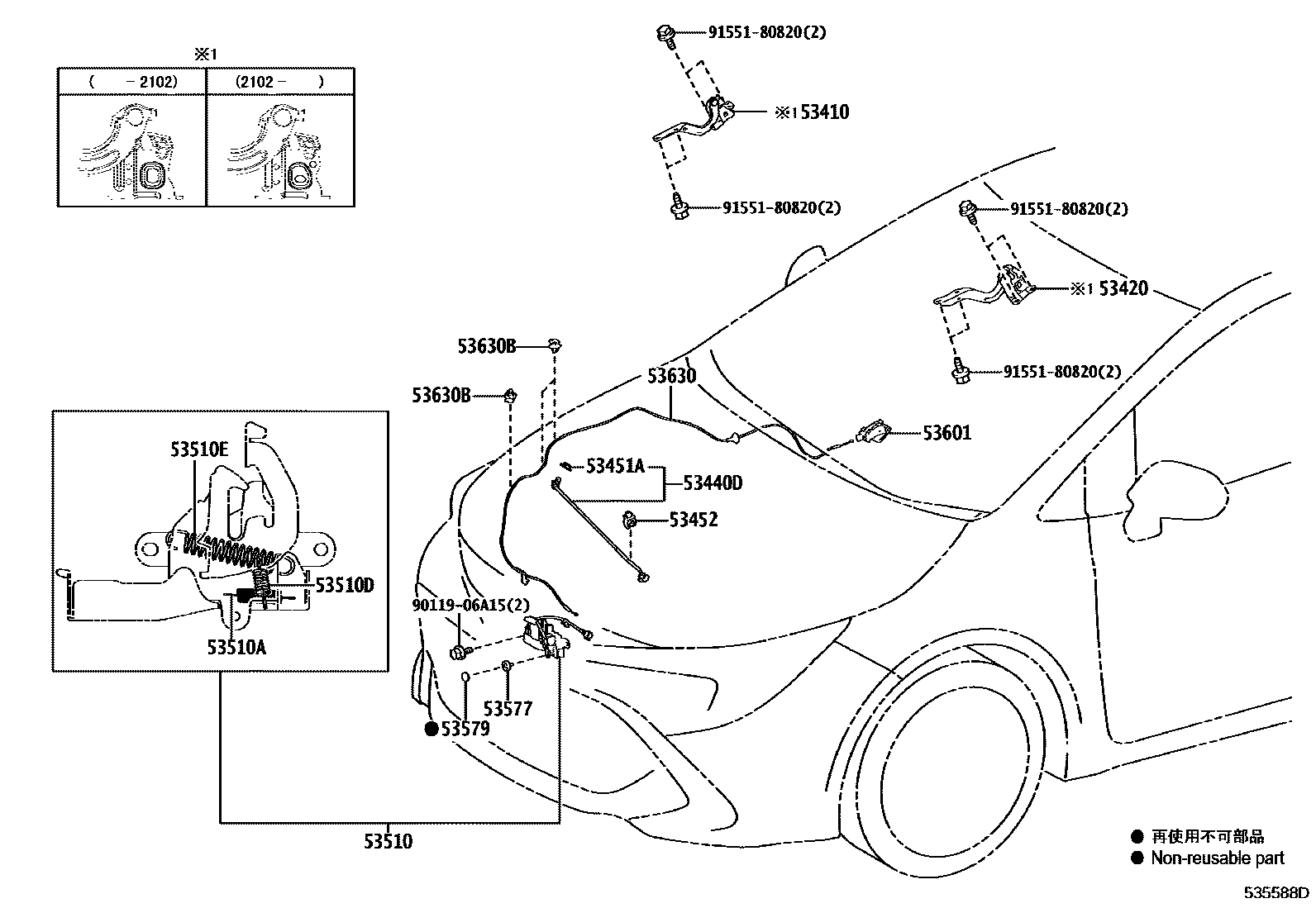

16 parts on this diagram · 2 diagrams in section
