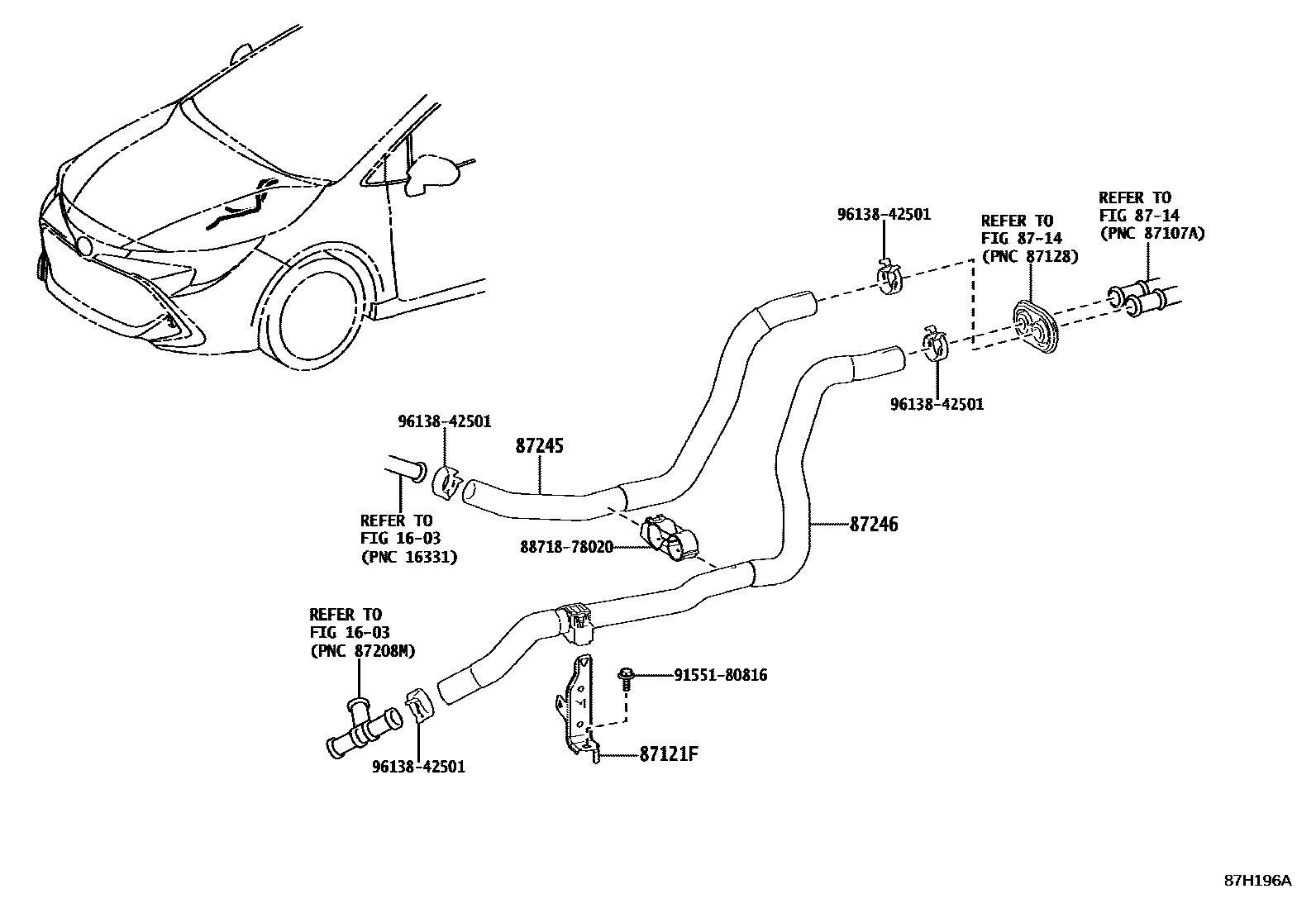

Toyota AURIS/COROLLA HB(JPP — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

1603

87121FBRACKET, HEATER

main87121-10020iNRE210..6F201806

8714

87245HOSE, HEATER WATER, INLET

main87209-12640iMZEA12..ARL¥2,140202209-202508

main87209-12640iMZEA12..CVT¥2,140201806-202209

main87209-12640iMZEA12..6F¥2,140201806

main87209-12640iMZEA12..TAIW¥2,140202209

main87209-47010iZWE219202209

main87245-10470iNRE210¥1,940201806

main87245-47370iZWE211¥1,690201806

87246HOSE, HEATER WATER, OUTLET

main87209-10330iNRE210..CVT¥2,650201806

main87209-10350iNRE210..6F¥2,600201806

main87209-12710iMZEA12..6F¥1,250201806

main87209-12710iMZEA12..CVT¥1,250201806-202209

main87209-12710iMZEA12..ARL¥1,250202209-202508

main87209-12710iMZEA12..TAIW¥1,250202209

main87209-47030iZWE219202209

main87245-47340iZWE211¥1,150201806

8871878020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-78020

9155180816

main91551-80816¥80

9613842501

main96138-42501¥180

8 parts on this diagram · 5 diagrams in section
