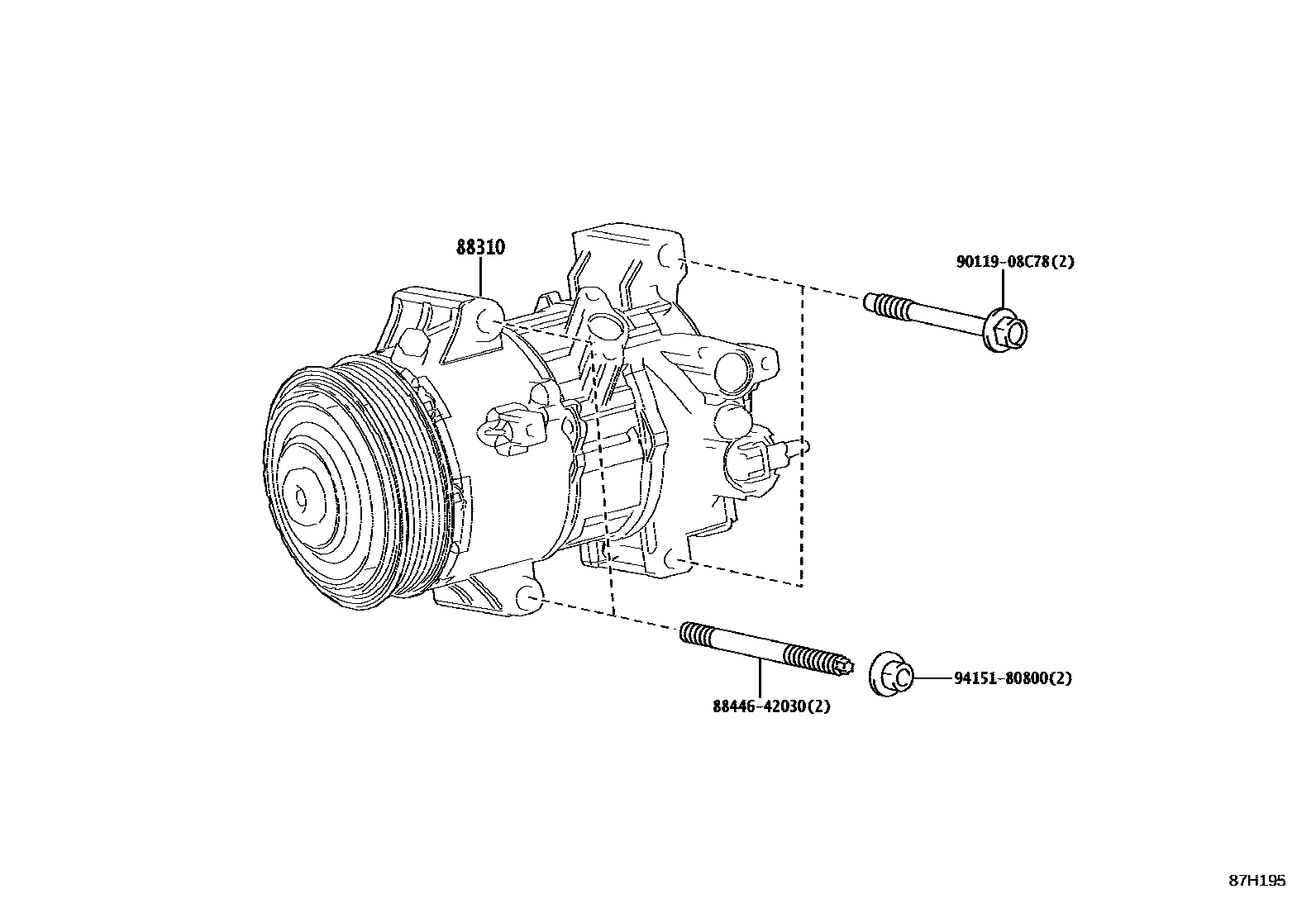

Toyota AURIS/COROLLA HB(JPP — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-10630iNRE210201806

main88310-12B10iMZEA12..ARL202404-202508

main88310-12B20iMZEA12..ARL201806-202404

8844642030BOLT, IDLE PULLEY

main88446-42030¥0

9011908C78

main90119-08C78¥0

9415180800

main94151-80800¥80

4 parts on this diagram · 3 diagrams in section
