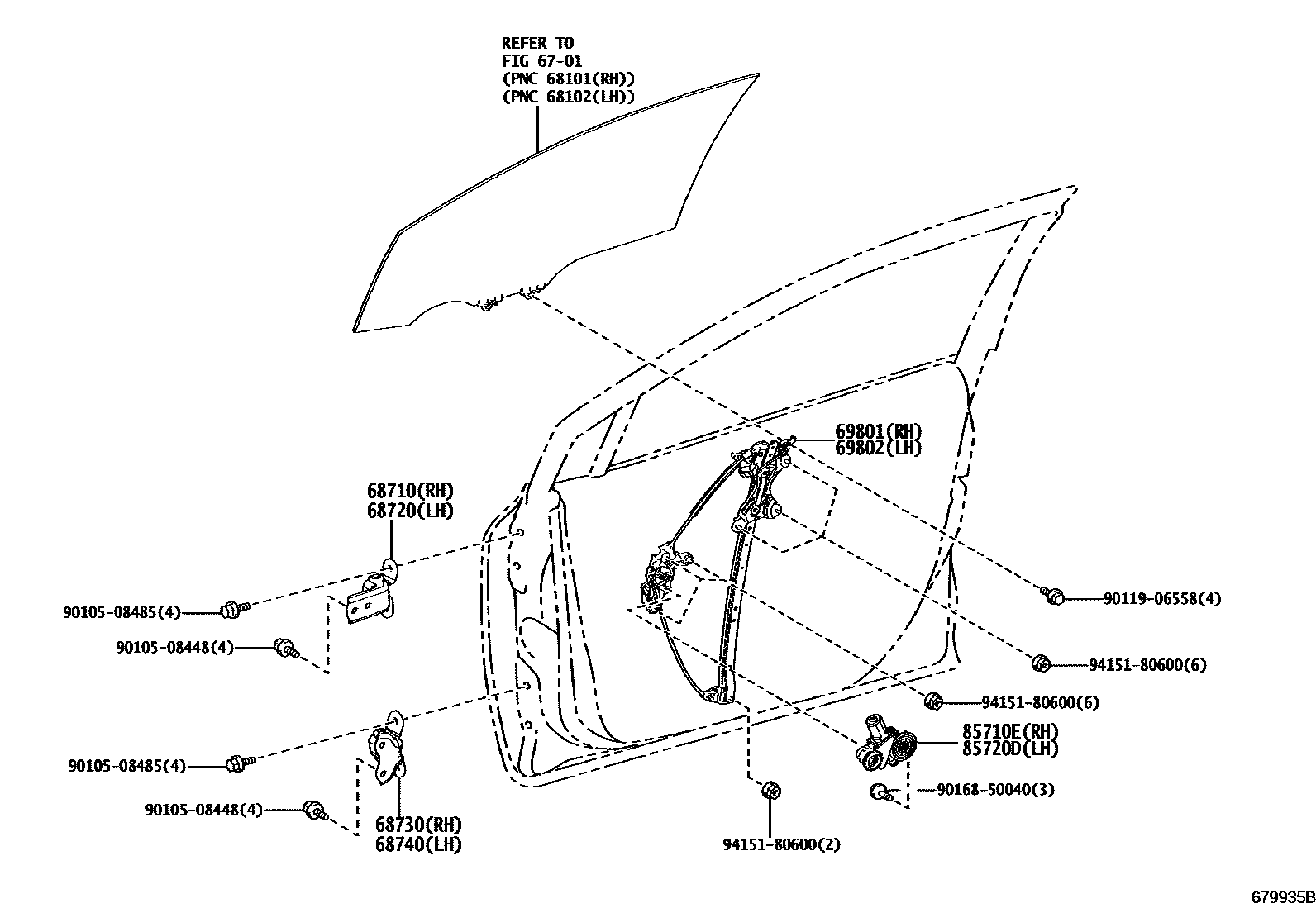

Toyota AURIS/COROLLA HB(JPP — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iMZEA12..CVT¥2,050201806-202508

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iMZEA12..CVT¥2,050201806-202508

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iMZEA12..CVT¥2,240201806-202508

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iMZEA12..CVT¥2,240201806-202508

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12270iMZEA12,NRE210,ZWE211¥6,100201806-201812

sub69801-12271¥5,200

main69801-12271iMZEA12,NRE210,ZWE211¥5,200201812-202002

sub69801-12272¥4,330

main69801-12272iMZEA12,NRE210,ZWE211¥4,330202003-202104

sub69801-12273¥3,940

main69801-12273iMZEA12..CVT¥3,940202105-202508

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12270iMZEA12,NRE210,ZWE211¥6,100201806-201812

sub69802-12271¥5,200

main69802-12271iMZEA12,NRE210,ZWE211¥5,200201812-202002

sub69802-12272¥4,330

main69802-12272iMZEA12,NRE210,ZWE211¥4,330202003-202104

sub69802-12273¥3,940

main69802-12273iMZEA12..CVT¥3,940202105-202508

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12530iMZEA12..CVT¥20,900201806-202209

main85710-12531iMZEA12,ZWE219¥12,600202209-202305

main85710-12560iMZEA12..ARL¥12,600202306-202508

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12520iMZEA12..CVT¥20,900201806-202209

main85720-12521iMZEA12,ZWE219¥12,600202209-202305

main85720-12570iMZEA12..ARL¥12,600202306-202508

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906558

main90119-06558¥70

9016850040

main90168-50040¥70

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
