Toyota AURIS/COROLLA HB(JPP — CLEARANCE & BACK SONAR

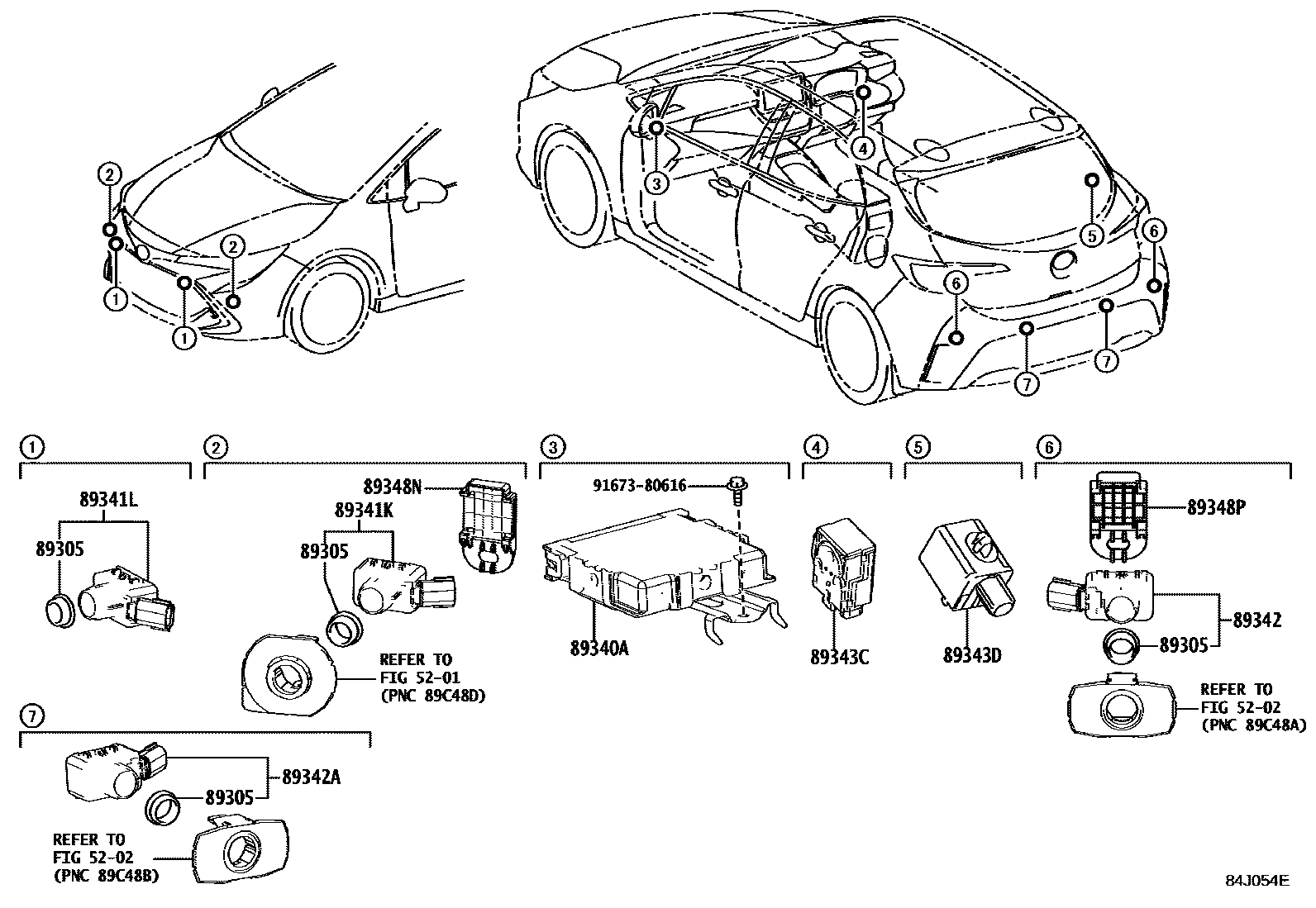

Parts diagram
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
main89305-47010i¥90202107-202209
main89305-52010i¥90202209
CLEARANCE & BACK SONAR-WITHOUT
main89305-52010i¥90202209-202508
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-12170i¥24,800202107-202209
main89340-12580i¥14,700202209-202508
*614
main89340-12580i¥14,700202209
Z PACKAGE,*614
main89340-12580i¥14,700202209
CLEARANCE & BACK SONAR-WITHOUT,*614
main89340-12770i202209
*614
main89340-12770i202209
Z PACKAGE&CLEARANCE & BACK SONAR-WITHOUT,*614
main89340-12770i202209
CLEARANCE & BACK SONAR-WITHOUT,*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-33220-A0i202107-202209
SUPER WHITE 2,040
main89341-33220-A1i202107-202209
PLATINUM WHITE PEARL MC.,089 ,2PS
main89341-33220-B0i202107-202209
SILVER ME.,1F7 ,2UF
main89341-33220-C0i202107-202209
ATTITUDE BLACK MC.,218
main89341-33220-C1i202107-202209
BLACKISH AGEHA GF.,221
main89341-33220-J8i202107-202209
CYAN METALLIC,2UH ,8W9
main89341-33220-P2i202107-202209
GRAY ME.,1G3 ,2QZ
main89341-33220-X9i202107-202209
EMOTIONAL RED 3,2XM ,3U9
main89341-K0060-A0i202209
CLEARANCE & BACK SONAR-WITHOUT,SUPER WHITE 2,040
sub89341-50080¥6,000
main89341-K0060-A0i202209-202508
SUPER WHITE 2,040
sub89341-50080¥6,000
main89341-K0060-A4i202209-202508
PLATINUM WHITE PEARL MC.,089 ,2PS
sub89341-50080¥6,000
main89341-K0060-A4i202209
CLEARANCE & BACK SONAR-WITHOUT,PLATINUM WHITE PEARL MC.,089 ,2PS
sub89341-50080¥6,000
main89341-K0060-B0i202209
CLEARANCE & BACK SONAR-WITHOUT,SILVER ME.,1F7 ,2UF
sub89341-50080¥6,000
main89341-K0060-B0i202209-202508
SILVER ME.,1F7 ,2UF
sub89341-50080¥6,000
main89341-K0060-B1i202209
CLEARANCE & BACK SONAR-WITHOUT,GRAY ME.,1G3 ,2QZ
sub89341-50080¥6,000
main89341-K0060-B1i202209-202508
GRAY ME.,1G3 ,2QZ
sub89341-50080¥6,000
main89341-K0060-C5i202209
CLEARANCE & BACK SONAR-WITHOUT,ATTITUDE BLACK MC.,218
sub89341-50080¥6,000
main89341-K0060-C5i202209-202508
ATTITUDE BLACK MC.,218
sub89341-50080¥6,000
main89341-K0060-J0i202209
CLEARANCE & BACK SONAR-WITHOUT,DK.BLUE M.M.,2RC ,8W7
sub89341-50080¥6,000
main89341-K0060-J0i202209-202508
DK.BLUE M.M.,2RC ,8W7
sub89341-50080¥6,000
main89341-K0060-L7i202209-202508
ORANGE M.M.,4Y8
sub89341-50080¥6,000
main89341-K0060-L7i202209
CLEARANCE & BACK SONAR-WITHOUT,ORANGE M.M.,4Y8
sub89341-50080¥6,000
main89341-K0060-X1i202209-202508
EMOTIONAL RED 3,2XM ,3U9
sub89341-50080¥6,000
main89341-K0060-X1i202209
CLEARANCE & BACK SONAR-WITHOUT,EMOTIONAL RED 3,2XM ,3U9
sub89341-50080¥6,000
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-33220-C4i202107-202209
MAT BLACK
main89341-K0060-C1i202209-202508
BLACK
sub89341-50080¥6,000
main89341-K0060-C1i202209
CLEARANCE & BACK SONAR-WITHOUT,BLACK
sub89341-50080¥6,000
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-33220-A0i202107-202209
SUPER WHITE 2,040
main89341-33220-A1i202107-202209
PLATINUM WHITE PEARL MC.,089 ,2PS
main89341-33220-B0i202107-202209
SILVER ME.,1F7 ,2UF
main89341-33220-C0i202107-202209
ATTITUDE BLACK MC.,218
main89341-33220-C1i202107-202209
BLACKISH AGEHA GF.,221
main89341-33220-J8i202107-202209
CYAN METALLIC,2UH ,8W9
main89341-33220-P2i202107-202209
GRAY ME.,1G3 ,2QZ
main89341-33220-X9i202107-202209
EMOTIONAL RED 3,2XM ,3U9
main89341-K0060-A0i202209-202508
SUPER WHITE 2,040
sub89341-50080¥6,000
main89341-K0060-A0i202209
CLEARANCE & BACK SONAR-WITHOUT,SUPER WHITE 2,040
sub89341-50080¥6,000
main89341-K0060-A4i202209-202508
PLATINUM WHITE PEARL MC.,089 ,2PS
sub89341-50080¥6,000
main89341-K0060-A4i202209
CLEARANCE & BACK SONAR-WITHOUT,PLATINUM WHITE PEARL MC.,089 ,2PS
sub89341-50080¥6,000
main89341-K0060-B0i202209-202508
SILVER ME.,1F7 ,2UF
sub89341-50080¥6,000
main89341-K0060-B0i202209
CLEARANCE & BACK SONAR-WITHOUT,SILVER ME.,1F7 ,2UF
sub89341-50080¥6,000
main89341-K0060-B1i202209-202508
GRAY ME.,1G3 ,2QZ
sub89341-50080¥6,000
main89341-K0060-B1i202209
CLEARANCE & BACK SONAR-WITHOUT,GRAY ME.,1G3 ,2QZ
sub89341-50080¥6,000
main89341-K0060-C5i202209-202508
ATTITUDE BLACK MC.,218
sub89341-50080¥6,000
main89341-K0060-C5i202209
CLEARANCE & BACK SONAR-WITHOUT,ATTITUDE BLACK MC.,218
sub89341-50080¥6,000
main89341-K0060-J0i202209
CLEARANCE & BACK SONAR-WITHOUT,DK.BLUE M.M.,2RC ,8W7
sub89341-50080¥6,000
main89341-K0060-J0i202209-202508
DK.BLUE M.M.,2RC ,8W7
sub89341-50080¥6,000
main89341-K0060-L7i202209
CLEARANCE & BACK SONAR-WITHOUT,ORANGE M.M.,4Y8
sub89341-50080¥6,000
main89341-K0060-L7i202209-202508
ORANGE M.M.,4Y8
sub89341-50080¥6,000
main89341-K0060-X1i202209
CLEARANCE & BACK SONAR-WITHOUT,EMOTIONAL RED 3,2XM ,3U9
sub89341-50080¥6,000
main89341-K0060-X1i202209-202508
EMOTIONAL RED 3,2XM ,3U9
sub89341-50080¥6,000
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-33220-A0i202107-202209
SUPER WHITE 2,040
main89341-33220-A1i202107-202209
PLATINUM WHITE PEARL MC.,089 ,2PS
main89341-33220-B0i202107-202209
SILVER ME.,1F7 ,2UF
main89341-33220-C0i202107-202209
ATTITUDE BLACK MC.,218
main89341-33220-C1i202107-202209
BLACKISH AGEHA GF.,221
main89341-33220-J8i202107-202209
CYAN METALLIC,2UH ,8W9
main89341-33220-P2i202107-202209
GRAY ME.,1G3 ,2QZ
main89341-33220-X9i202107-202209
EMOTIONAL RED 3,2XM ,3U9
main89341-K0060-A0i202209
CLEARANCE & BACK SONAR-WITHOUT,SUPER WHITE 2,040
sub89341-50080¥6,000
main89341-K0060-A0i202209-202508
SUPER WHITE 2,040
sub89341-50080¥6,000
main89341-K0060-A4i202209-202508
PLATINUM WHITE PEARL MC.,089 ,2PS
sub89341-50080¥6,000
main89341-K0060-A4i202209
CLEARANCE & BACK SONAR-WITHOUT,PLATINUM WHITE PEARL MC.,089 ,2PS
sub89341-50080¥6,000
main89341-K0060-B0i202209-202508
SILVER ME.,1F7 ,2UF
sub89341-50080¥6,000
main89341-K0060-B0i202209
CLEARANCE & BACK SONAR-WITHOUT,SILVER ME.,1F7 ,2UF
sub89341-50080¥6,000
main89341-K0060-B1i202209-202508
GRAY ME.,1G3 ,2QZ
sub89341-50080¥6,000
main89341-K0060-B1i202209
CLEARANCE & BACK SONAR-WITHOUT,GRAY ME.,1G3 ,2QZ
sub89341-50080¥6,000
main89341-K0060-C5i202209-202508
ATTITUDE BLACK MC.,218
sub89341-50080¥6,000
main89341-K0060-C5i202209
CLEARANCE & BACK SONAR-WITHOUT,ATTITUDE BLACK MC.,218
sub89341-50080¥6,000
main89341-K0060-J0i202209-202508
DK.BLUE M.M.,2RC ,8W7
sub89341-50080¥6,000
main89341-K0060-J0i202209
CLEARANCE & BACK SONAR-WITHOUT,DK.BLUE M.M.,2RC ,8W7
sub89341-50080¥6,000
main89341-K0060-L7i202209
CLEARANCE & BACK SONAR-WITHOUT,ORANGE M.M.,4Y8
sub89341-50080¥6,000
main89341-K0060-L7i202209-202508
ORANGE M.M.,4Y8
sub89341-50080¥6,000
main89341-K0060-X1i202209-202508
EMOTIONAL RED 3,2XM ,3U9
sub89341-50080¥6,000
main89341-K0060-X1i202209
CLEARANCE & BACK SONAR-WITHOUT,EMOTIONAL RED 3,2XM ,3U9
sub89341-50080¥6,000
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-48010i¥1,850202107-202209
89343DBUZZER, CLEARANCE WARNING, NO.2
main89747-30040i¥2,900202107-202209
89348NCLIP, ULTRASONIC SENSOR, NO.1
main89348-50220i202209
CLEARANCE & BACK SONAR-WITHOUT
main89348-50220i202209-202508
main89348-58130i¥0202107-202209
89348PCLIP, ULTRASONIC SENSOR, NO.2
main89348-50220i202209
CLEARANCE & BACK SONAR-WITHOUT
main89348-50220i202209-202508
main89348-58130i¥0202107-202209
9167380616
main91673-80616¥60

13 parts on this diagram · 1 diagram in section
