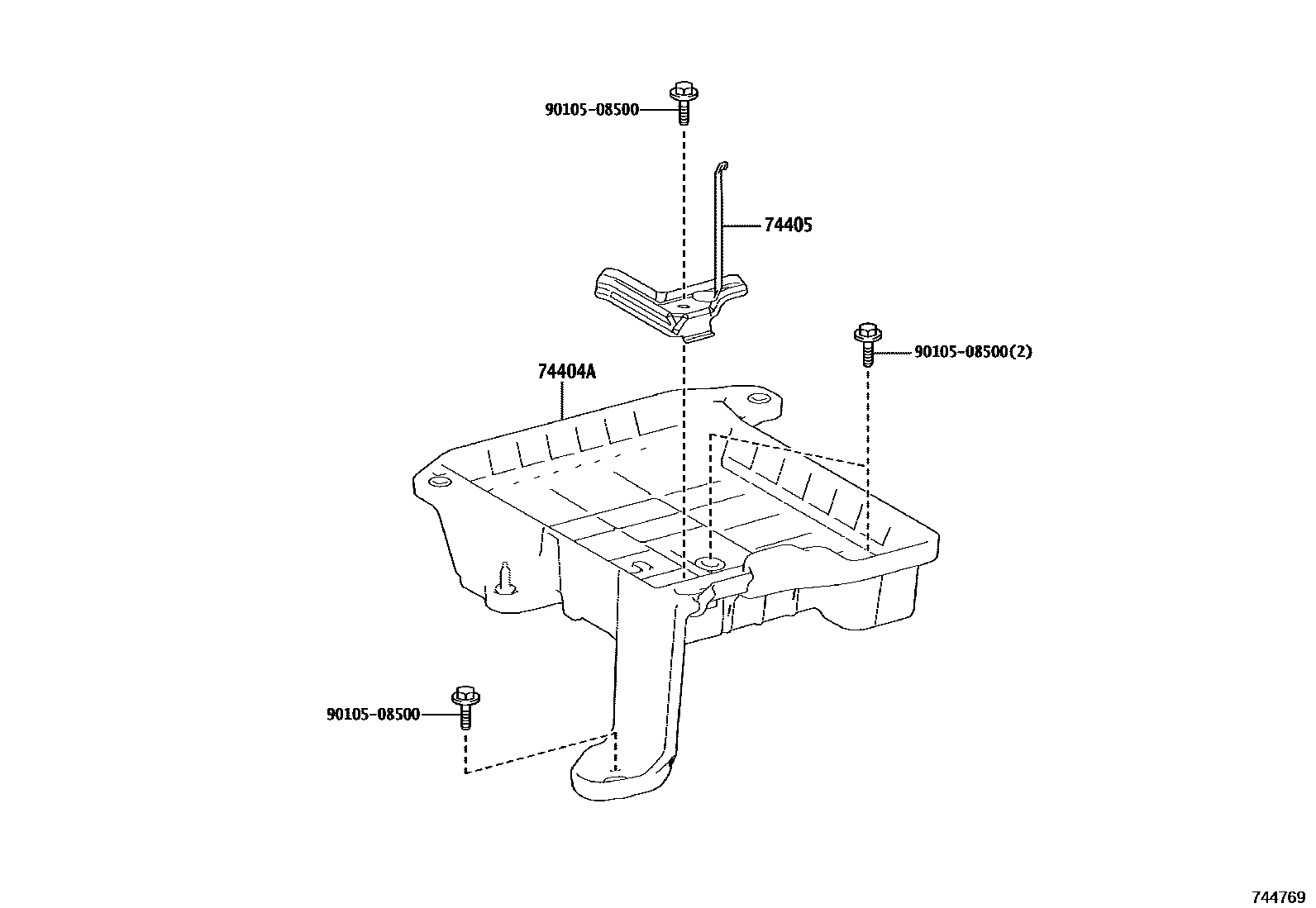

Toyota AURIS/COROLLA HB(JPP — BATTERY CARRIER

0001 1 0002 1 0003 1 0004 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-10211iNRE210¥8,200201806

main74404-12560iMZEA12201806-202107

main74404-12600iMZEA12..TAIW202209

main74404-12600iMZEA12..CVT202107-202209

main74404-12600iMZEA12..6F202107

main74404-12600iMZEA12..ARL202209-202508

main74404-12610iZWE219¥4,720202209

main74404-47030iZWE211¥4,720201806

74405CLAMP SUB-ASSY, BATTERY, NO.2

main74405-76021iMZEA12..CVT¥1,480201806-202209

main74405-76021iNRE210;MZEA12..6F¥1,480201806

main74405-76021iMZEA12..ARL¥1,480202209-202508

main74405-76021iMZEA12..TAIW¥1,480202209

9010508500

main90105-08500¥100

3 parts on this diagram · 4 diagrams in section
