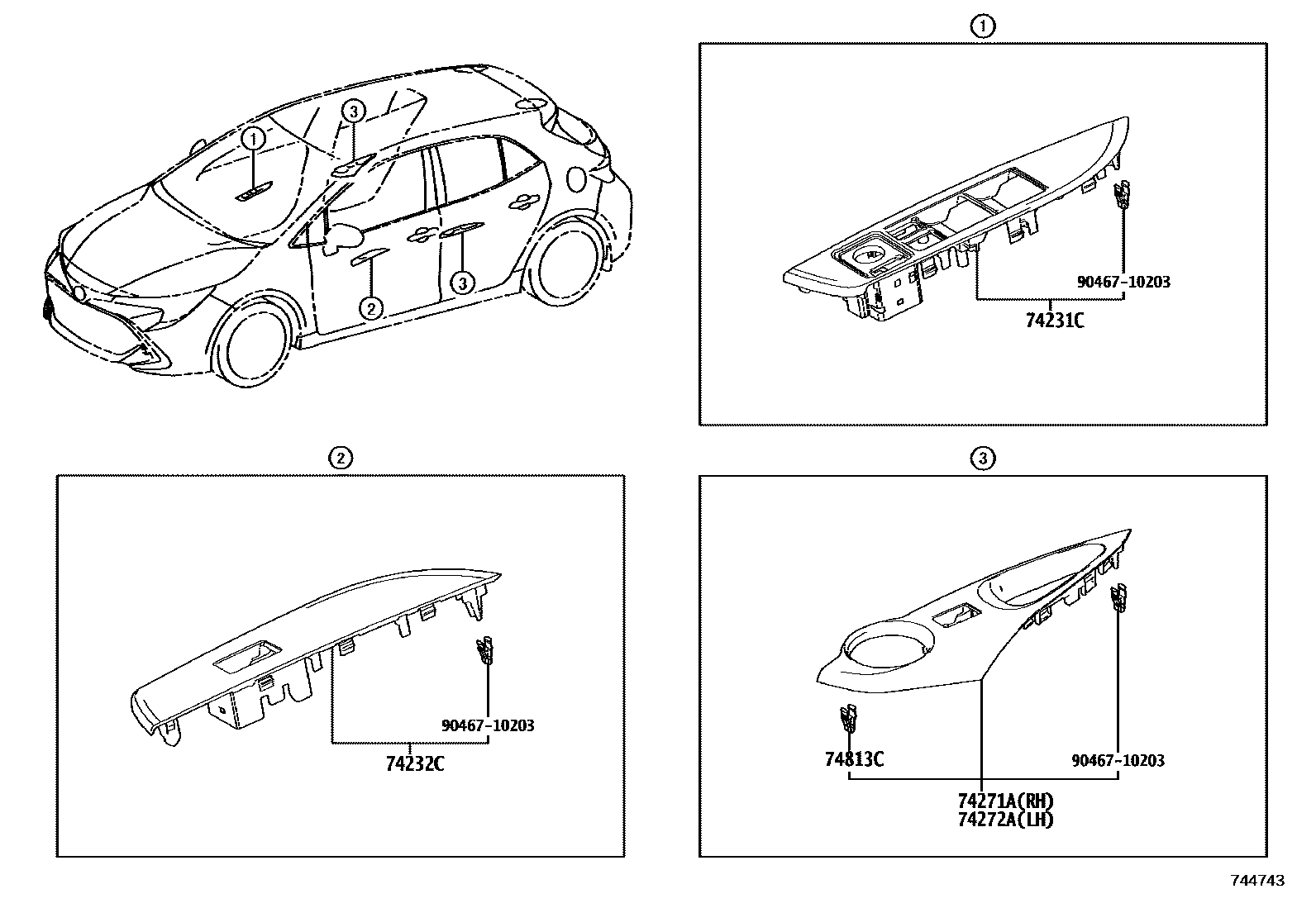

Toyota AURIS/COROLLA HB(JPP — ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE

main74231-12D10iNRE210201806

main74231-12E30iMZEA12..ARL¥1,090202209-202508

main74231-12E30iMZEA12..CVT..ARL¥1,090201806-202209

main74231-12E30iZWE211;MZEA12..6F¥1,090201806

main74231-12E30iZWE219¥1,090202209

main74232-12B90iMZEA12..TAIW201806-202209

main74232-12B90iMZEA12..TAIW202209

74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE

main74231-12E20iMZEA12..TAIW201806-202209

main74231-12E20iMZEA12..TAIW202209

main74232-12B00iZWE219¥1,250202209

main74232-12B00iMZEA12..CVT..ARL¥1,250201806-202209

main74232-12B00iMZEA12..6F;NRE210,ZWE211¥1,250201806

main74232-12B00iMZEA12..ARL¥1,250202209-202508

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12550iMZEA12..CVT..ARL¥1,820201806-202209

main74271-12550iMZEA12..6F;NRE210,ZWE211¥1,820201806

main74271-12550iMZEA12..ARL¥1,820202209-202508

main74271-12550iZWE219¥1,820202209

main74271-12560iMZEA12..TAIW¥3,170201806-202209

main74271-12560iMZEA12..TAIW¥3,170202209

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12490iMZEA12..CVT..ARL¥1,820201806-202209

main74272-12490iMZEA12..ARL¥1,820202209-202508

main74272-12490iZWE219¥1,820202209

main74272-12490iMZEA12..6F;NRE210,ZWE211¥1,820201806

main74272-12530iMZEA12..TAIW¥3,170201806-202209

main74272-12530iMZEA12..TAIW¥3,170202209

74813CCLIP

main90467-12080iMZEA12..CVT¥60201806-202209

COLOR:PINK

main90467-12080iMZEA12..6F;NRE210,ZWE211¥60201806

COLOR:PINK

main90467-12080iMZEA12..ARL¥60202209-202508

COLOR:PINK

main90467-12080iZWE219;MZEA12..TAIW¥60202209

COLOR:PINK

9046710203

main90467-10203¥60

6 parts on this diagram · 3 diagrams in section
