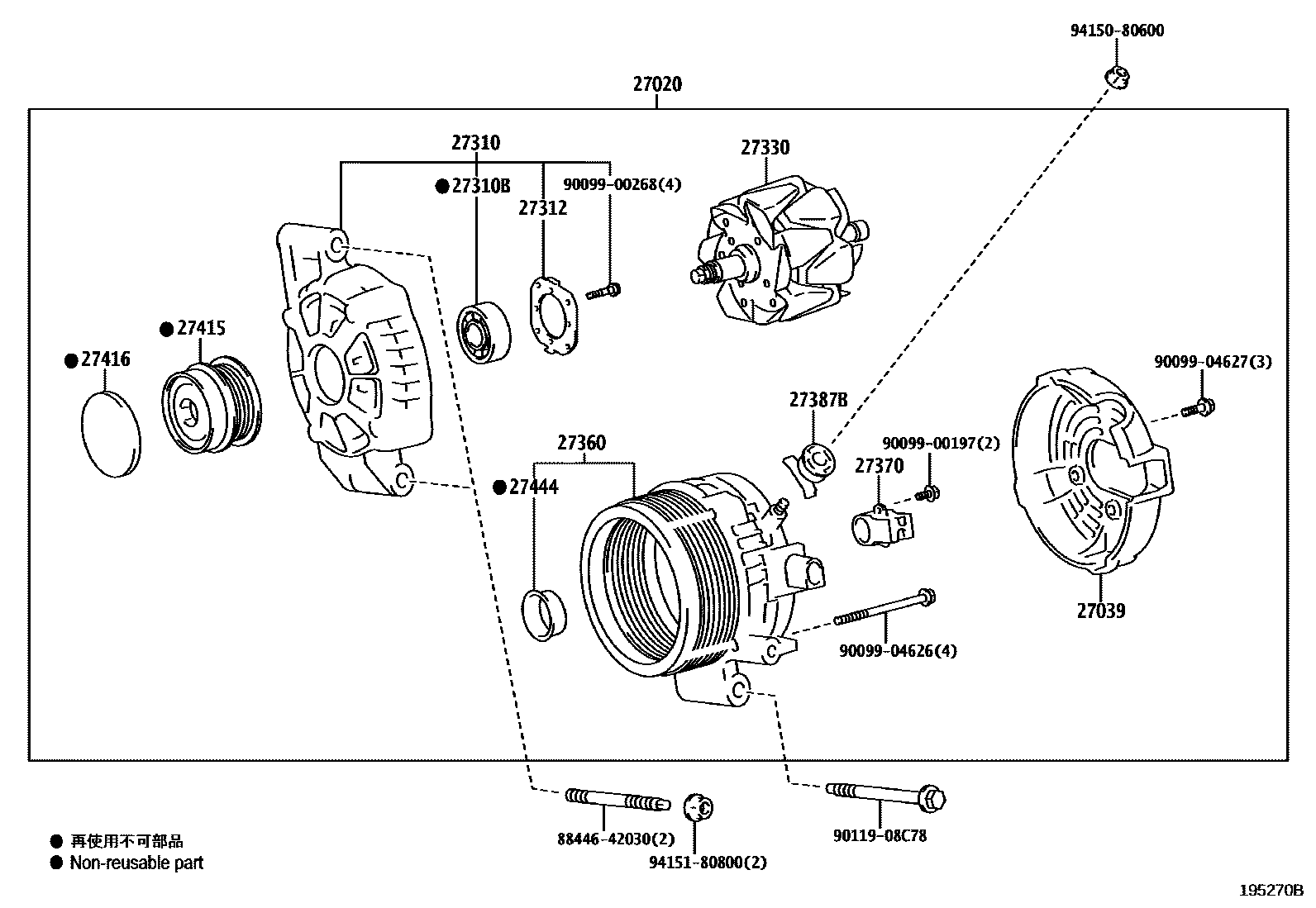

Toyota AURIS/COROLLA HB(JPP — ALTERNATOR

0001 112V 100A 0002 112V 100A 0003 112V 100A 0004 112V 100A

27020ALTERNATOR ASSY

main27060-24030iM20AFKS..MZEA12¥93,000201806-202303

12V 100A

main27060-24080iM20AFKS..MZEA12..TAIW¥84,500202303-202508

12V 100A

main27060-25010iM20AFKS..MZEA12..6F¥84,500201806

12V 100A

main27060-47191i8NRFTS..NRE210¥93,000201806

12V 100A

27039COVER, ALTERNATOR REAR END

main27039-37220iM20AFKS..MZEA12..TAIW¥0201806-202508

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-24150iM20AFKS..MZEA12..ARL201806-202508

main27310-47431i8NRFTS..NRE210201806

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223iM20AFKS..MZEA12..CVT¥0201806-202508

27312PLATE, RETAINER

main27312-72100i8NRFTS..NRE210;M20AFKS..MZEA12..6F¥0201806-202508

27330ROTOR ASSY, ALTERNATOR

main27330-47330iM20AFKS..MZEA12..CVT¥0201806-202508

27360COIL ASSY, ALTERNATOR

main27360-24150iM20AFKS..MZEA12..6F201806-202508

main27360-47431i8NRFTS..NRE210201806

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220iM20AFKS..MZEA12..CVT¥0201806-202508

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130iM20AFKS..MZEA12..CVT¥0201806-202508

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-24010iM20AFKS..MZEA12¥5,500201806-202305

main27415-47050i8NRFTS..NRE210¥6,200201806

main27415-F0010iM20AFKS..MZEA12..6F201806

27416CAP, ALTERNATOR PULLEY

main27416-0W050iM20AFKS..MZEA12..6F¥340201806

main27416-47010iM20AFKS..MZEA12..CVT¥340201806-202305

main27416-47020i8NRFTS..NRE210¥380201806

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190iM20AFKS..MZEA12..ARL¥0201806-202508

8844642030BOLT, IDLE PULLEY

main88446-42030¥0

9009900197

main90099-00197

9009900268

main90099-00268¥0

9009904626

main90099-04626¥0

9009904627

main90099-04627¥0

9011908C78

main90119-08C78¥0

9415080600

main94150-80600¥60

9415180800

main94151-80800¥80

20 parts on this diagram · 4 diagrams in section
