Toyota AQUA — WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-52480iMXPK10,15¥11,700202106-202403

main89740-52480iMXPK11,16¥11,700202106

89990ACOMPUTER ASSY, SMART KEY

main899H0-52050iMXPK11,16¥44,900202106

main899H0-52060iMXPK10,15¥49,400202106-202403

89997ANTENNA, ELECTRICAL KEY

main89997-30100iMXPK11,16¥1,800202106

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12080iMXPK10,15¥1,410202106-202403

main899A0-12080iMXPK11,16¥1,410202106

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12080iMXPK11,16¥1,410202409

main899A0-12090iMXPK10,15¥1,560202106-202403

main899A0-12090iMXPK11,16¥1,560202106-202409

9011906A06

main90119-06A06¥60

9011906A07

main90119-06A07¥60

9017906274

main90179-06274¥70

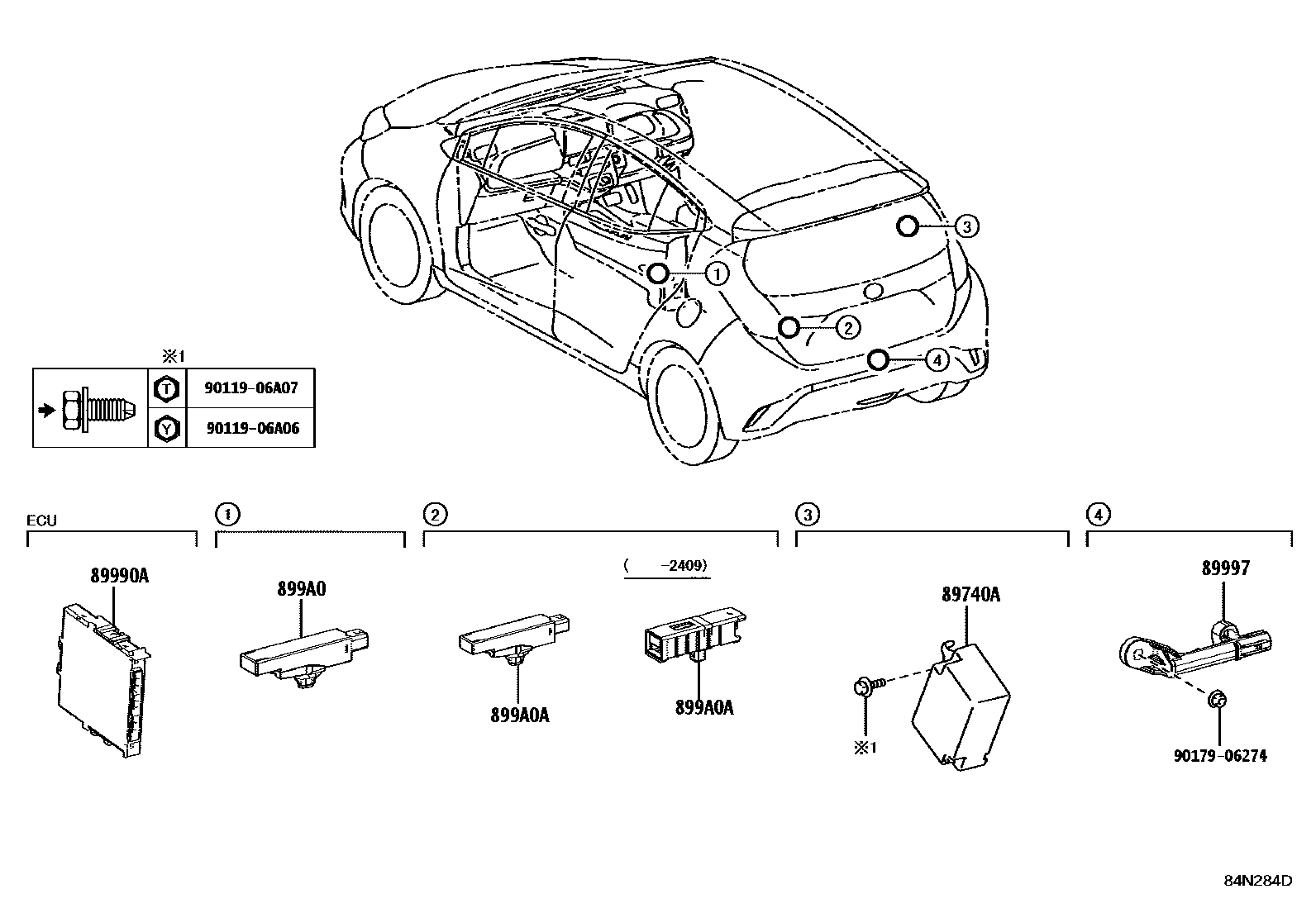

8 parts on this diagram · 1 diagram in section
