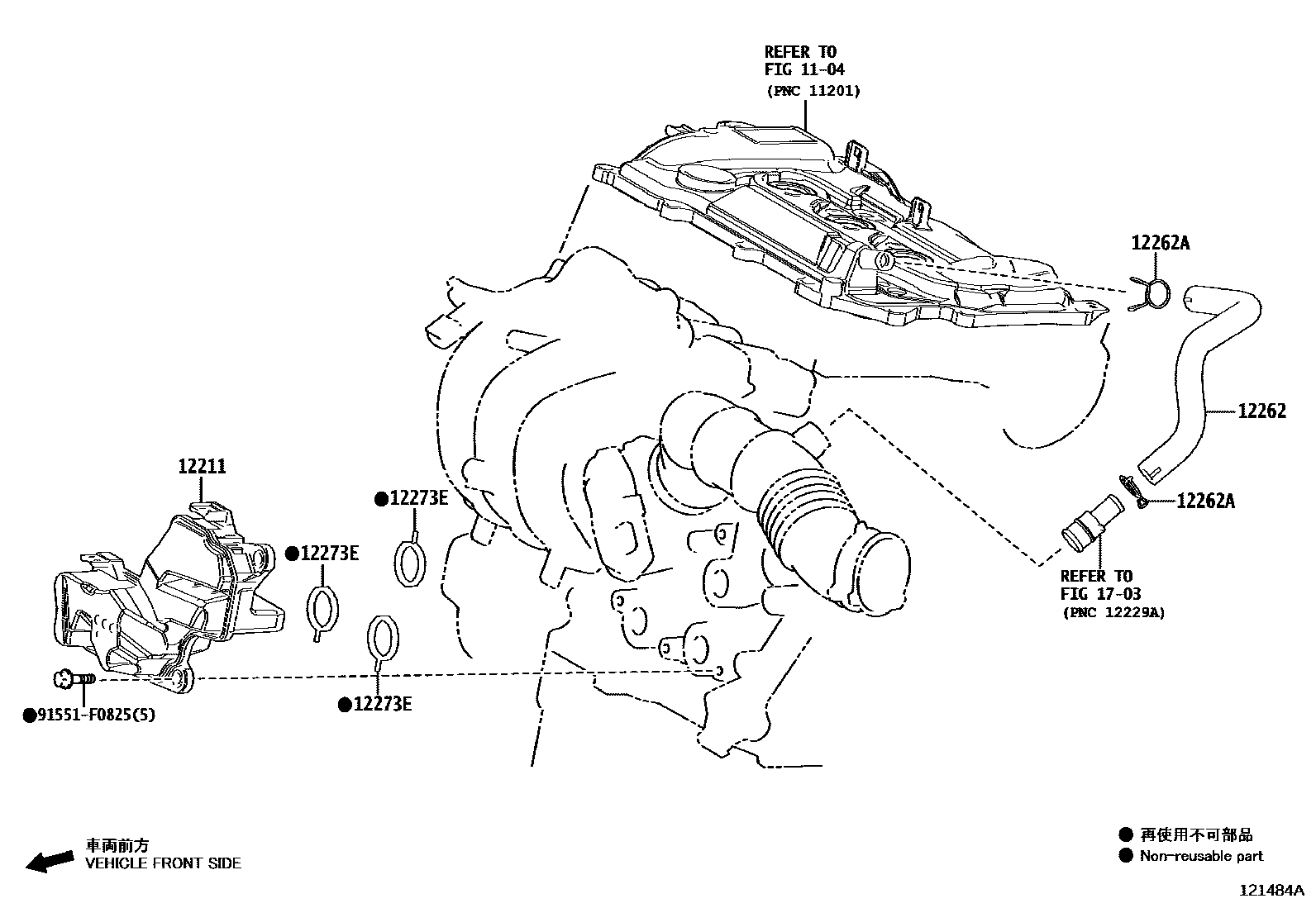

Toyota AQUA — VENTILATION HOSE

1104

12211CASE, VENTILATION, NO.1

main12211-15060iM15AFXE..MXPK1#¥8,000202106-202303

sub12211-15061¥7,300

main12211-15061iM15AFXE..MXPK10,15¥7,300202304-202403

main12211-15061iM15AFXE..MXPK11,16¥7,300202304

12262HOSE, VENTILATION, NO.2

main12262-15110iM15AFXE..MXPK10,15¥1,430202106-202403

main12262-15110iM15AFXE..MXPK11,16¥1,430202106

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iM15AFXE..MXPK10,15¥130202106-202403

main90467-21004iM15AFXE..MXPK11,16¥130202106

12273EGASKET(FOR VENTILATION CASE)

main12273-15010iM15AFXE..MXPK10,15¥340202106-202403

main12273-15010iM15AFXE..MXPK11,16¥340202106

1703

91551F0825

main91551-F0825¥80

7 parts on this diagram · 1 diagram in section
