Toyota AQUA — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52710-C0iMXPK1#..B,X202106-202212

�R�{�X�|�[�N�C�E���^��,BLACK,TRIM2#

sub45100-52711¥17,500

main45100-52711-C0iMXPK11,16..X202301

�R�{�X�|�[�N�C�E���^��,BLACK,TRIM2#

main45100-52711-C0iMXPK10,15202301-202403

�R�{�X�|�[�N�C�E���^��,BLACK,TRIM2#

main45100-52720-C0iMXPK11,16..G202106-202212

�R�{�X�|�[�N�C���U�[,BLACK,TRIM2#

sub45100-52721¥40,100

main45100-52720-C0iMXPK11,16..G202106-202212

�R�{�X�|�[�N�C���U�[,BLACK,TRIM0#,2#,4#

sub45100-52721¥40,100

main45100-52721-C0iMXPK11,16..G,Z202301

�R�{�X�|�[�N�C���U�[,BLACK,TRIM2#

main45100-52800-C0iMXPK11..GRS202212-202301

�R�{�X�|�[�N�C���U�[,BLACK & GRAY,TRIM2#

sub45100-52801¥40,100

main45100-52801-C0iMXPK11..GRS202301

�R�{�X�|�[�N�C���U�[,BLACK & GRAY,TRIM2#

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-52200-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main45116-52200-C0iMXPK11,16..X202106

BLACK,TRIM2#

main45116-52220-C0iMXPK11..GRS202212

BLACK & SILVER METALLIC,TRIM2#

main45116-K0020-C2iMXPK11,16..Z202106

SILVER,TRIM2#

main45116-K0020-C2iMXPK11,16..G202106

SILVER,TRIM0#,2#,4#

45130BUTTON ASSY, HORN

main45130-52860-C0iMXPK10,15202106-202403

BLACK,TRIM2#

sub45130-52861¥53,500

main45130-52860-C0iMXPK11,16..Z202106-202404

BLACK,TRIM0#,2#,4#

sub45130-52861¥53,500

main45130-52860-C0iMXPK11,16..Z202106-202404

BLACK,TRIM2#

sub45130-52861¥53,500

main45130-52861-C0iMXPK11,16..Z202405

BLACK,TRIM0#,2#,4#

main45130-52861-C0iMXPK11,16..Z202405

BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-52210-C0iMXPK11,16..Z202106-202301

BLACK,TRIM0#,2#,4#

main45184-52210-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main45184-52210-C0iMXPK11,16..G,GRS,X202106

BLACK,TRIM2#

main45184-52210-C0iMXPK11,16..Z202301

BLACK,TRIM2#

8401

9010918006

main90109-18006¥240

9015950199

main90159-50199¥70

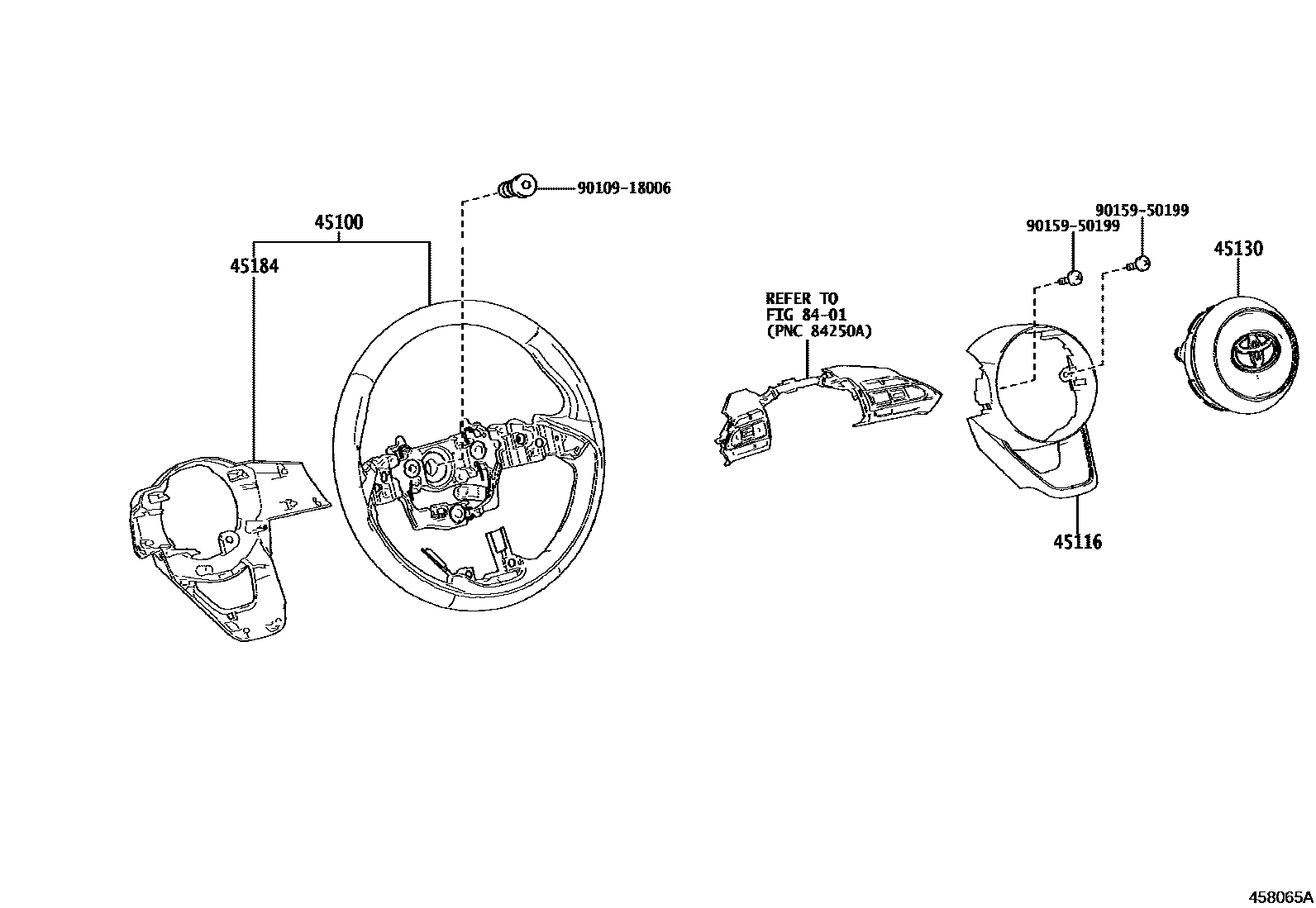

7 parts on this diagram · 1 diagram in section
