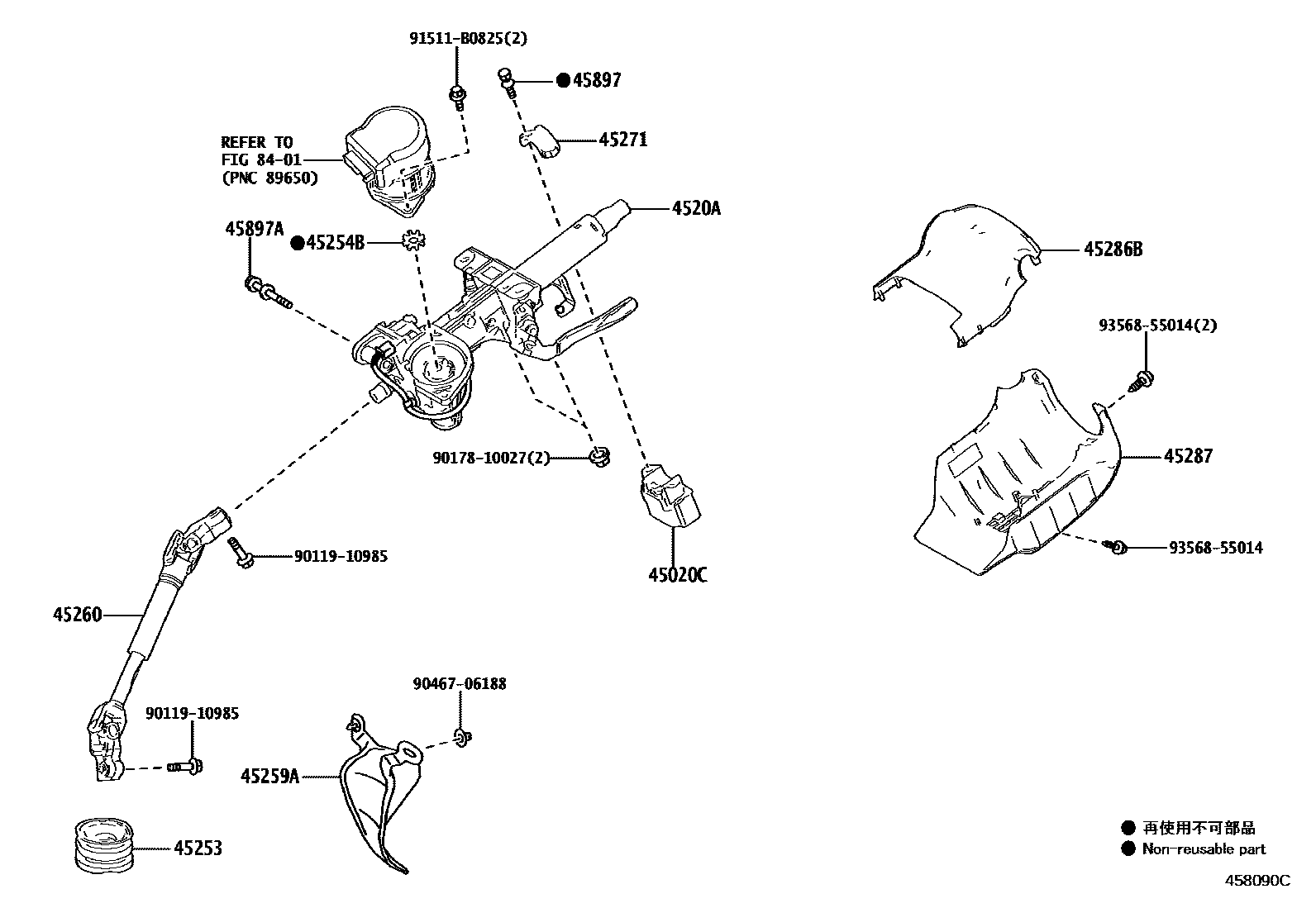

Toyota AQUA — STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-K0010iMXPK1#¥13,500202106-202212

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-52230iMXPK10,15¥48,500202212-202403

main4520A-52230iMXPK11,16¥48,500202212

main4520A-52340iMXPK1#¥53,400202106-202212

45253COVER, STEERING COLUMN HOLE

main45253-K0010iMXPK10,15¥840202106-202403

main45253-K0010iMXPK11,16¥840202106

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMXPK10,15¥220202106-202403

main45254-28040iMXPK11,16¥220202106

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52050iMXPK10,15¥730202106-202403

main45259-52050iMXPK11,16¥730202106

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-K0010iMXPK10,15¥11,700202106-202403

main45260-K0010iMXPK11,16¥11,700202106

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iMXPK1#¥440202106-202212

45286BCOVER, STEERING COLUMN, UPR

main45286-52210-C1iMXPK11,16..G,GRS,X202106

BLACK,TRIM2#

main45286-52210-C1iMXPK10,15202106-202403

BLACK,TRIM2#

main45286-52210-C1iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-52040-C1iMXPK10,15202106-202403

BLACK,TRIM2#

main45024-52040-C1iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

main45024-52040-C1iMXPK11,16..Z202106

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iMXPK1#¥210202106-202212

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iMXPK10,15¥190202106-202403

main90119-10981iMXPK11,16¥190202106

8401

9011910985

main90119-10985¥100

9017810027

main90178-10027¥100

9046706188

main90467-06188¥160

91511B0825

main91511-B0825¥140

9356855014

main93568-55014¥70

17 parts on this diagram · 1 diagram in section
