Toyota AQUA — SHORT BLOCK ASSEMBLY

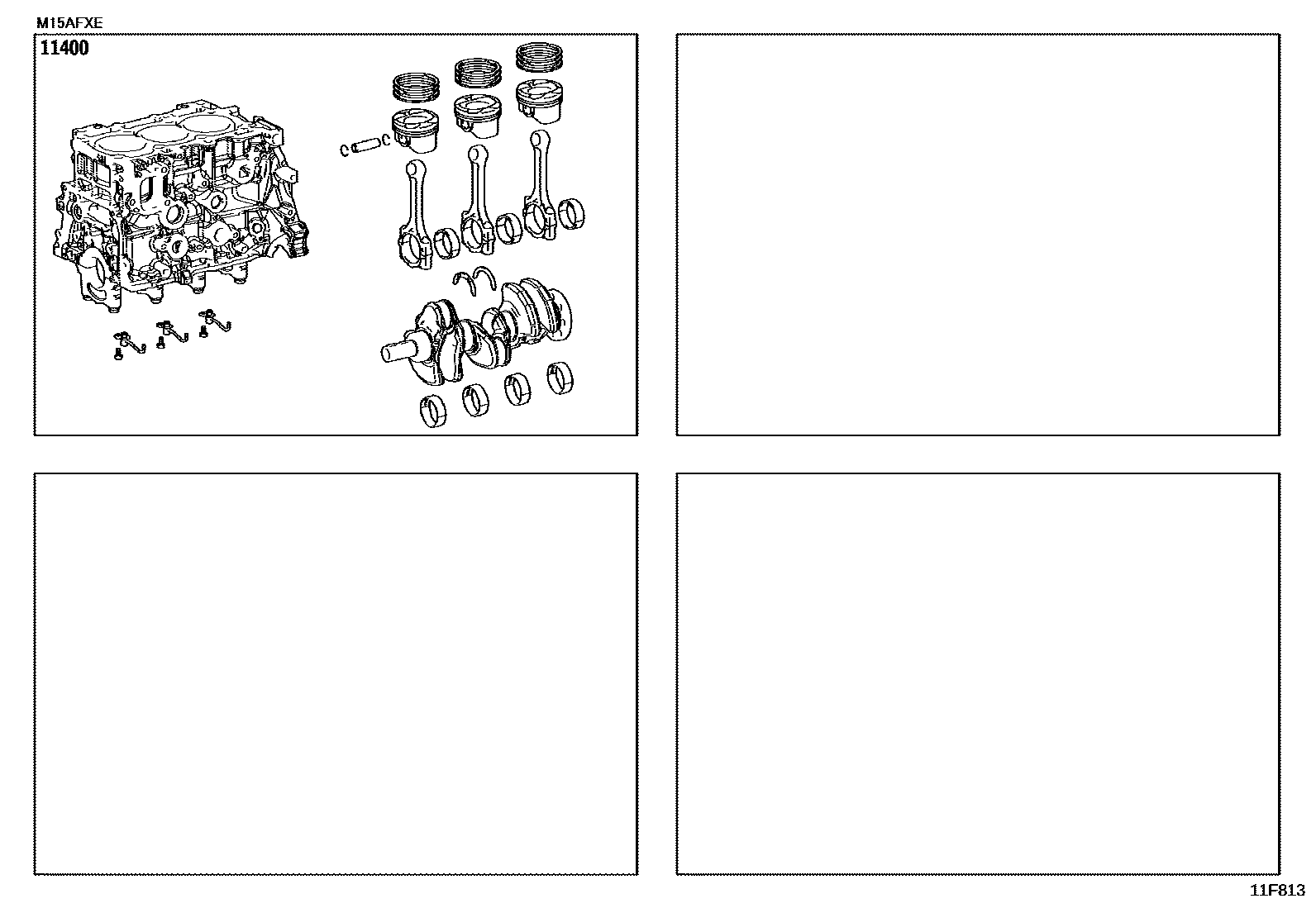

Parts diagram

11400BLOCK ASSY, SHORT

main11400-15100i¥173,000202106-202403

main11400-15100i¥173,000202106

1 parts on this diagram · 1 diagram in section
