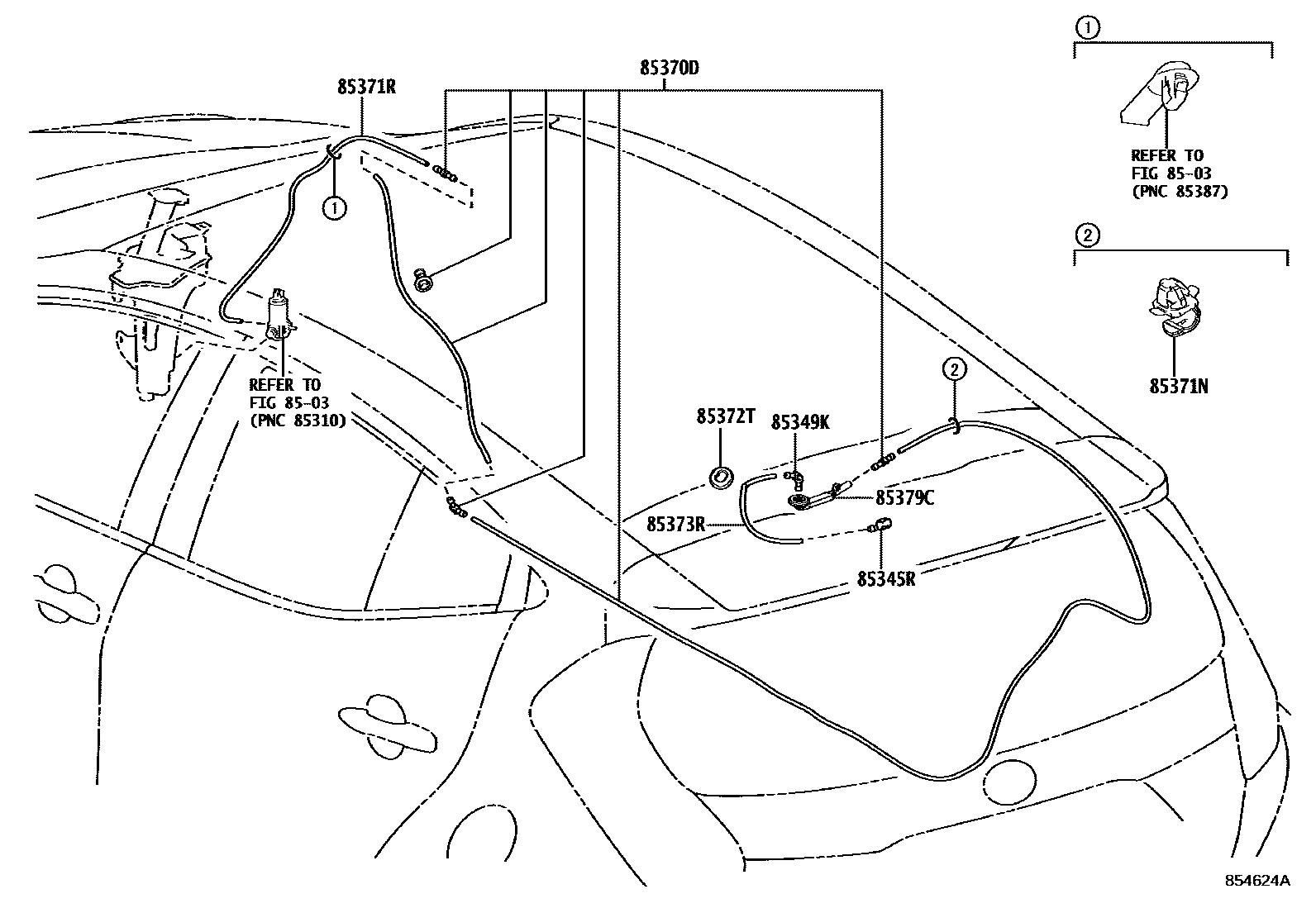

Toyota AQUA — REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-52210iMXPK11,16¥1,200202106

85349KJOINT, REAR WASHER ELBOW, NO.2

main85395-52220iMXPK11,16¥860202106

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-52720iMXPK11,16¥1,260202106

85371NCLAMP, REAR WASHER HOSE

main85371-12040iMXPK11,16¥100202106

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-62226iMXPK11,16202106

main90099-62226iMXPK11,16202106

85372TGROMMET, WASHER

main85372-20020iMXPK11,16¥390202106-202406

main85373-52030iMXPK11,16202407

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90069-46127iMXPK11,16¥400202106

85379CGROMMET, REAR WASHER HOSE NO.1

main85372-20040iMXPK11,16202106

9 parts on this diagram · 1 diagram in section
