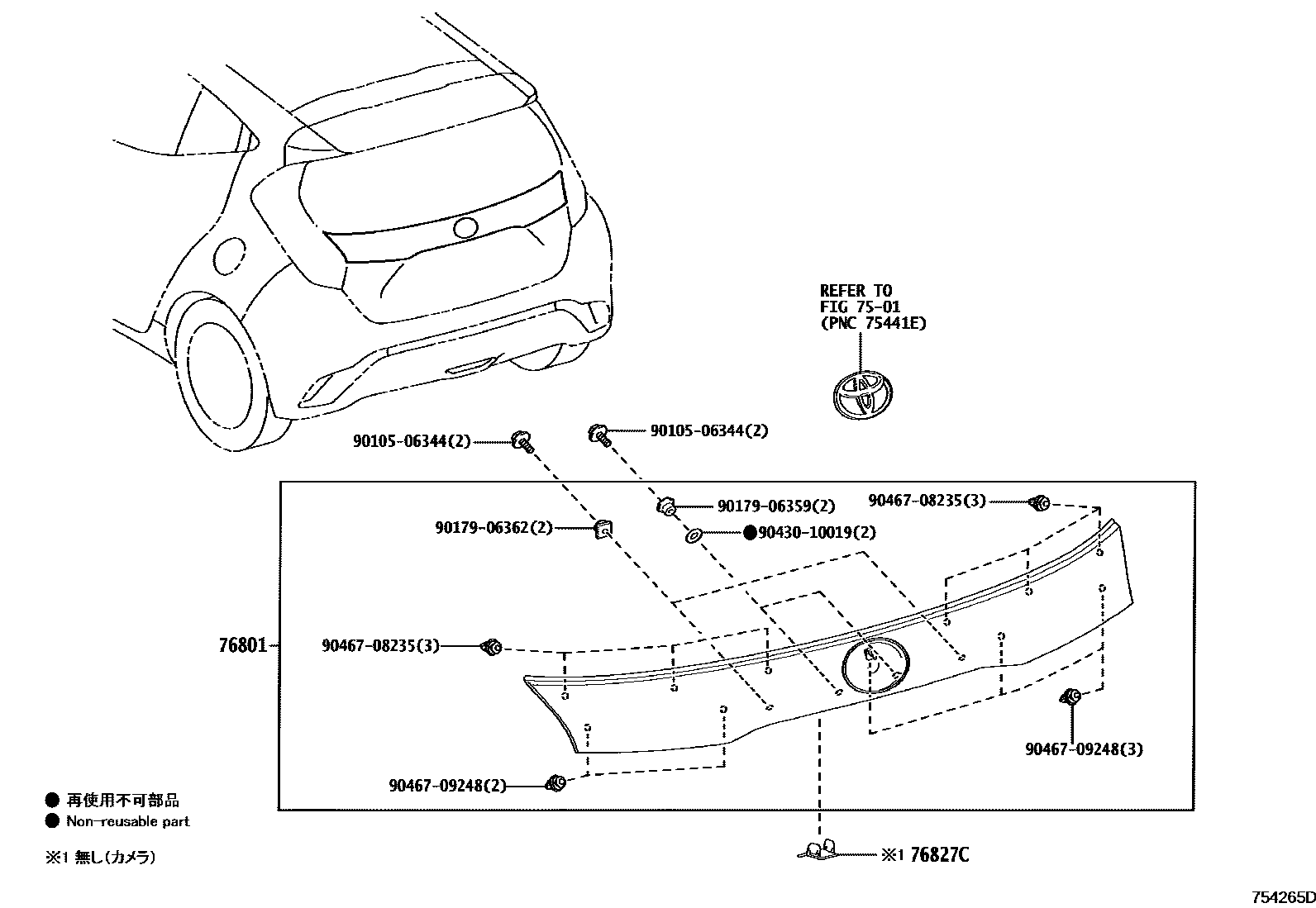

Toyota AQUA — REAR MOULDING

7501

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-52550-A0iMXPK11,16..X202106-202403

SUPER WHITE 2,040

main76801-52550-A1iMXPK11..GRS202212

PLATINUM WHITE PEARL MC.,089 ,2YP

main76801-52550-A1iMXPK11,16..G,X,Z202106

PLATINUM WHITE PEARL MC.,089

main76801-52550-B0iMXPK11,16..G,X,Z202106-202403

SILVER ME.,1F7

main76801-52550-B1iMXPK11,16..Z202212

DK.GRAY,1L7

main76801-52550-B1iMXPK11,16..Z202212

DK.GRAY,M54

main76801-52550-C0iMXPK10,15202106-202403

BLACK MC.,209

main76801-52550-D0iMXPK11..GRS202212

EMOTIONAL RED 2,2YQ ,3U5

main76801-52550-D0iMXPK11,16..G,X,Z202106

EMOTIONAL RED 2,3U5

main76801-52550-E0iMXPK11,16..G,Z202106

POP ORANGE CS.,4W5

main76801-52550-E0iMXPK11,16..G,Z202106

POP ORANGE CS.,2YR ,4W5

main76801-52550-E1iMXPK11,16..X202106

CLEAR BEIGE ME.,2WT ,4Y3

main76801-52550-E1iMXPK11,16..X202106

CLEAR BEIGE ME.,4Y3

main76801-52550-F0iMXPK11,16..G,Z202106

BRASS GOLD ME.,2YS ,5C2

main76801-52550-F0iMXPK11,16..X202106

BRASS GOLD ME.,5C2

main76801-52550-G0iMXPK11,16..X202106

URBAN KHAKI,6X3

main76801-52550-G0iMXPK11,16..G,GRS,Z202106

URBAN KHAKI,2WU ,6X3

main76801-52550-J0iMXPK11,16..G,X,Z202106

DK.BLUE M.M.,8W7

76827CRETAINER, LUGGAGE COMPARTMENT DOOR GARNISH, NO.2

main76827-52090iMXPK1#..B,X¥720202106-202212

9010506344

main90105-06344¥60

9017906359

main90179-06359¥80

9017906362

main90179-06362¥60

9043010019

main90430-10019¥80

9046708235

main90467-08235¥60

9046709248

main90467-09248¥80

9 parts on this diagram · 1 diagram in section
