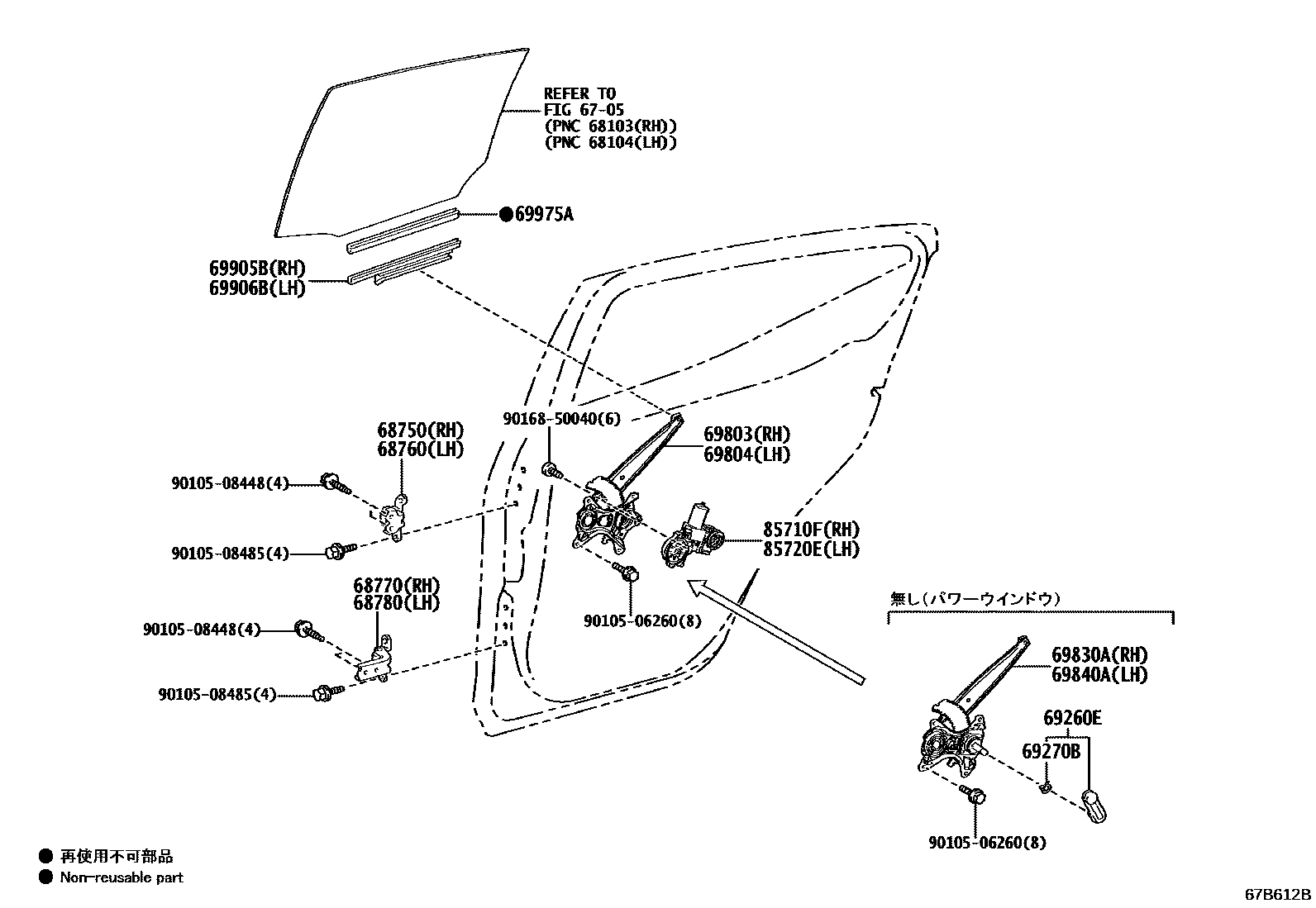

Toyota AQUA — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iMXPK10,15¥1,850202106-202403

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iMXPK10,15¥1,850202106-202403

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iMXPK10,15¥1,850202106-202403

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iMXPK10,15¥1,850202106-202403

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-52050-C1iMXPK10,15202106-202403

BLACK,TRIM2#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90524-15006iMXPK10,15¥80202106-202403

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-52150iMXPK11,16¥3,730202106

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-52160iMXPK11,16¥3,730202106

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-52340iMXPK10,15¥5,200202106-202403

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-52310iMXPK10,15¥5,200202106-202403

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52060iMXPK10,15¥400202106-202403

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52060iMXPK10,15¥400202106-202403

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-47020iMXPK10,15¥370202106-202403

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-52320iMXPK11,16¥12,600202106

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-52350iMXPK11,16¥12,600202106

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9016850040

main90168-50040¥70

20 parts on this diagram · 1 diagram in section
