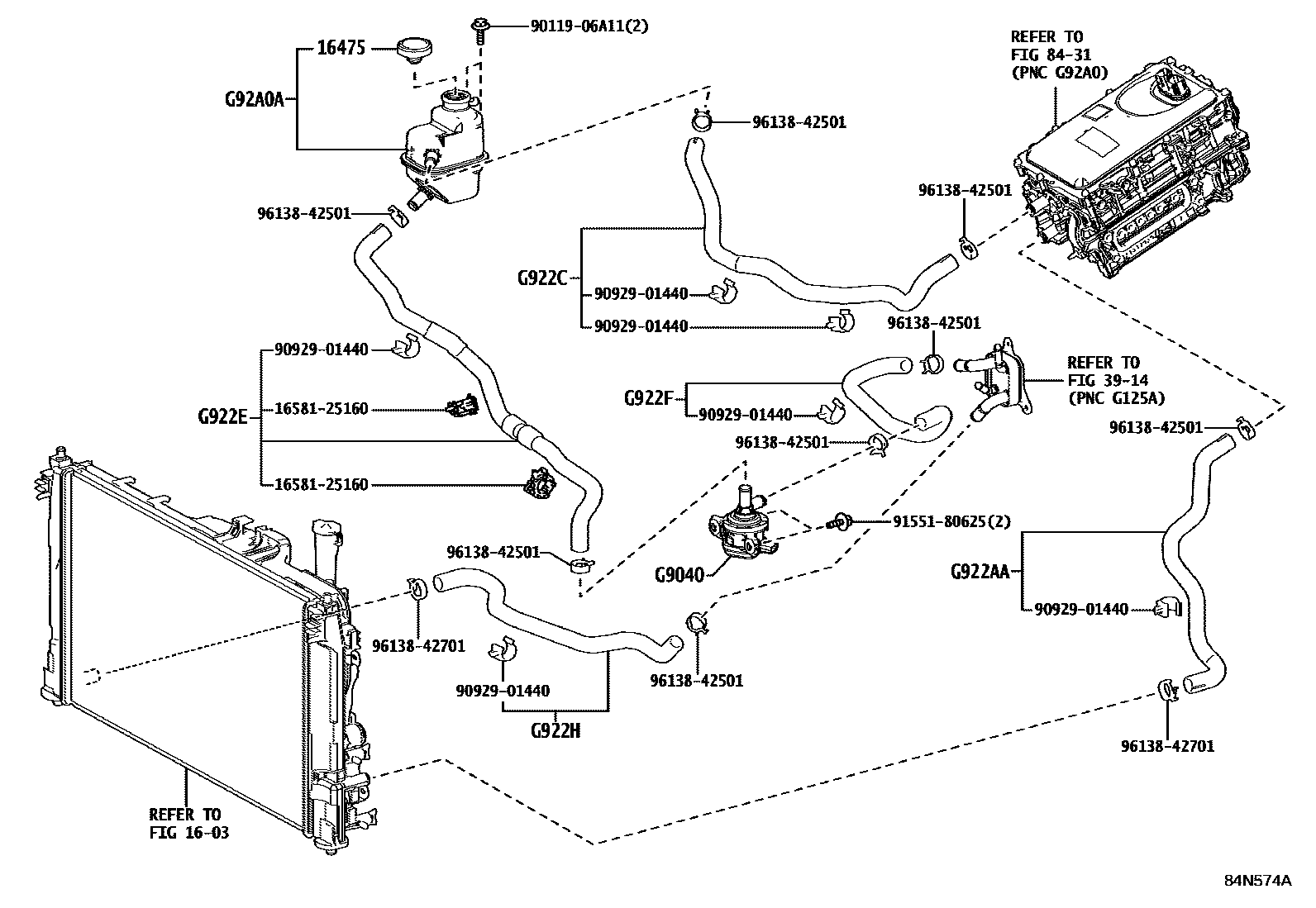

Toyota AQUA — INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140iM15AFXE..MXPK10,15¥1,200202106-202403

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052030iMXPK10,15202106-202404

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A52010iMXPK10,15202106-202403

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C52010iMXPK10,15202106-202403

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E52030iMXPK10,15202106-202403

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F52040iMXPK10,15202106-202403

G922HHOSE, HYBRID RADIATOR INLET

mainG922H52010iMXPK10,15202106-202403

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H052010iMXPK10,15202106-202403

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

9011906A11

main90119-06A11¥60

9092901440

main90929-01440¥190

9155180625

main91551-80625¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

17 parts on this diagram · 1 diagram in section
