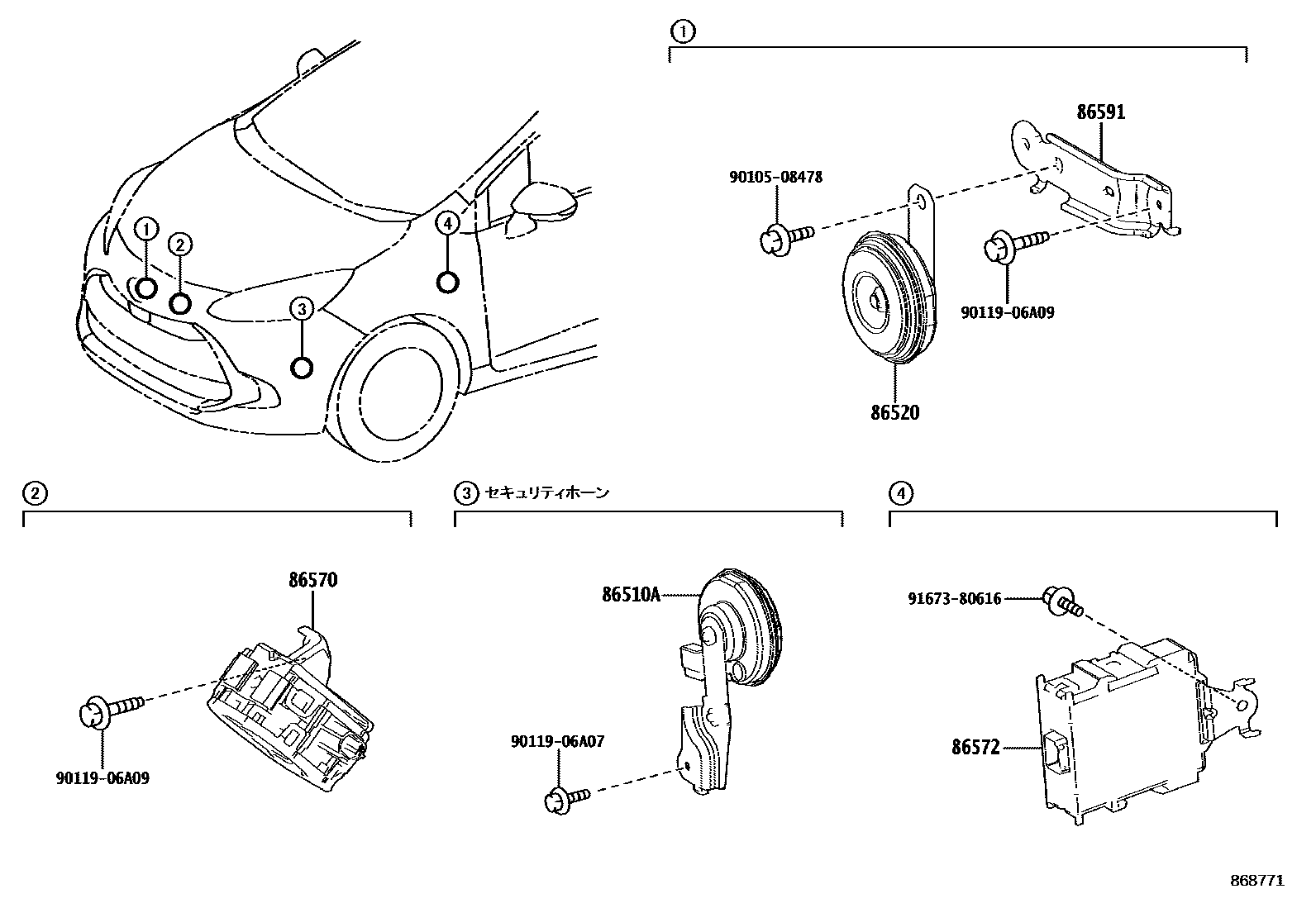

Toyota AQUA — HORN

86510AHORN ASSY, SECURITY

main86560-K0020iMXPK11,16¥2,190202106-202403

86520HORN ASSY, LOW PITCHED

main86520-52230iMXPK10,15¥2,190202301-202403

main86520-68010iMXPK1#¥2,410202106-202301

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-52090iMXPK11,16202106-202403

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-52110iMXPK10,15202106-202403

main86572-52210iMXPK11..GRS202212

86591BRACKET, HORN

main86591-52090iMXPK10,15¥370202106-202403

9010508478

main90105-08478¥80

9011906A07

main90119-06A07¥60

9011906A09

main90119-06A09¥80

9167380616

main91673-80616¥60

9 parts on this diagram · 1 diagram in section
