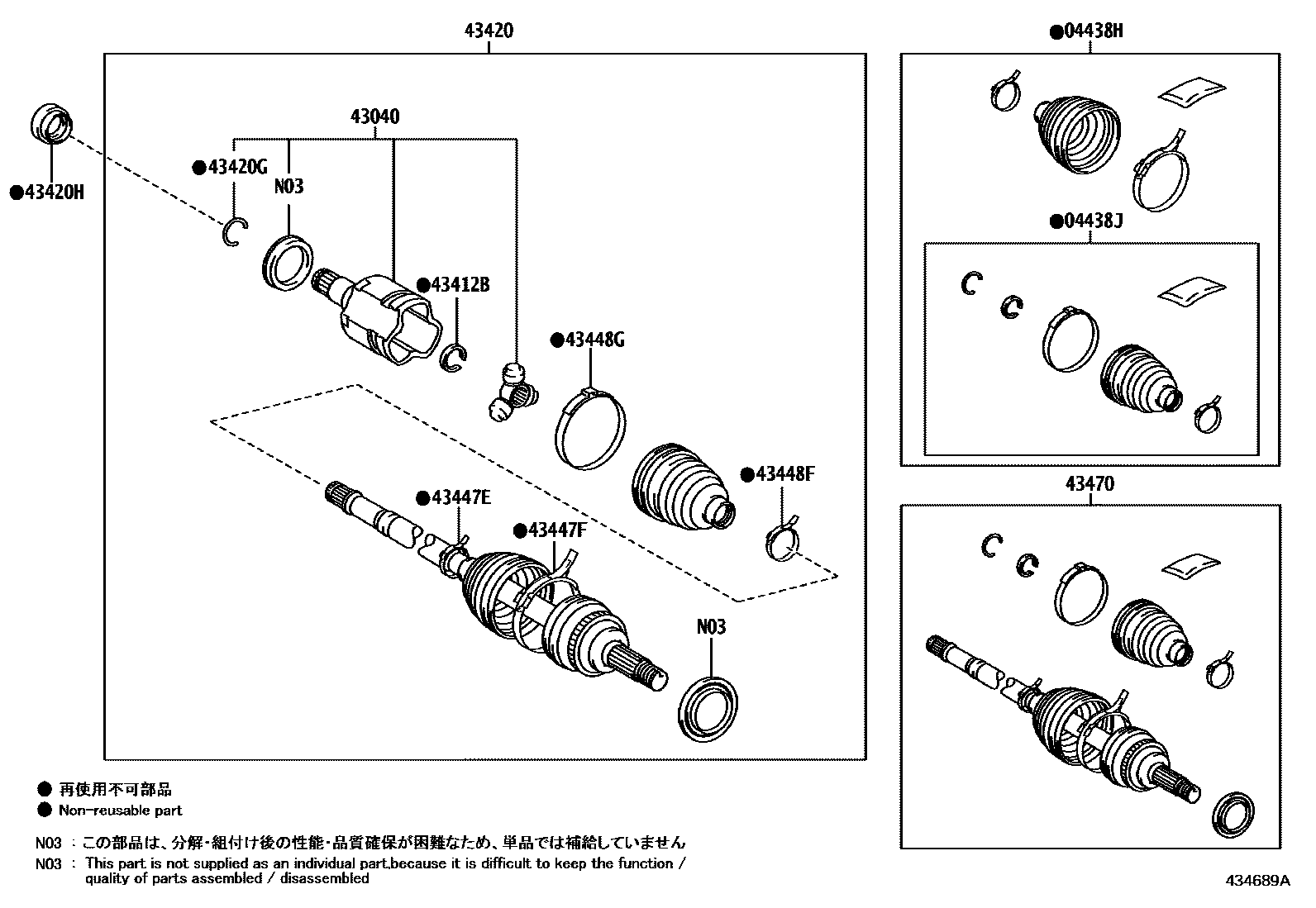

Toyota AQUA — FRONT DRIVE SHAFT

0001 1������� 0002 1������

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-K0040iMXPK10,15¥6,700202106-202403

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-K0020iMXPK10,15¥4,150202106-202403

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-K0020iMXPK10,15¥13,000202106-202403

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main90520-22029iMXPK10,15¥90202106-202403

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-K0080iMXPK10,15¥44,900202106-202403

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main90521-27005iMXPK10,15¥110202106-202403

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-35082iMXPK10,15¥470202106-202403

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-52110iMXPK10,15¥360202106-202403

sub42345-52260¥220

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-52100iMXPK10,15¥520202106-202403

sub42345-52250¥330

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-52340iMXPK11,16¥400202310-202403

main42345-K0080iMXPK10,15¥250202106-202310

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-K0091iMXPK10,15¥430202106-202403

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-K9025iMXPK10,15¥31,600202106-202403

12 parts on this diagram · 2 diagrams in section
