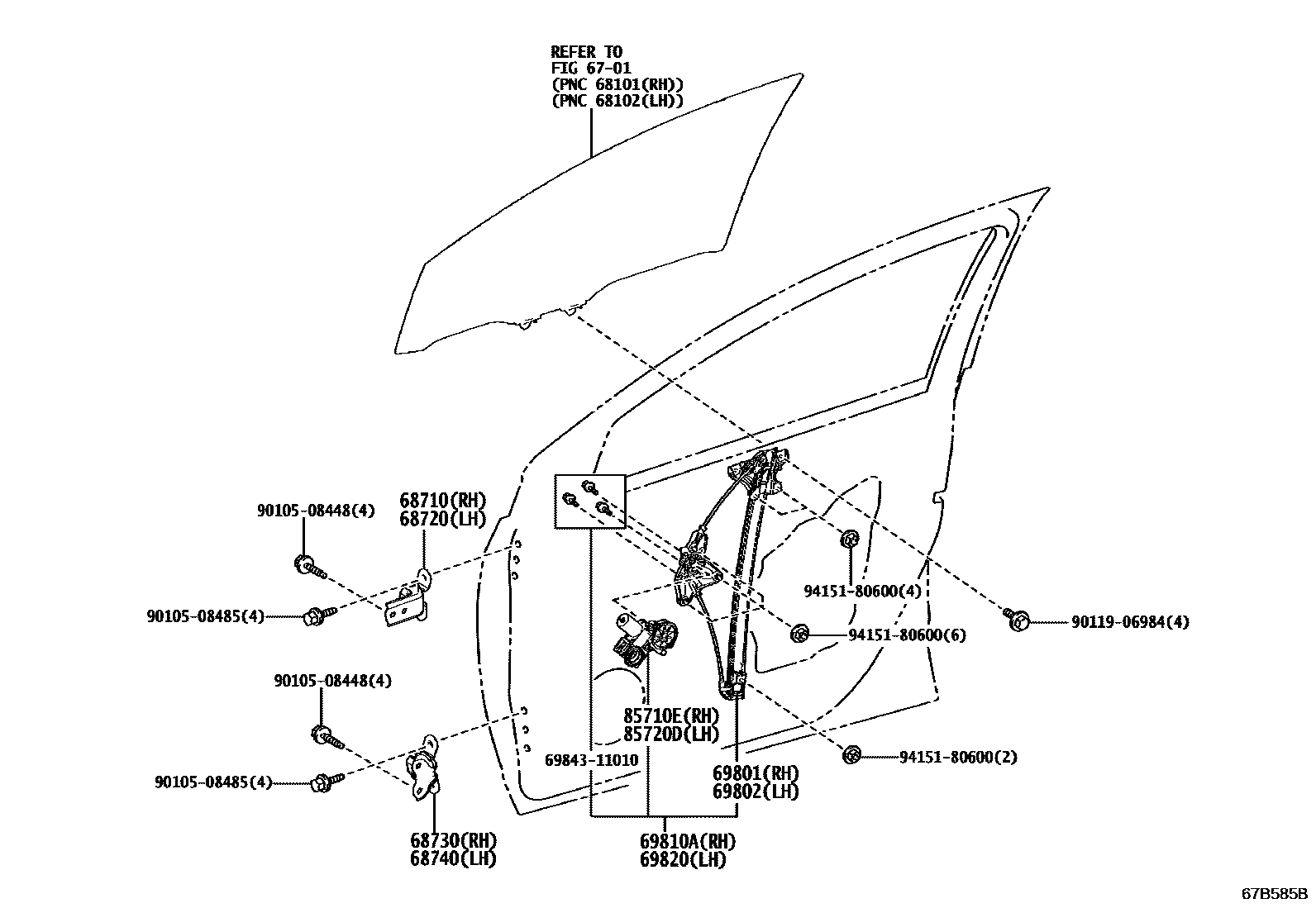

Toyota AQUA — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iMXPK10,15¥2,050202106-202403

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iMXPK10,15¥2,050202106-202403

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iMXPK10,15¥2,240202106-202403

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iMXPK10,15¥2,240202106-202403

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52190iMXPK10,15¥4,560202106-202403

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52170iMXPK10,15¥4,560202106-202403

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-52560iMXPK10,15¥15,900202106-202403

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-52470iMXPK10,15¥15,900202106-202403

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-K0070iMXPK10,15¥12,600202106-202403

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-K0070iMXPK10,15¥12,600202106-202403

6984311010

main69843-11010¥780

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9415180600

main94151-80600¥60

16 parts on this diagram · 1 diagram in section
