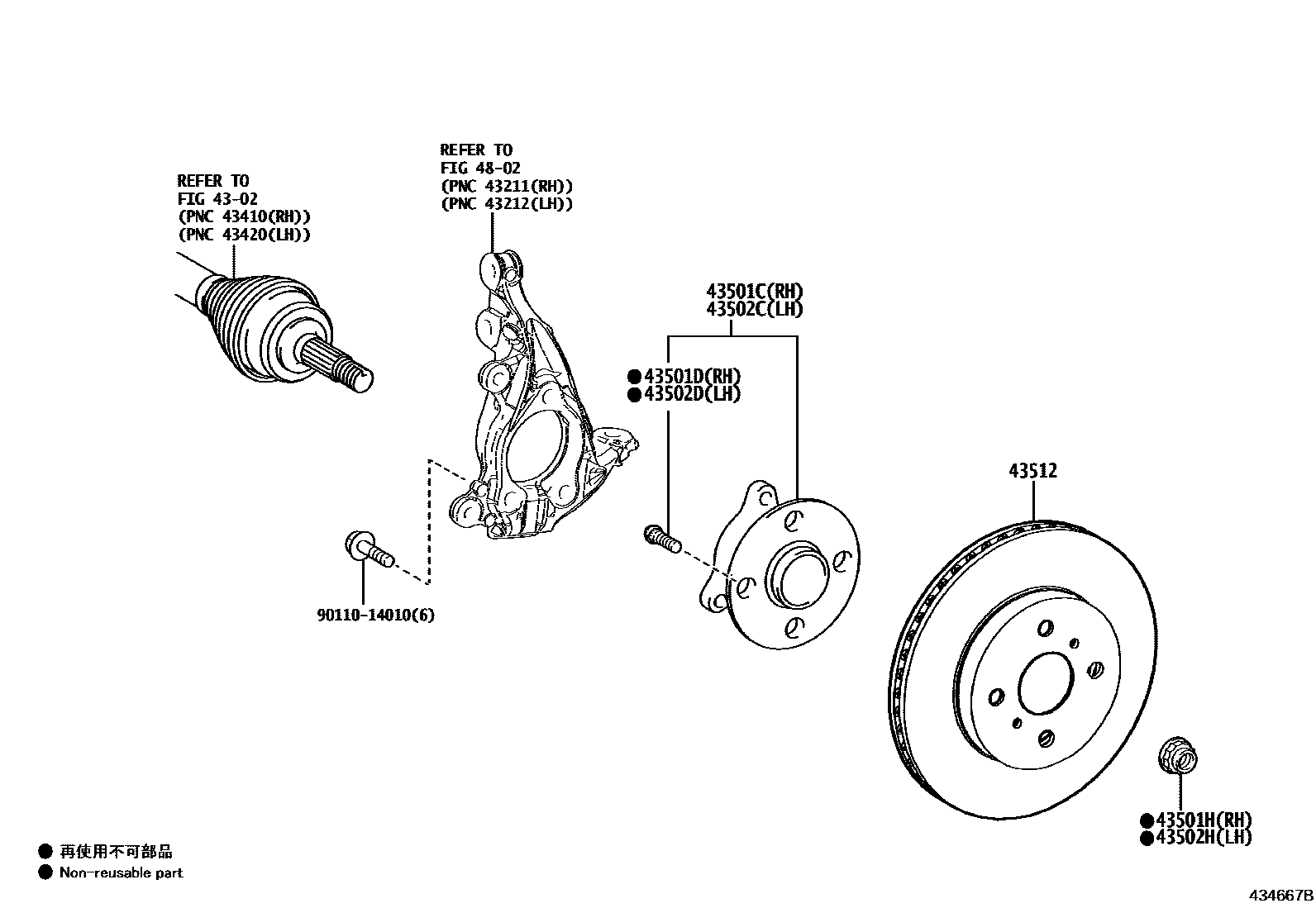

Toyota AQUA — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-K0020iMXPK10,15¥13,600202106-202403

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iMXPK10,15¥240202106-202403

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iMXPK10,15¥220202106-202403

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-K0020iMXPK10,15¥13,600202106-202403

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMXPK10,15¥240202106-202403

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMXPK10,15¥220202106-202403

43512DISC, FRONT

main43512-K0010iMXPK10¥8,000202106-202403

main43512-K0020iMXPK15,16¥9,300202106-202307

sub43512-K0021¥8,500

main43512-K0021iMXPK15¥8,500202308-202403

4802

9011014010

main90110-14010¥190

10 parts on this diagram · 1 diagram in section
