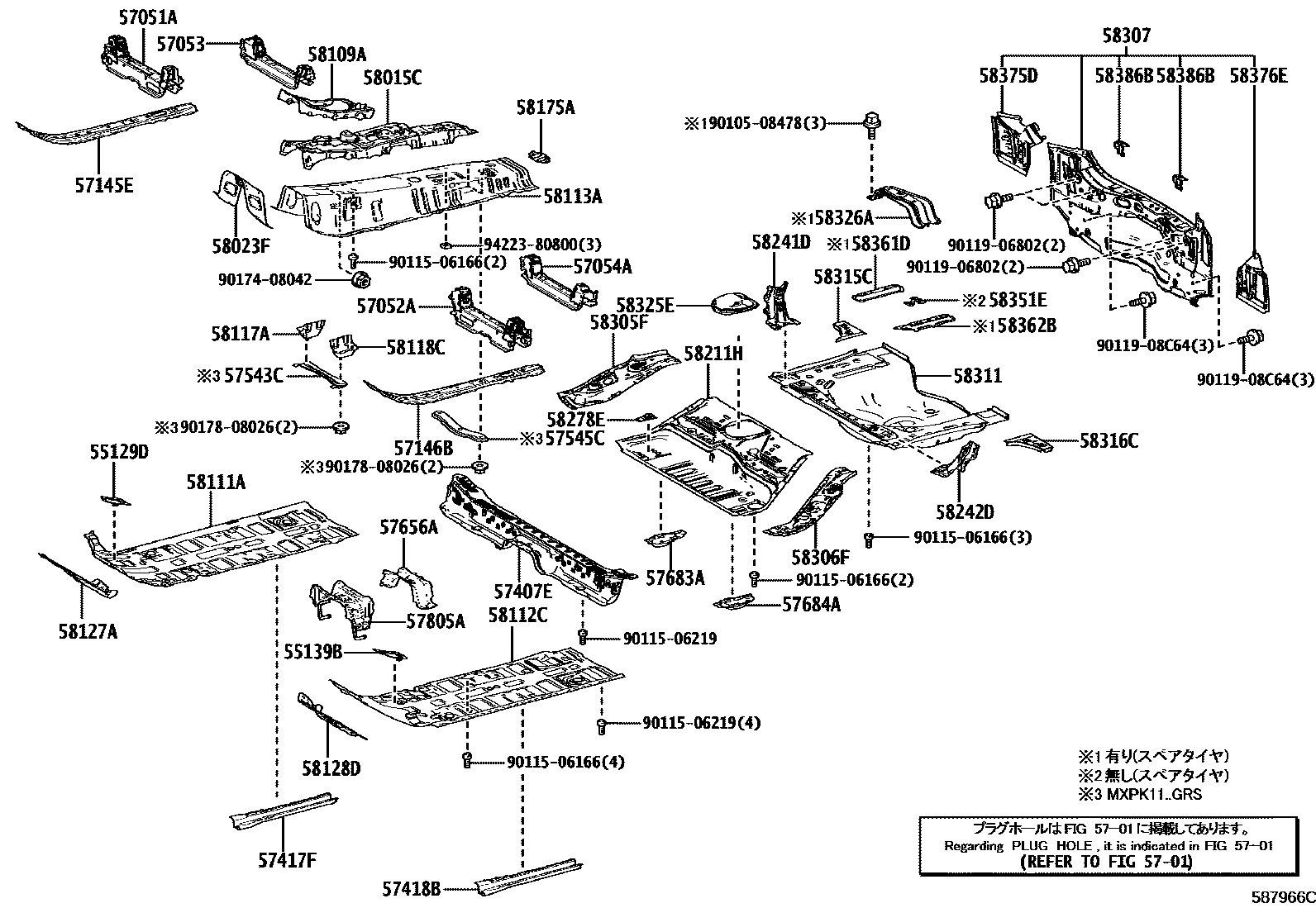

Toyota AQUA — FLOOR PAN & LOWER BACK PANEL
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57145EREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57146BREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57543CBRACE, CENTER FLOOR, NO.1
57545CBRACE, CENTER FLOOR, NO.2
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57683ABRACKET, FUEL TANK MOUNTING, NO.1
57684ABRACKET, FUEL TANK MOUNTING, NO.2
57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
58015CPANEL SUB-ASSY, FRONT FLOOR HOUSING
58023FBRACKET SUB-ASSY, FLEXIBLE HOSE
58109ARETAINER SUB-ASSY, PARKING BRAKE
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58211HPAN, CENTER FLOOR
58241DGUSSET, WHEELHOUSE INNER, FRONT RH
58242DGUSSET, WHEELHOUSE INNER, FRONT LH
58278EREINFORCEMENT, SIDE FLOOR, NO.2
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58326ABRACE, REAR FLOOR PANEL, REAR
58351EBRACKET, SPARE WHEEL CLAMP
58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH
58375DREINFORCEMENT, BODY LOWER BACK PANEL, RH
58376EREINFORCEMENT, BODY LOWER BACK PANEL, LH
58386BBRACKET, REAR BUMPER COVER, NO.2
9010508478
9011506166
9011506219
9011906802
9011908C64
9017408042
9017808026
9422380800
55 parts on this diagram · 2 diagrams in section
