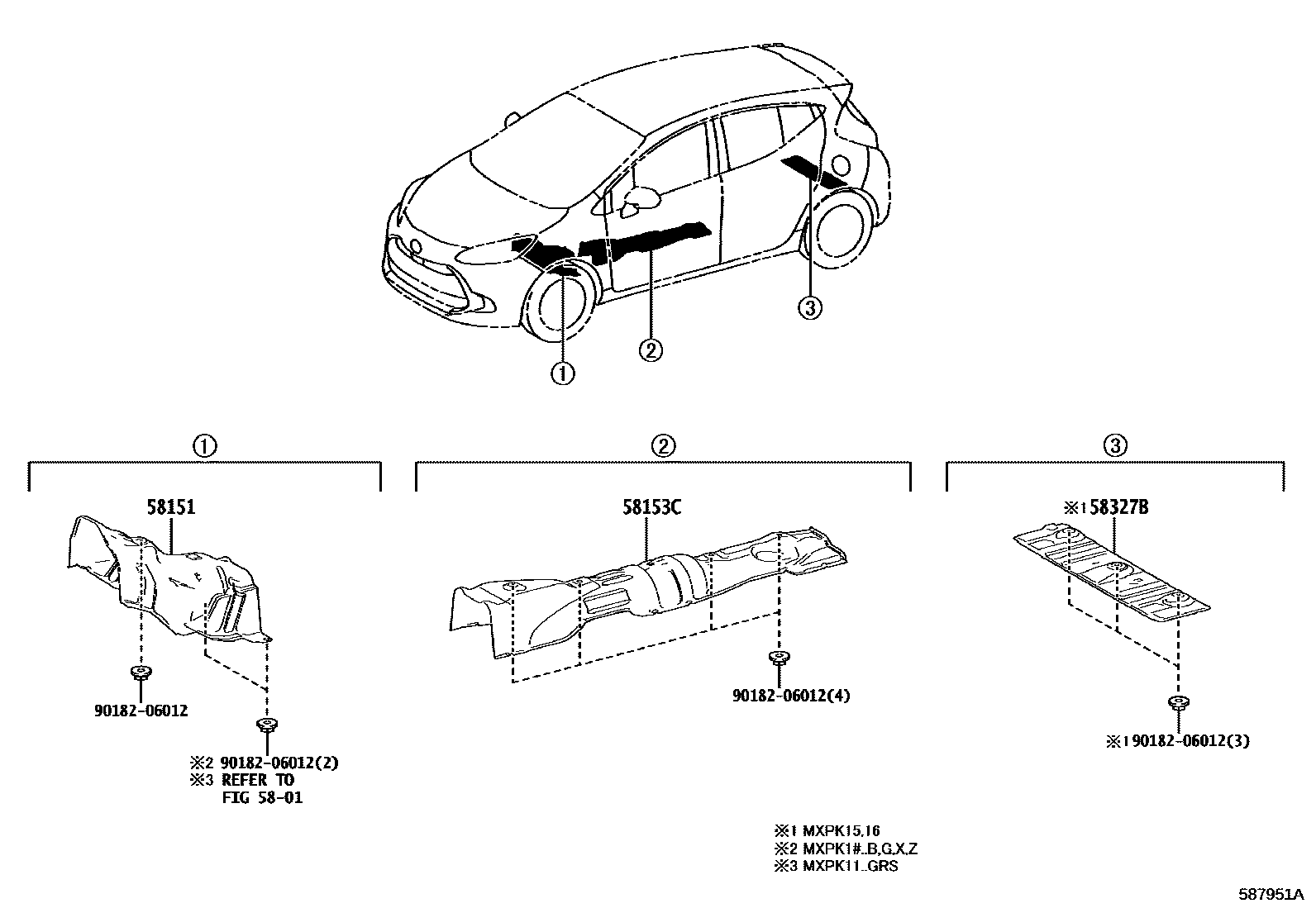

Toyota AQUA — FLOOR INSULATOR

5801

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-K0010iMXPK11..GRS¥2,840202212

main58151-K0040iMXPK10,15¥2,840202106-202403

58153CINSULATOR, FLOOR HEAT, NO.3

main58153-52170iMXPK10,15¥4,020202106-202403

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-K0020iMXPK15¥2,030202106-202403

9018206012

main90182-06012¥60

5 parts on this diagram · 1 diagram in section
