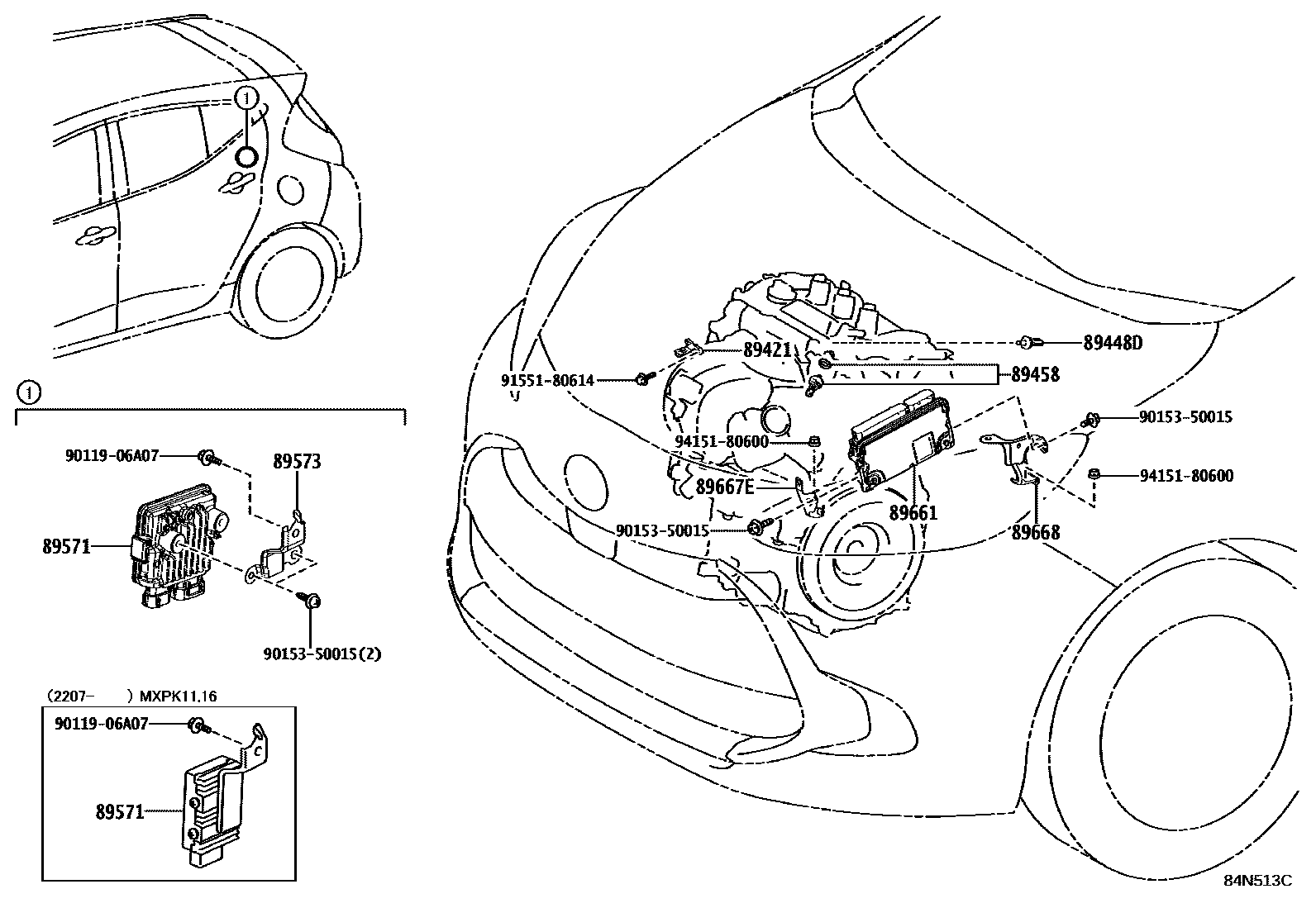

Toyota AQUA — ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMXPK10,15¥5,900202106-202403

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMXPK10,15¥5,700202106-202403

89458SENSOR, FUEL PRESSURE

main89458-33041iMXPK1#¥4,760202106-202206

main89458-33042iMXPK11,16¥4,320202207-202403

89571COMPUTER, FUEL PUMP CONTROL

main89570-52060iMXPK11,16¥5,700202212

main89571-10010iMXPK11,16¥9,900202106-202403

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-K0010iMXPK11,16¥300202106-202403

89661COMPUTER, ENGINE CONTROL

main89661-5CC50iMXPK10,15¥83,500202106-202403

main89661-5CC70iMXPK11,16¥83,500202106-202212

main89661-5CG80iMXPK11,16¥83,500202212-202404

main89661-5CL30iMXPK11,16¥75,900202404

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-K0020iMXPK10,15¥450202106-202403

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-K0020iMXPK10,15¥640202106-202403

9011906A07

main90119-06A07¥60

9015350015

main90153-50015¥60

9155180614

main91551-80614¥60

9415180600

main94151-80600¥60

12 parts on this diagram · 1 diagram in section
