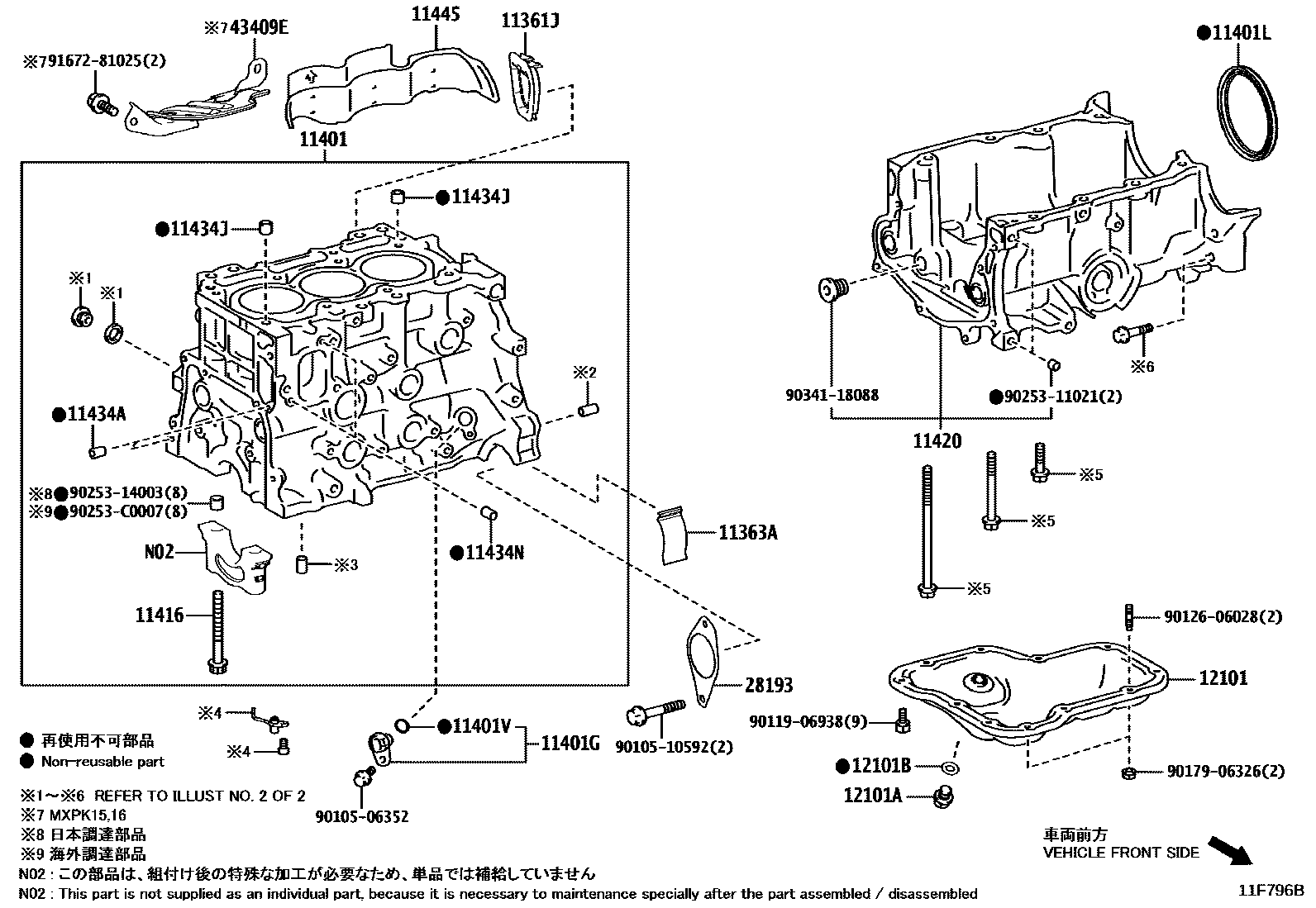

Toyota AQUA — CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
11401LSEAL, ENGINE REAR OIL
11401VO-RING, CRANK POSITION SENSOR
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
�������P�S�C�O�a���U
�������P�S�C�O�a���U
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
28193INSULATOR, STARTER HOLE
43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
9010506352
9010510592
9011906938
9012606028
9017906326
9025311021
9025314003
90253C0007
main90253-C0007
9034118088
9167281025
27 parts on this diagram · 2 diagrams in section
