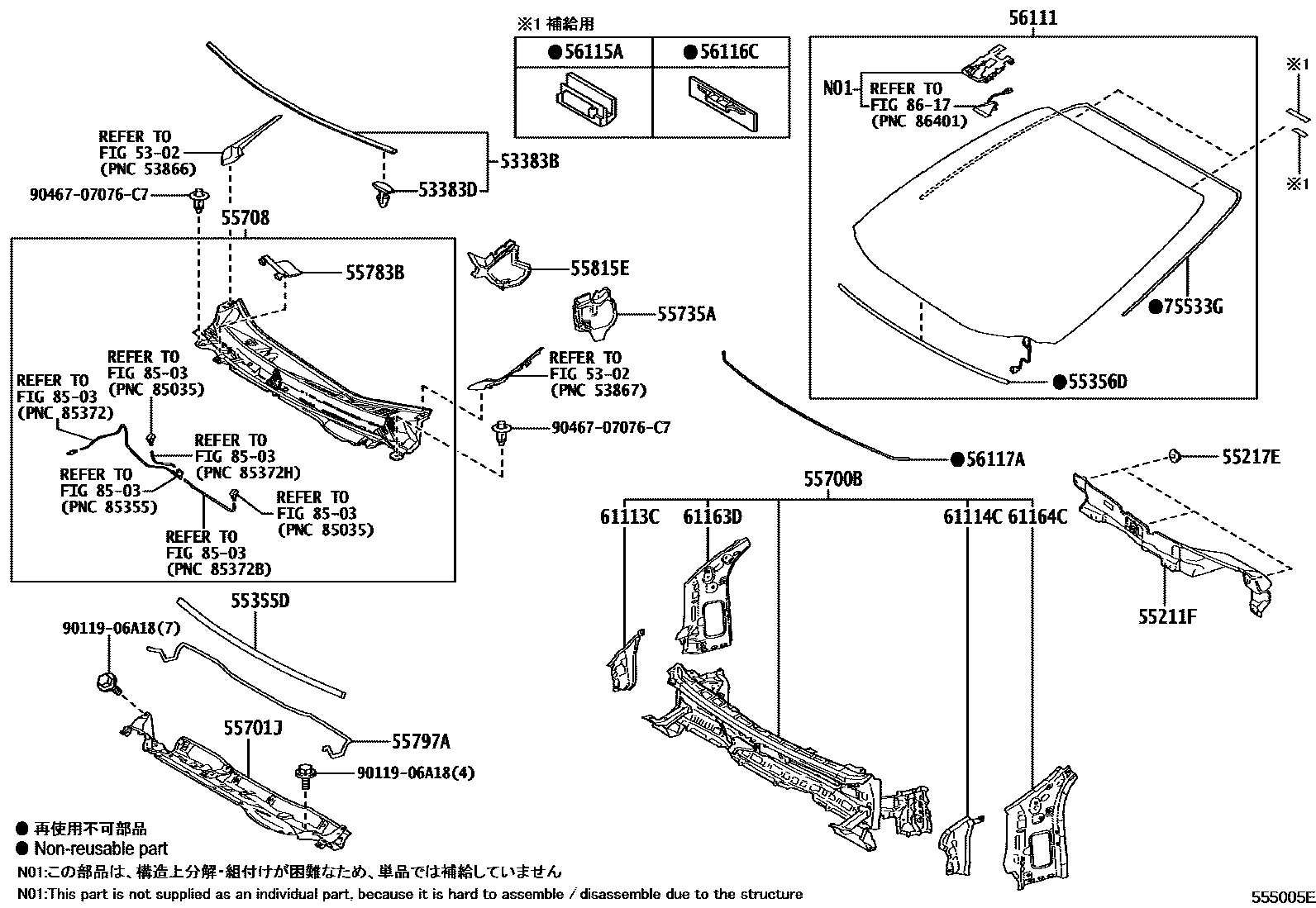

Toyota AQUA — COWL PANEL & WINDSHIELD GLASS

5302

53383BSEAL, HOOD TO COWL TOP

main53383-52180iMXPK11,16¥620202106-202403

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iMXPK10,15¥100202106-202403

55211FCOVER, DASH PANEL INSULATOR

main55211-52170iMXPK11,16¥1,600202106-202403

55217ERETAINER, DASH PANEL SILENCER

main55217-51010iMXPK11,16¥90202106-202403

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55356-K2010iMXPK10,15¥1,130202106-202403

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-52300iMXPK11,16¥610202106-202403

55700BCOWL ASSY

main55700-52480iMXPK11,16¥20,700202106-202403

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-52410iMXPK10,15¥9,800202106-202403

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52300iMXPK11,16¥11,300202405

main55708-52470iMXPK11,16¥12,500202106-202404

sub55708-52300¥11,300

55735APLATE, WATER GUARD, LH

main55735-52180iMXPK10,15¥1,450202106-202403

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52390iMXPK10,15¥1,090202106-202403

55797ASEAL, COWL WATER EXTRACT

main55797-K0010iMXPK10,15¥970202106-202403

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-52100iMXPK10,15¥1,610202106-202403

56111GLASS, WINDSHIELD

main56101-52J30iMXPK10,15¥80,900202106-202403

main56101-52J70iMXPK11,16..G,GRS,Z¥95,000202106

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iMXPK10,15¥130202106-202403

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iMXPK10,15¥120202106-202403

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140iMXPK10,15,16..B,X¥870202106-202403

main56117-50140iMXPK10,15¥870202106-202403

main56117-50140iMXPK10,15¥870202106-202403

main56117-50140iMXPK10,15¥870202106-202403

main56117-50140iMXPK11,16¥870202106

main56117-50140iMXPK11,16¥870202106

61113CPANEL, SIDE, INNER RH

main61113-52030iMXPK10,15¥1,110202106-202403

61114CPANEL, SIDE, INNER LH

main61114-52030iMXPK10,15¥1,110202106-202403

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-52070iMXPK10,15¥11,800202106-202403

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-52080iMXPK10,15¥11,800202106-202403

75533GMOULDING, WINDSHIELD, OUTSIDE

main75535-52020iMXPK10,15¥1,390202106-202403

8503

8617

9011906A18

main90119-06A18¥80

9046707076C7

main90467-07076C7

27 parts on this diagram · 1 diagram in section
