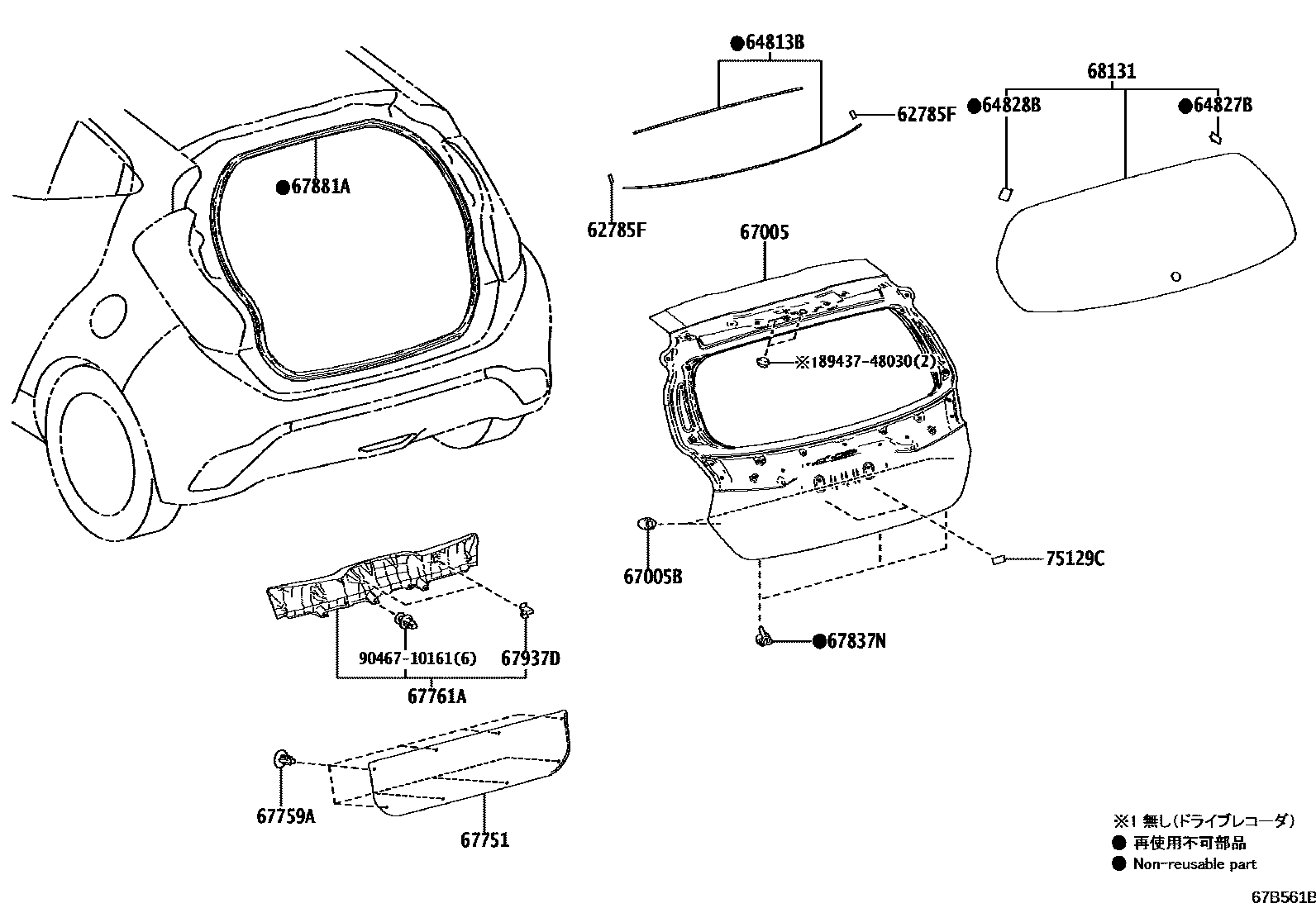

Toyota AQUA — BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64813BDAM, BACK WINDOW GLASS ADHESIVE
64827BCLIP, BACK WINDOW GLASS, RH
64828BCLIP, BACK WINDOW GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67751BOARD, BACK DOOR TRIM
DARK GRAY,TRIM2#
DARK GRAY,TRIM0#,2#,4#
67759ACLIP(FOR BACK DOOR TRIM BOARD)
67761ACOVER, BACK DOOR TRIM
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
67937DRETAINER, DOOR TRIM
68131GLASS, BACK DOOR
75129CCUSHION, REAR LICENCE PLATE
8943748030COVER, SENSOR
9046710161
16 parts on this diagram · 1 diagram in section
