Toyota AQUA — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-52Q20iMXPK1#¥37,300202106-202304

main89170-52T80iMXPK10,15¥25,400202304-202403

89173ASENSOR, AIRBAG, FRONT RH

main89173-59415iMXPK11..GRS¥4,110202106-202403

main89173-59425iMXPK1#¥37,300202111-202210

89174ASENSOR, AIRBAG, FRONT LH

main89173-59415iMXPK11,16..G,X,Z¥4,110202106-202403

main89173-59425iMXPK1#¥37,300202111-202210

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-52100iMXPK1#¥4,110202106-202403

main89831-52170iMXPK1#¥4,520202111-202210

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-52100iMXPK1#¥4,110202106-202403

main89831-52170iMXPK1#¥4,520202111-202210

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-52011iMXPK10,15¥4,110202106-202403

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-52011iMXPK10,15¥4,110202106-202403

9011908C89

main90119-08C89¥80

91553A0620

main91553-A0620¥60

9415180600

main94151-80600¥60

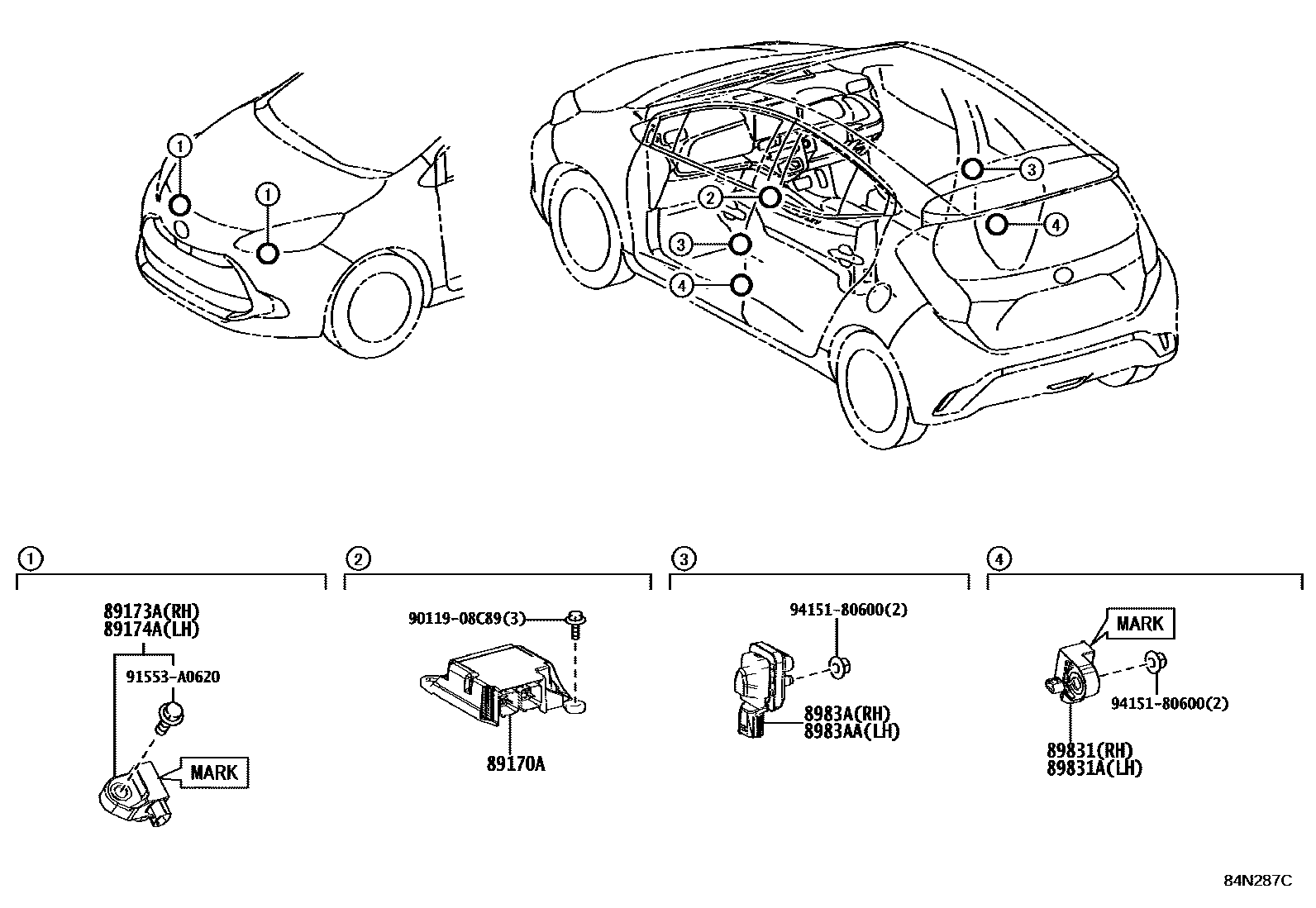

10 parts on this diagram · 1 diagram in section
