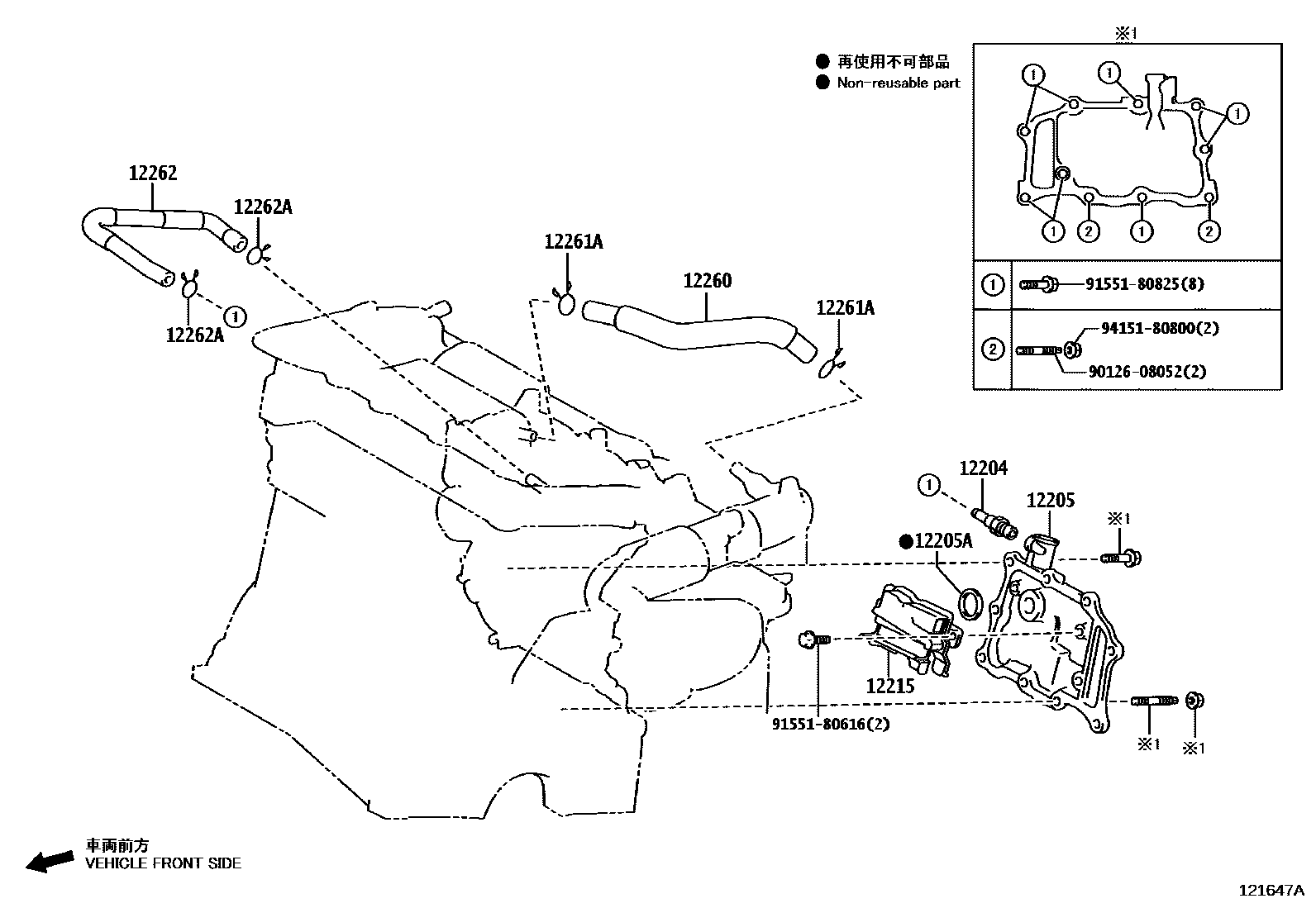

Toyota ALPHARD/VELLFIRE — VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12205CASE SUB-ASSY, VENTILATION
12205ARING, O(FOR VENTILATION CASE)
12215SEPARATOR, CASE
12260HOSE ASSY, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
9012608052
9155180616
9155180825
9415180800
12 parts on this diagram · 3 diagrams in section
