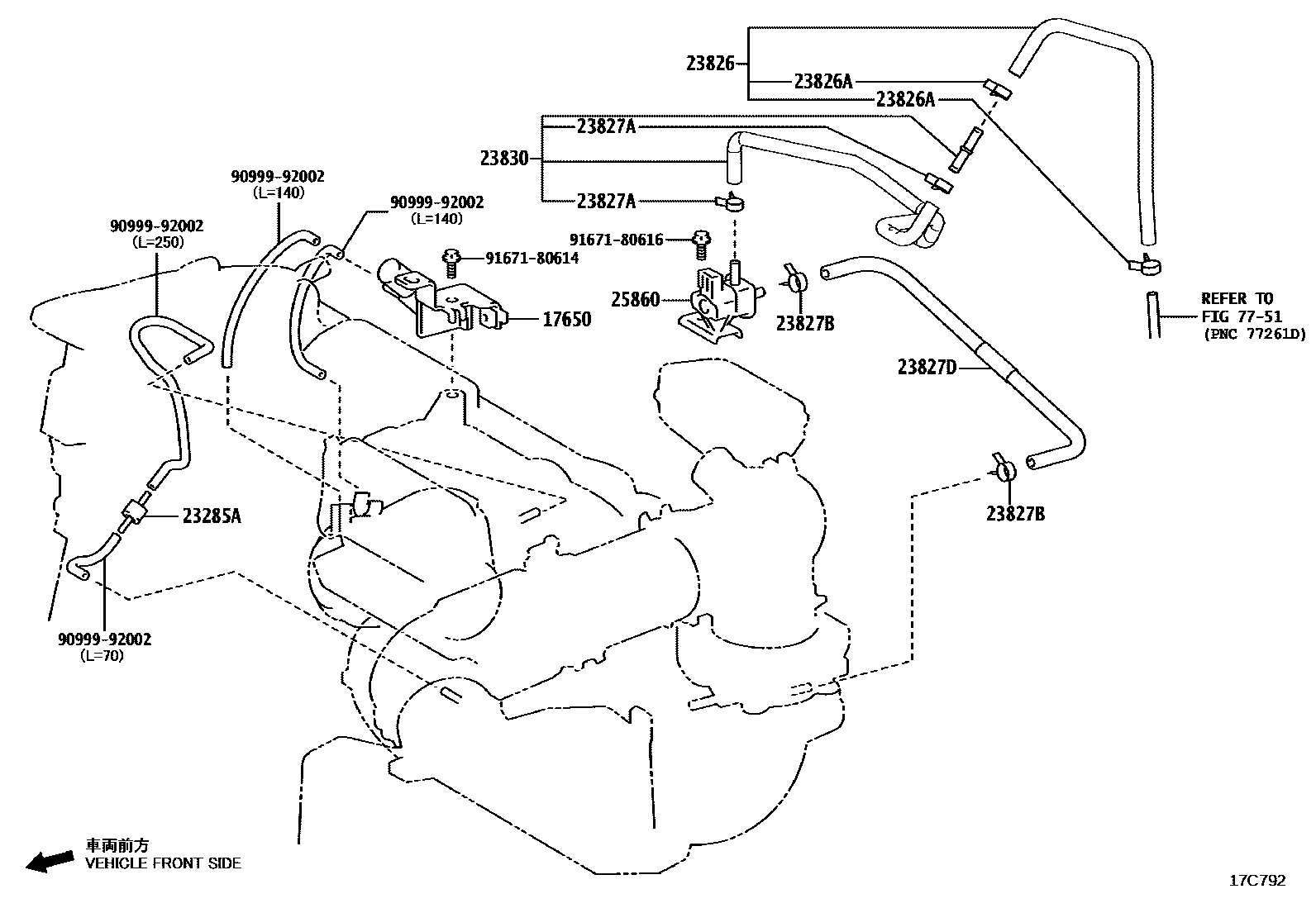

Toyota ALPHARD/VELLFIRE — VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-36010i2ARFE..AGH4#¥3,480202306

23285AVALVE, CHECK, NO.1

main90917-10065i2ARFE..AGH4#¥730202306

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25..AAHP45¥2,480202501

main23820-25150iA25..AAHH4#¥3,540202306

main23826-V2050i2ARFE..AGH4#¥850202306

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11004i2ARFE..AGH4#¥100202306

main90467-17021iA25..AAHH4#,AAHP45¥120202306

23827AHOSE, FUEL VAPOR FEED, NO.2

main90466-11004i2ARFE..AGH4#¥100202306

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13005i2ARFE..AGH4#¥120202306

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25..AAHP45¥1,590202501

main23820-25160iA25..AAHH4#¥2,200202306

main23827-36130i2ARFE..AGH4#202306

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23830-V2010i2ARFE..AGH4#¥1,610202306

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25..AAHP45¥3,480202501

main25860-25070iA25..AAHH4#¥3,480202306

main25860-25080iT24AFTS..TAHA4#¥3,480202306

main25860-36020i2ARFE..AGH4#¥3,480202306

7751

9099992002

main90999-92002¥460

9167180614

main91671-80614¥60

9167180616

main91671-80616¥60

13 parts on this diagram · 4 diagrams in section
