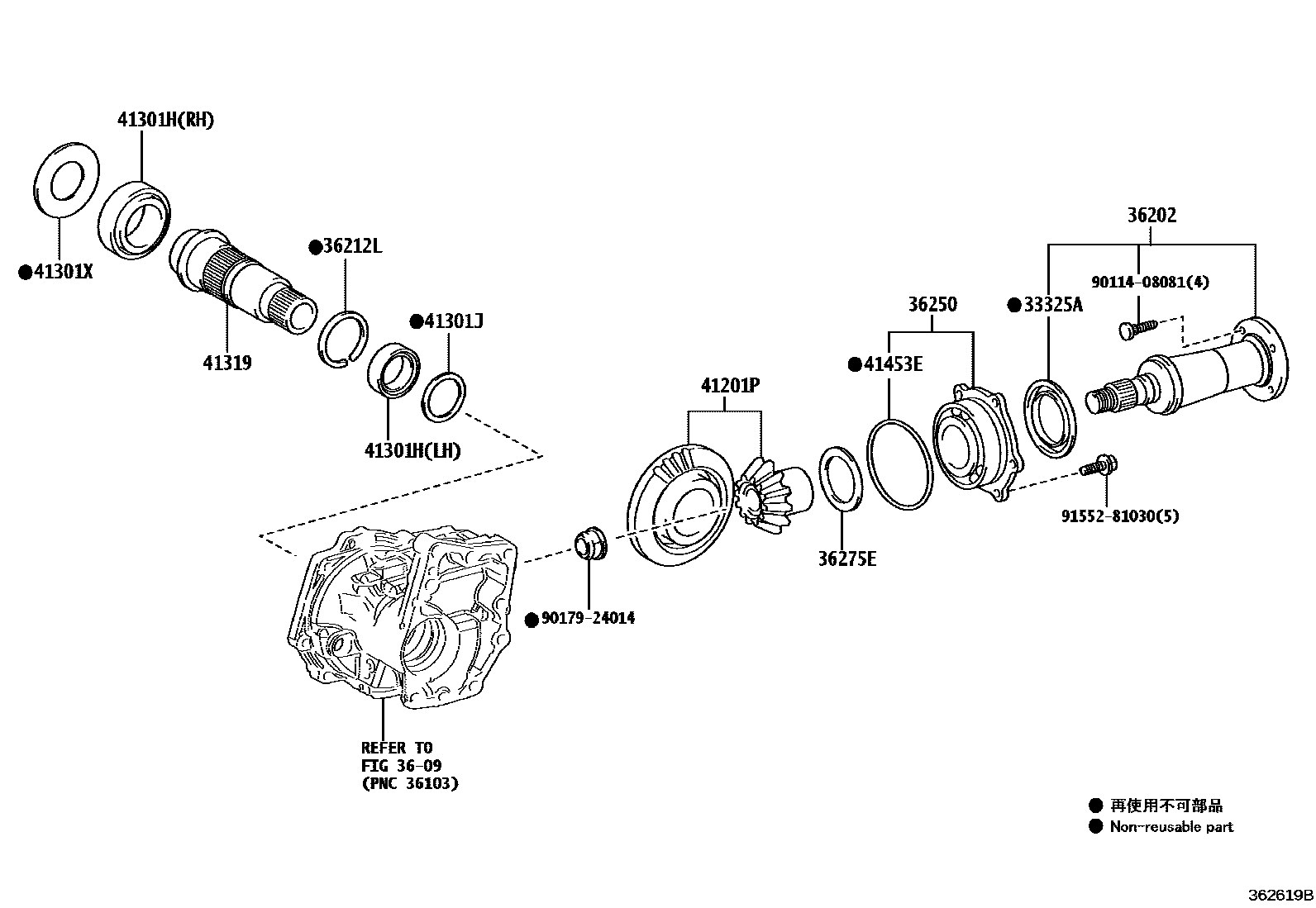

Toyota ALPHARD/VELLFIRE — TRANSFER GEAR
33325ADEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT)
3609
36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR
36212LRING, SHAFT SNAP
36250BEARING ASSY, TRANSFER
36275EWASHER, TRANSFER OUTPUT SHAFT
41201PGEAR KIT, TRANSFER
41301HBEARING(FOR RING GEAR MOUNTING CASE)
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
41319CASE, TRANSFER RING GEAR MOUNTING
41453ERING, O
9011408081
9017924014
9155281030
15 parts on this diagram · 1 diagram in section
