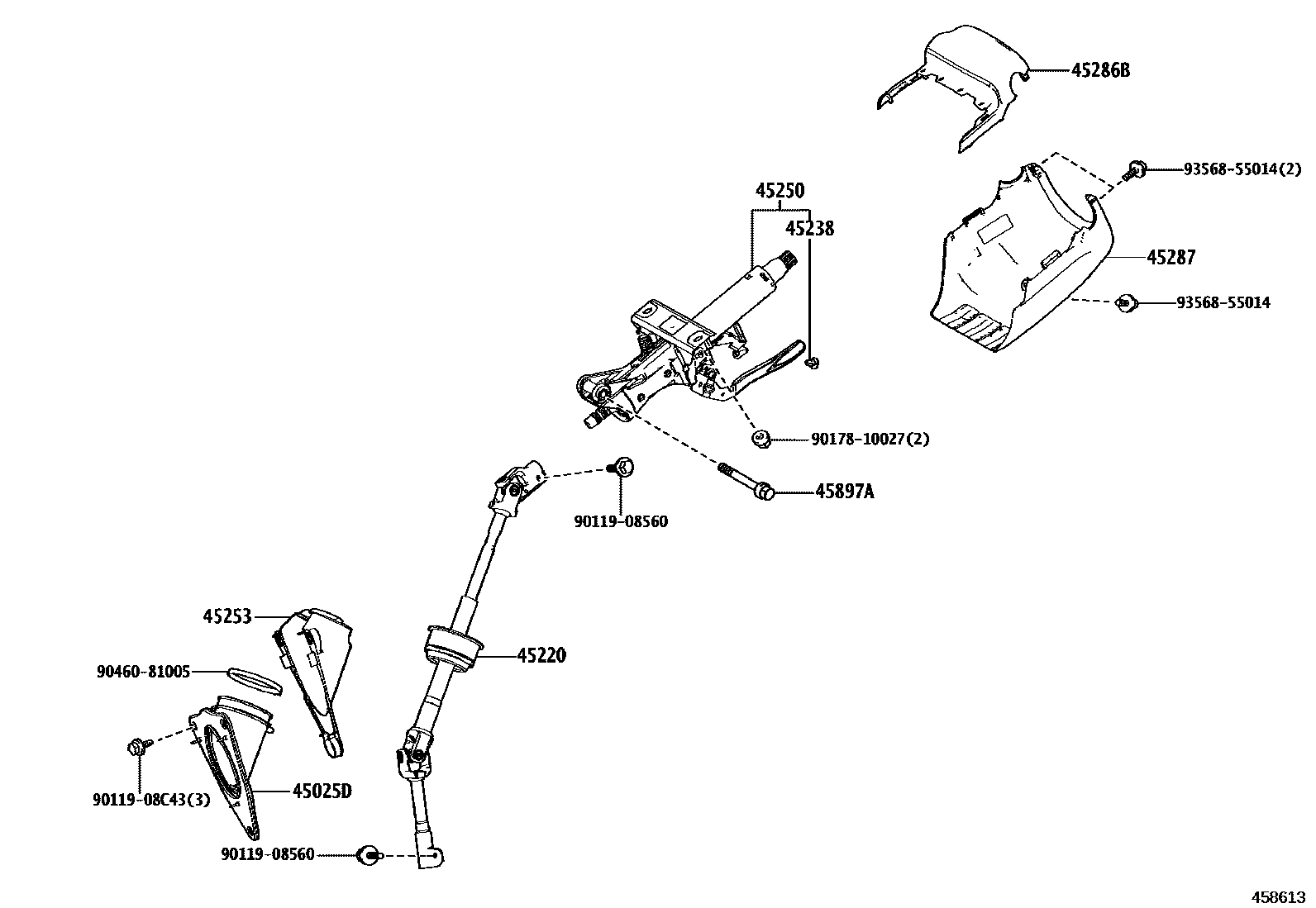

Toyota ALPHARD/VELLFIRE — STEERING COLUMN & SHAFT

0001 1�������� & �������� 0002 1��������� & ��������

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥3,050202306

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥14,200202306

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iAAHH4#,AAHP45,AGH4#,TAHA4#..EL,PREM,SL,SLS,Z¥70202306

main45238-52010iAAHH4#,AGH4#..G,X¥70202306

45250COLUMN ASSY, STEERING

main45250-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#..EL,PREM,SL,SLS,Z¥101,000202306

main45250-V2020iAAHH4#,AGH4#..G,X¥46,700202306

45253COVER, STEERING COLUMN HOLE

main45253-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥930202306

45286BCOVER, STEERING COLUMN, UPR

main45286-30A80-C0iAAHH4#,AGH4#..PREM,Z202306

BLACK,TRIM0#,2#

main45286-30A80-C0iAAHH4#,AGH4#..PREM,Z202306

BLACK,TRIM2#

main45286-30A80-C0iAAHP45..PREM;AAHH4#,AGH4#..X202306

BLACK,TRIM0#,2#,4#

main45286-30A80-C0iAAHP45..Z202501

BLACK,TRIM2#,4#

main45286-V2010-C0iAAHP45..Z;AAHH4#,AGH4#..PREM,Z202306

main45286-V2010-C0iAAHP45..Z;AAHH4#,AGH4#..PREM,Z202306

BLACK,TRIM2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-30140-C0iAAHH4#,AGH4#..X202306

BLACK,TRIM0#,2#

main45024-30140-C0iAAHH4#,AGH4#..X202306

BLACK,TRIM2#

main45024-V2030-C0iAAHH4#..PREM,Z;AAHP45,AGH4#..Z202306

BLACK,TRIM2#

main45024-V2030-C0iAAHH4#..PREM,Z;AAHP45,AGH4#..Z202306

main45024-V2030-C0iTAHA4#;AAHH4#,AAHP45..EL,SL,SLS202306

BLACK,TRIM2#,4#

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iAAHH4#,AAHP45,AGH4#,TAHA4#¥190202306

9011908560

main90119-08560¥110

9011908C43

main90119-08C43¥100

9017810027

main90178-10027¥100

9046081005

main90460-81005¥310

9356855014

main93568-55014¥70

13 parts on this diagram · 2 diagrams in section
