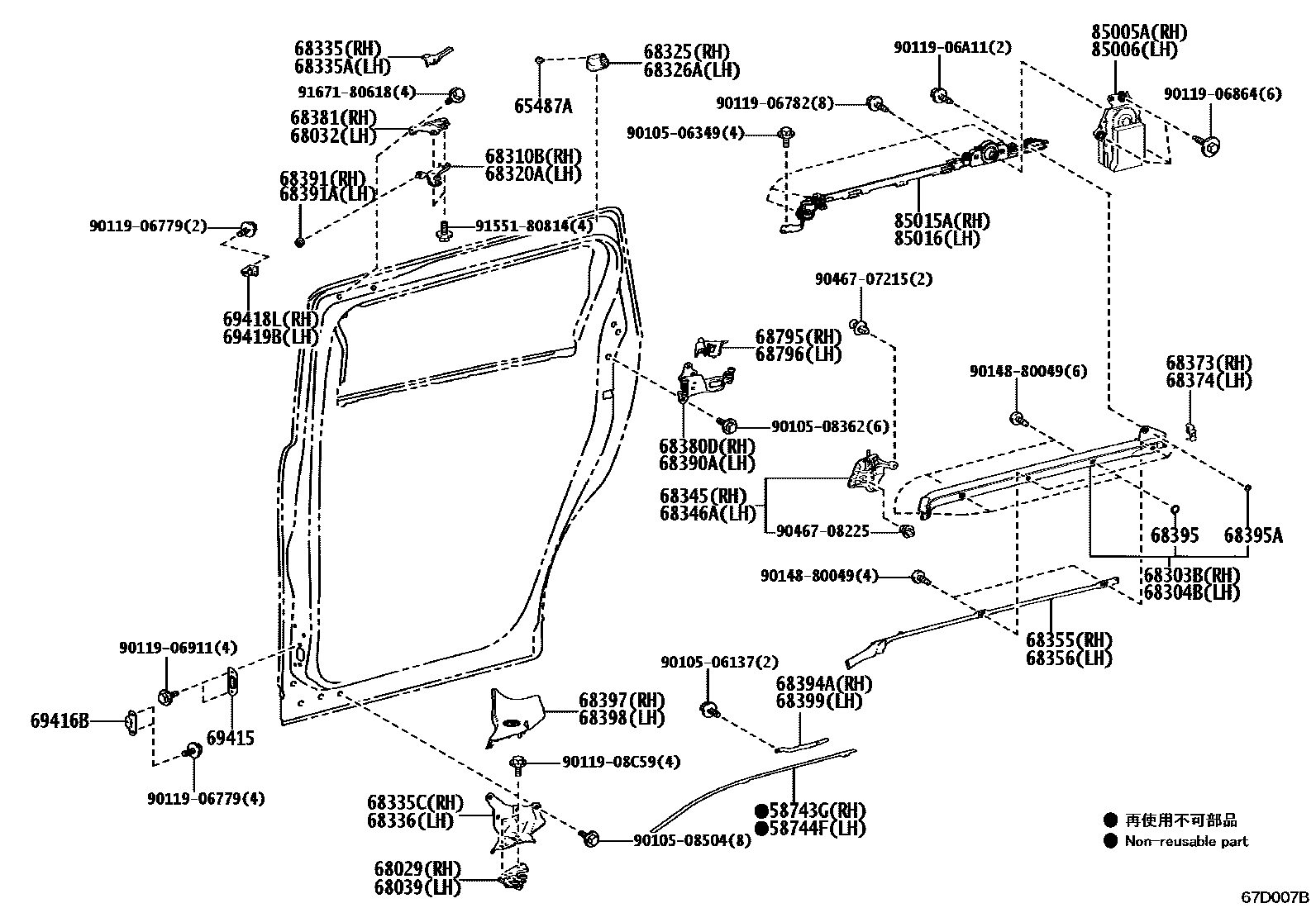

Toyota ALPHARD/VELLFIRE — SLIDE ROLLER & RAIL

58743GPROTECTOR, SLIDE DOOR PANEL, RH

main58743-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥3,520202306

58744FPROTECTOR, SLIDE DOOR PANEL, LH

main58744-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥3,520202306

65487ACLIP, CORNER PROTECTOR

main65487-28010iAAHH4#,AGH4#,TAHA4#..07S,08S¥130202306

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥3,240202306

68032ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH

main68382-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥970202306

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥3,240202306

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥8,000202306

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥8,000202306

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68301-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥1,440202306

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68302-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥1,440202306

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥1,290202306

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥1,290202306

68335PAD, SLIDE DOOR UPPER RAIL

main68391-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥330202306

68335APAD, SLIDE DOOR UPPER RAIL, LH

main68392-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥330202306

68335CARM, SLIDE DOOR LOWER ROLLER, RH

main68335-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥3,330202306

68336ARM, SLIDE DOOR LOWER ROLLER, LH

main68336-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥3,330202306

68345COVER, SLIDE DOOR CENTER RAIL

main68345-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥1,290202306

68346ACOVER, SLIDE DOOR CENTER RAIL, LH

main68346-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥1,290202306

68355GARNISH, SLIDE DOOR CENTER RAIL, RH

main60835-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥2,900202306

68356GARNISH, SLIDE DOOR CENTER RAIL, LH

main60836-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥2,900202306

68373MOULDING, SLIDE RAIL END, RH

main68373-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥340202306

68374MOULDING, SLIDE RAIL END, LH

main68374-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥340202306

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥4,400202306

68381ARM, SLIDE DOOR UPPER ROLLER, RH

main68381-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥970202306

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥4,400202306

68391CUSHION, SLIDE DOOR UPPER ROLLER, RH

main68391-28040iAAHH4#,AGH4#,TAHA4#..07S,08S¥200202306

68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH

main68391-28040iAAHH4#,AGH4#,TAHA4#..07S,08S¥200202306

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥370202306

68395PACKING, SLIDE DOOR CENTER RAIL

main68395-52020iAAHH4#,AGH4#,TAHA4#..07S,08S¥270202306

68395APACKING, SLIDE DOOR CENTER RAIL

main68395-52050iAAHH4#,AGH4#,TAHA4#..07S,08S¥240202306

68397COVER, SLIDE DOOR LOWER ROLLER, RH

main68397-V2030iAAHH4#,AGH4#,TAHA4#..07S,08S¥2,090202306

68398COVER, SLIDE DOOR LOWER ROLLER, LH

main68398-V2030iAAHH4#,AGH4#,TAHA4#..07S,08S¥2,090202306

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥370202306

68795COVER, DOOR HINGE, NO.1 RH

main68795-V2020iAAHH4#,AGH4#,TAHA4#..07S,08S¥640202306

68796COVER, DOOR HINGE, NO.1 LH

main68796-V2020iAAHH4#,AGH4#,TAHA4#..07S,08S¥640202306

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥720202306

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69046-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥610202306

69418LSTOP, SLIDE DOOR OPEN, RH

main69418-V2010iAAHH4#,AGH4#,TAHA4#¥550202306-202401

sub69418-V2011¥500

main69418-V2011iAAHH4#,AGH4#,TAHA4#..07S,08S¥500202402

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-V2010iAAHH4#,AGH4#,TAHA4#¥550202306-202401

sub69419-V2011¥500

main69419-V2011iAAHH4#,AGH4#,TAHA4#..07S,08S¥500202402

85005AMOTOR UNIT, SLIDE DOOR, RH

main85005-V2010iAAHH4#,AGH4#,TAHA4#..G,PREM,X,Z¥59,800202306-202501

main85005-V2030iAAHH4#,TAHA4#..EL¥59,800202306-202501

main85005-V2040iAAHH4#,AAHP45,AGH4#,TAHA4#..G,PREM,X,Z¥54,300202501

main85005-V2050iAAHH4#,AAHP45,TAHA4#..EL,SL,SLS¥54,300202501

85006MOTOR UNIT, SLIDE DOOR, LH

main85006-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#..G,PREM,X,Z¥54,300202306

main85006-V2030iAAHH4#,AAHP45,TAHA4#..EL,SL,SLS¥54,300202306

85015ACABLE SUB-ASSY, POWER SLIDE DOOR, RH

main85015-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥10,600202306

85016CABLE SUB-ASSY, POWER SLIDE DOOR, LH

main85016-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥10,600202306

9010506137

main90105-06137¥70

9010506349

main90105-06349¥60

9010508362

main90105-08362¥80

9010508504

main90105-08504¥80

9011906779

main90119-06779¥60

9011906782

main90119-06782¥60

9011906864

main90119-06864¥80

9011906911

main90119-06911¥80

9011906A11

main90119-06A11¥60

9011908C59

main90119-08C59¥80

9014880049

main90148-80049¥60

9046707215

main90467-07215¥80

9046708225

main90467-08225¥60

9155180814

main91551-80814¥80

9167180618

main91671-80618¥60

58 parts on this diagram · 1 diagram in section
