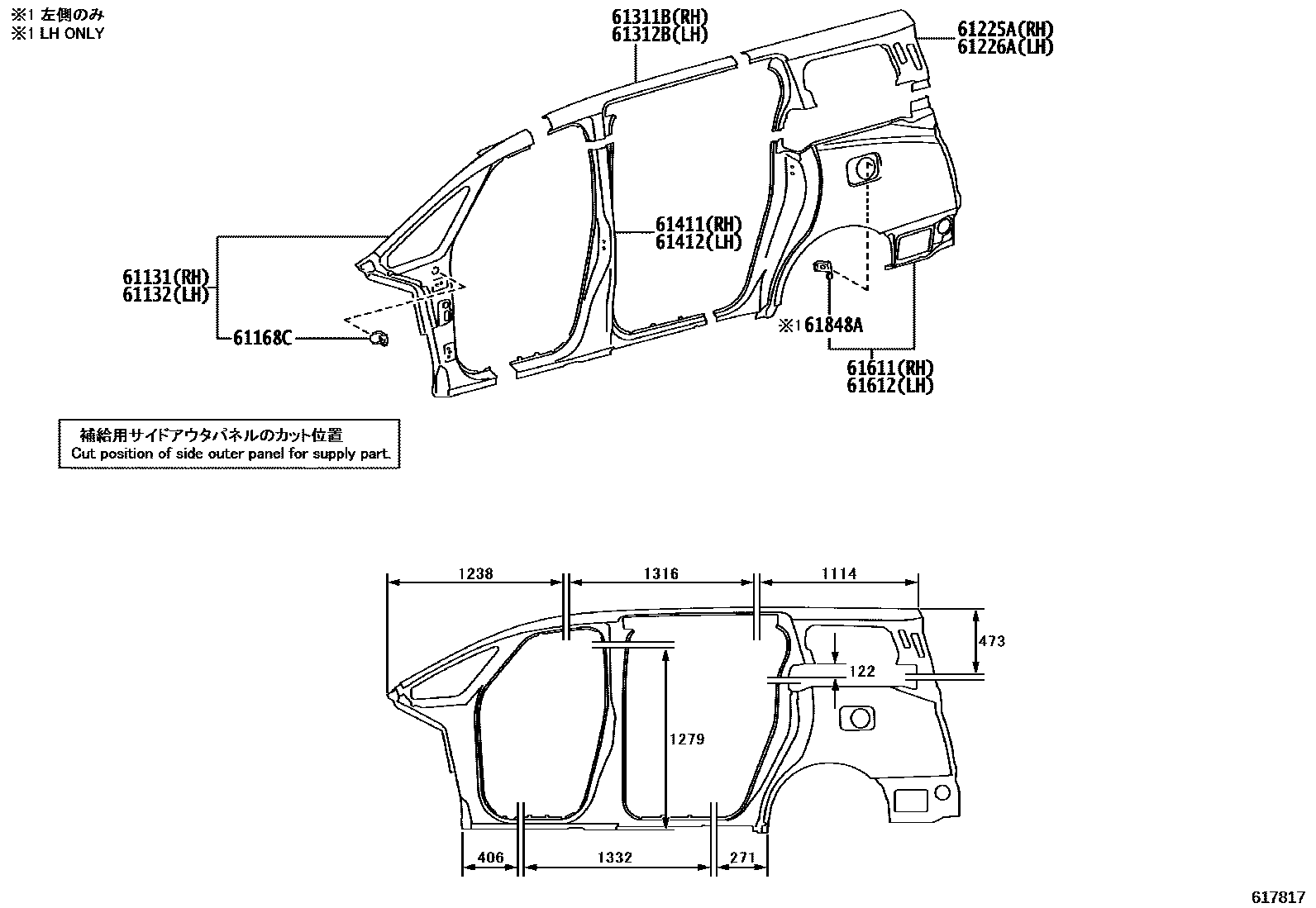

Toyota ALPHARD/VELLFIRE — SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61106-V2020iAAHH4#,AGH4#,TAHA4#..07S,08S¥15,200202306

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61107-V2020iAAHH4#,AGH4#,TAHA4#..07S,08S¥15,200202306

61168CBRACKET, NO.6 PILLAR OUTER

main61168-44010iAAHH4#,AGH4#,TAHA4#..07S,08S¥230202306

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥6,800202306

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥6,800202306

61311BPILLAR, CENTER BODY, OUTER RH

main61311-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥11,200202306

61312BPILLAR, CENTER BODY, OUTER LH

main61312-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥11,200202306

61411PANEL, ROCKER, OUTER RH

main61411-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥16,700202306

61412PANEL, ROCKER, OUTER LH

main61412-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥16,700202306

61611PANEL, QUARTER, RH

main61601-V2020iAAHH4#,AGH4#,TAHA4#..07S,08S¥44,700202306

main61601-V2050iAAHP45202501

61612PANEL, QUARTER, LH

main61602-V2020iAAHH4#,AGH4#,TAHA4#..07S,08S¥44,700202306

61848ARETAINER, QUARTER PANEL, LH

main61848-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥350202306

12 parts on this diagram · 3 diagrams in section
