Toyota ALPHARD/VELLFIRE — SHORT BLOCK ASSEMBLY

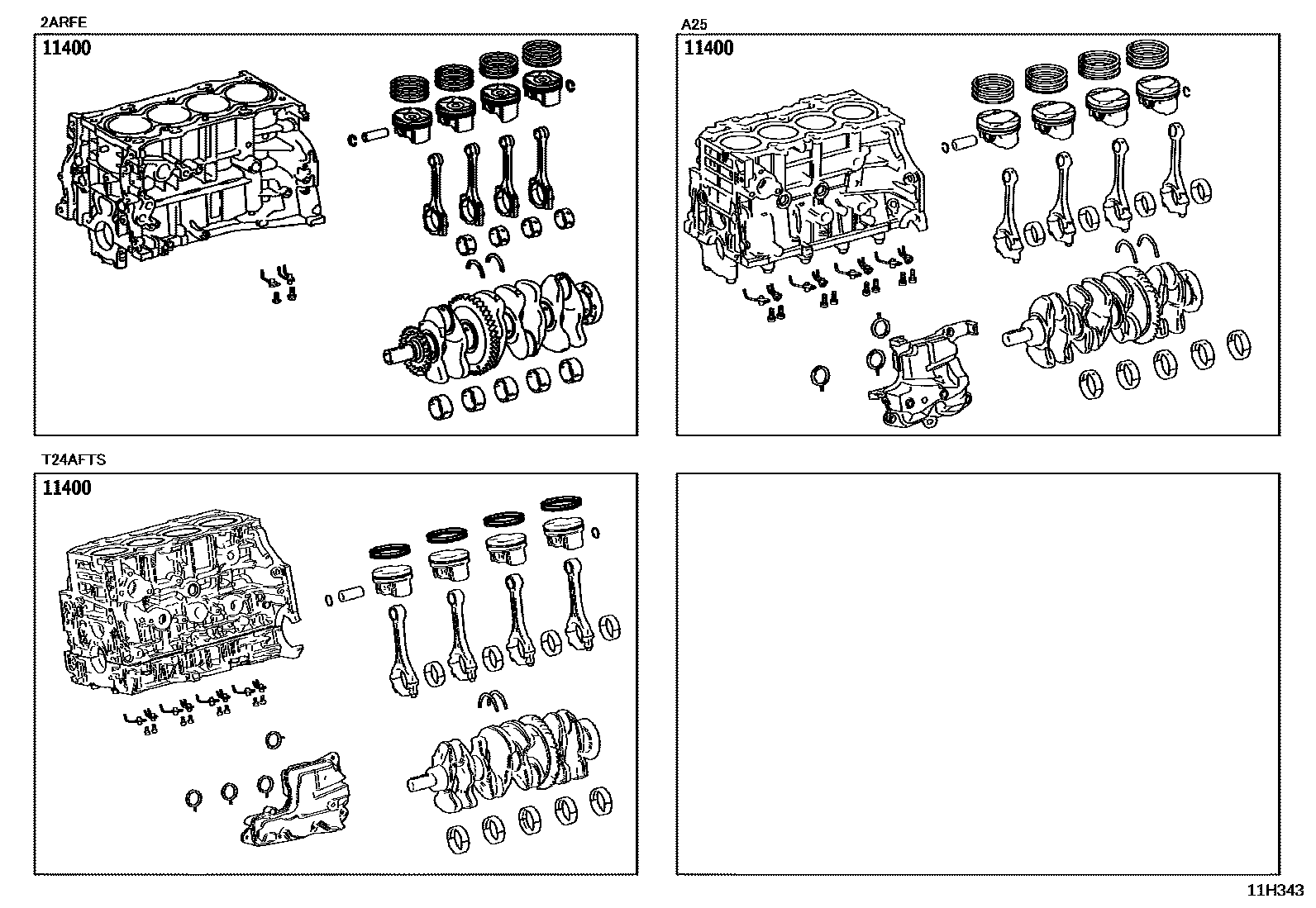

Parts diagram

11400BLOCK ASSY, SHORT

main11400-25170i¥265,000202306

main11400-2E010i¥273,000202306

main11400-36240i¥274,000202306

1 parts on this diagram · 1 diagram in section
