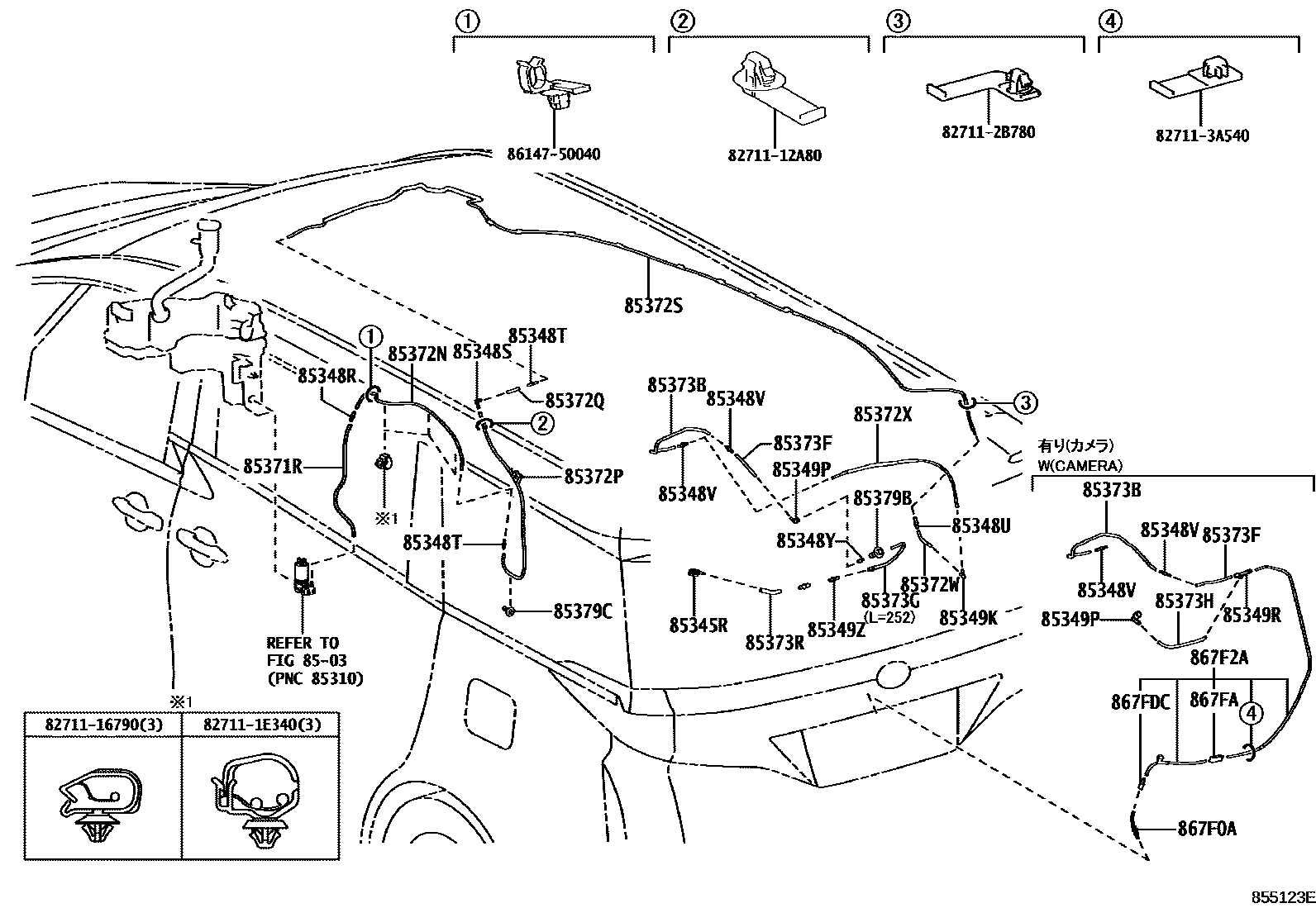

Toyota ALPHARD/VELLFIRE — REAR WASHER
8503
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85349RJOINT, REAR WASHER HOSE, NO.5
85349ZJOINT, REAR WASHER HOSE, NO.6
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8
85373GHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.9
85373HHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.10
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85379BGROMMET, WASHER, A
85379CGROMMET, REAR WASHER HOSE NO.1
867F0ANOZZLE ASSY, CAMERA CLEANER, NO.1
867F2AHOSE ASSY, CAMERA CLEANER
867FAFILTER, CLEANER HOSE
867FDCJOINT, LIDAR CLEANER HOSE, REAR NO.7
8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8614750040
36 parts on this diagram · 1 diagram in section
