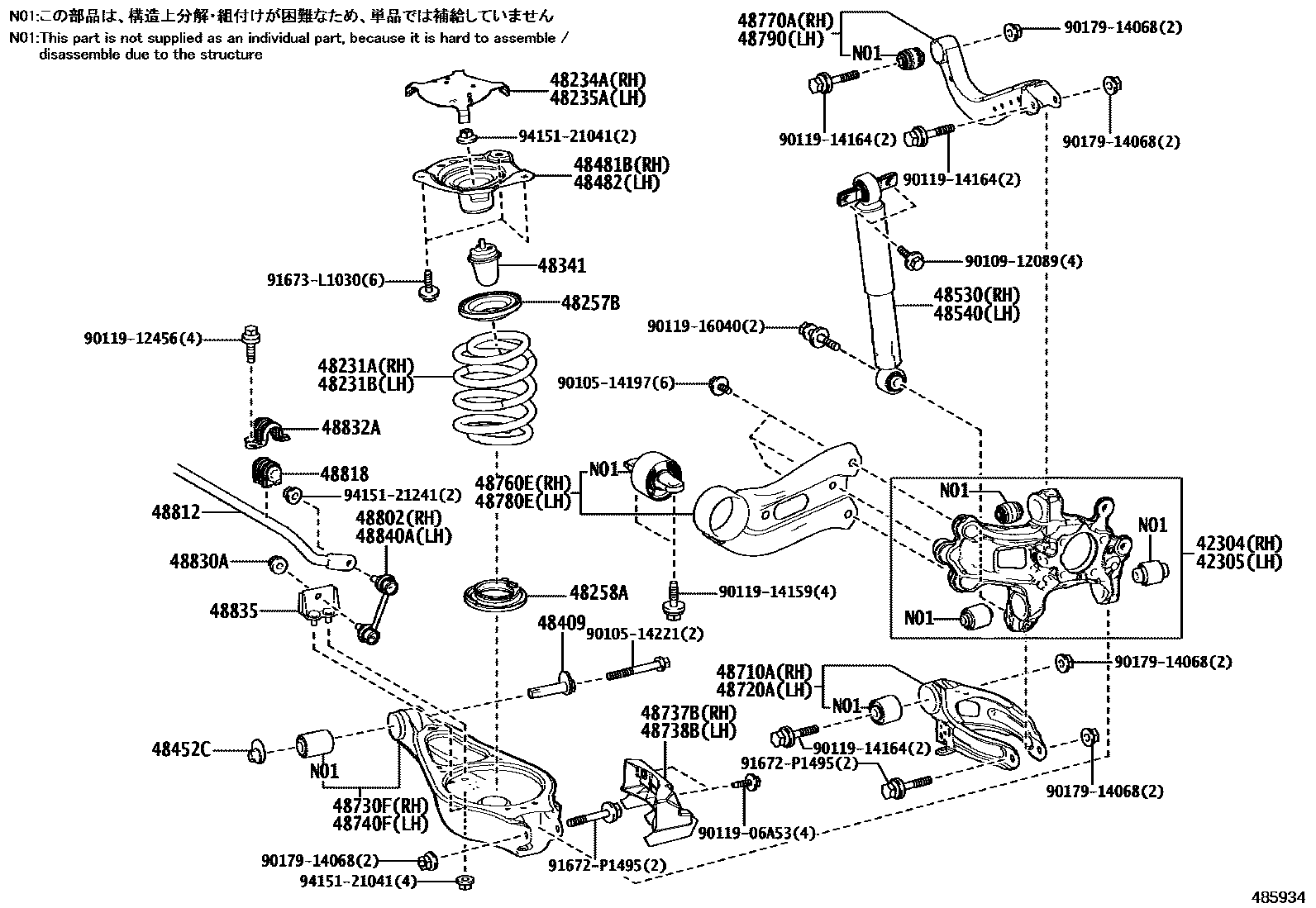

Toyota ALPHARD/VELLFIRE — REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥25,700202306

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥25,700202306

48231ASPRING, COIL, REAR RH

main48231-V2010iAGH40¥8,000202306

main48231-V2030iAGH45¥8,000202306

main48231-V2040iTAHA40;AAHH40..G,PREM,X,Z¥8,600202306

main48231-V2060iAAHH40..EL¥8,600202306

main48231-V2080iTAHA45;AAHH45..G,PREM,X,Z¥8,800202306

main48231-V2100iAAHH45..EL¥8,800202306

main48231-V2210iAAHP45..PREM,Z202501

main48231-V2260iAAHP45..EL,SL,SLS202501

48231BSPRING, COIL, REAR LH

main48231-V2010iAGH40¥8,000202306

main48231-V2030iAGH45¥8,000202306

main48231-V2040iTAHA40;AAHH40..G,PREM,X,Z¥8,600202306

main48231-V2060iAAHH40..04S¥8,600202306

main48231-V2080iTAHA45;AAHH45..G,PREM,X,Z¥8,800202306

main48231-V2100iAAHH45..04S¥8,800202306

main48231-V2210iAAHP45..PREM,Z202501

main48231-V2260iAAHP45..EL,SL,SLS202501

48234ACOVER, SEAT COIL SPRING, REAR RH

main48234-58010iAAHH4#,AGH4#,TAHA4#..07S,08S¥860202306

48235ACOVER, SEAT COIL SPRING, REAR LH

main48235-58010iAAHH4#,AGH4#,TAHA4#..07S,08S¥860202306

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-58010iAAHH4#,AGH4#,TAHA4#..07S,08S¥640202306

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥640202306

48341BUMPER, REAR SPRING

main48341-58010iAAHH4#,AGH4#,TAHA4#..07S,08S¥1,440202306

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥650202306

48452CPLATE, REAR SUSPENSION TOE ADJUST

main48452-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥650202306

48481BSEAT, REAR SPRING, UPPER RH

main48481-58010iAAHH4#,AGH4#,TAHA4#..07S,08S¥2,560202306

48482SEAT, REAR SPRING, UPPER LH

main48482-58010iAAHH4#,AGH4#,TAHA4#..07S,08S¥2,560202306

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-V2010iAGH40..ALPHD¥5,300202306

main48530-V2030iAGH45..ALPHD¥5,300202306

main48530-V2040iAAHH40..ALPHD..(G,X,Z)¥5,300202306

main48530-V2060iAAHH40..SL¥5,300202306

main48530-V2080iAAHH45..ALPHD..(G,X,Z)¥5,300202306

main48530-V2100iAAHH45..ALPHD..EL¥5,900202306-202405

main48530-V2180iAGH40..VFIRE¥5,300202306

main48530-V2190iAGH45..VFIRE¥5,300202306

main48530-V2200iAAHH40,TAHA40..VFIRE..(G,PREM,Z)¥5,300202306

main48530-V2210iAAHH40,TAHA40..VFIRE..EL¥5,300202306

main48530-V2220iAAHH45,TAHA45..VFIRE..(G,PREM,Z)¥5,300202306

main48530-V2230iAAHH45,TAHA45..VFIRE..EL¥5,300202306

main48530-V2240iAAHP45..VFIRE202501

main48530-V2260iAAHP45..ALPHD202501

main48530-V2280iAAHH45..ALPHD..EL¥5,300202405

main48530-V2290iAAHH45..SL202501

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-V2010iAGH40..ALPHD¥5,300202306

main48530-V2030iAGH45..ALPHD¥5,300202306

main48530-V2040iAAHH40..ALPHD..(G,X,Z)¥5,300202306

main48530-V2060iAAHH40..ALPHD..EL¥5,300202306

main48530-V2080iAAHH45..ALPHD..(G,X,Z)¥5,300202306

main48530-V2100iAAHH45..ALPHD..EL¥5,900202306-202405

main48530-V2180iAGH40..VFIRE¥5,300202306

main48530-V2190iAGH45..VFIRE¥5,300202306

main48530-V2200iAAHH40,TAHA40..VFIRE..(G,PREM,Z)¥5,300202306

main48530-V2210iAAHH40,TAHA40..VFIRE..EL¥5,300202306

main48530-V2220iAAHH45,TAHA45..VFIRE..(G,PREM,Z)¥5,300202306

main48530-V2230iAAHH45,TAHA45..VFIRE..EL¥5,300202306

main48530-V2240iAAHP45..VFIRE202501

main48530-V2260iAAHP45..ALPHD202501

main48530-V2280iAAHH45..ALPHD..EL¥5,300202405

main48530-V2290iAAHH45..SL202501

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-V2010iAAHH4#,AAHP45..04S,06S¥6,100202306

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48720-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥6,100202306

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥8,000202306

48737BCOVER, LOWER CONTROL ARM, RH NO.1

main48737-V2010iAAHH4#,AAHP45..04S,06S¥1,800202306

48738BCOVER, LOWER CONTROL ARM, LH NO.1

main48738-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥1,800202306

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥8,000202306

48760EARM ASSY, TRAILING, REAR RH

main48760-58010iAAHH4#,AGH4#,TAHA4#..07S,08S¥5,900202306

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥6,300202306

48780EARM ASSY, TRAILING, REAR LH

main48780-58010iAAHH4#,AGH4#,TAHA4#..07S,08S¥5,900202306

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S¥6,300202306

48802LINK SUB-ASSY, STABILIZER

main48802-48010iAAHH4#,AGH4#,TAHA4#..07S,08S¥2,020202306

48812BAR, STABILIZER, REAR

main48812-V2010iAGH4#¥5,800202306

main48812-V2020iAAHH4#,TAHA4#..07S,08S¥5,300202306

48818BUSH, STABILIZER, REAR

main48818-V2010iAGH4#¥770202306

main48818-V2020iAAHH4#,TAHA4#..07S,08S¥760202306

48830ANUT(FOR REAR STABILIZER LINK)

main90178-12019iAAHH4#,AGH4#,TAHA4#..07S,08S¥120202306

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-58010iAAHH4#,AGH4#,TAHA4#..07S,08S¥680202306

48835BRACKET, REAR STABILIZER, LOWER

main48835-48010iAAHH4#,AGH4#,TAHA4#..07S,08S¥900202306

48840ALINK ASSY, REAR STABILIZER, LH

main48803-48010iAAHH4#,AGH4#,TAHA4#..07S,08S¥2,020202306

9010514197

main90105-14197¥190

9010514221

main90105-14221¥360

9010912089

main90109-12089¥190

9011906A53

main90119-06A53¥90

9011912456

main90119-12456¥160

9011914159

main90119-14159¥310

9011914164

main90119-14164¥360

9011916040

main90119-16040¥430

9017914068

main90179-14068¥120

91672P1495

main91672-P1495¥360

91673L1030

main91673-L1030¥120

9415121041

main94151-21041¥100

9415121241

main94151-21241¥100

45 parts on this diagram · 1 diagram in section
