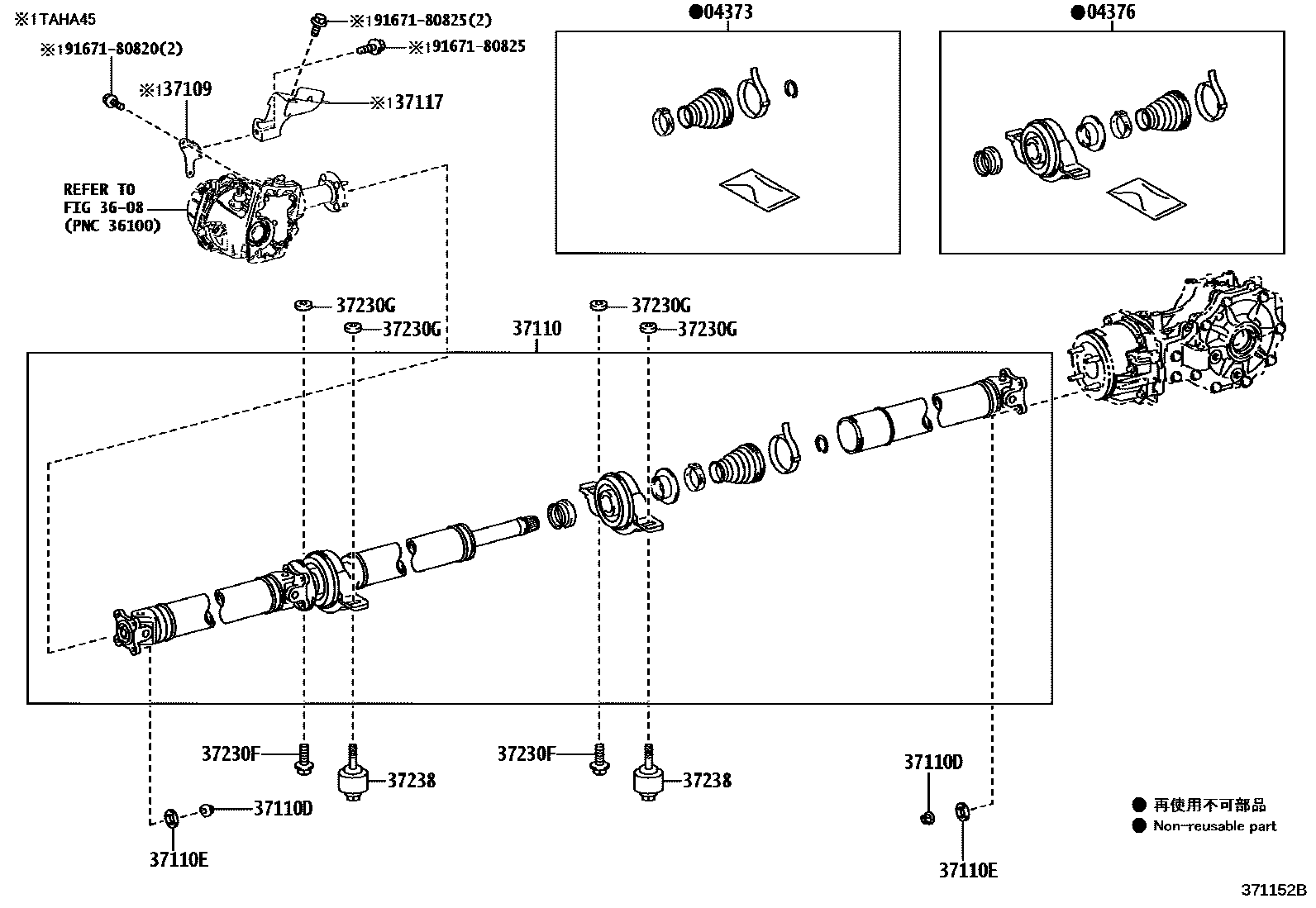

Toyota ALPHARD/VELLFIRE — PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-48010iAGH45,TAHA45¥2,610202306-202411

main04373-48011iAGH45,TAHA45¥2,370202412

04376BEARING KIT, CENTER SUPPORT

main04376-48010iAGH45,TAHA45¥13,800202306-202411

main04376-48011iAGH45,TAHA45¥12,400202412

3608

37109BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1

main37109-42010iTAHA45¥580202306

37110SHAFT ASSY, PROPELLER

main37100-V2010iAGH45,TAHA45¥89,800202306

37110DNUT (FOR PROPELLER SHAFT)

main90179-08197iAGH45,TAHA45¥90202306

37110EWASHER (FOR PROPELLER SHAFT)

main90201-08097iAGH45,TAHA45¥80202306

37117INSULATOR, PROPELLER SHAFT HEAT

main37117-78010iTAHA45¥1,210202306

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444iAGH45,TAHA45¥160202306

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iAGH45,TAHA45¥190202306

main90201-10083iTAHA45¥240202306

main90201-10084iTAHA45¥320202306

main90201-10123iTAHA45¥120202306

37238DAMPER, CENTER SUPPORT BEARING

main37209-26010iAGH45,TAHA45202306

9167180820

main91671-80820¥80

9167180825

main91671-80825¥80

13 parts on this diagram · 1 diagram in section
