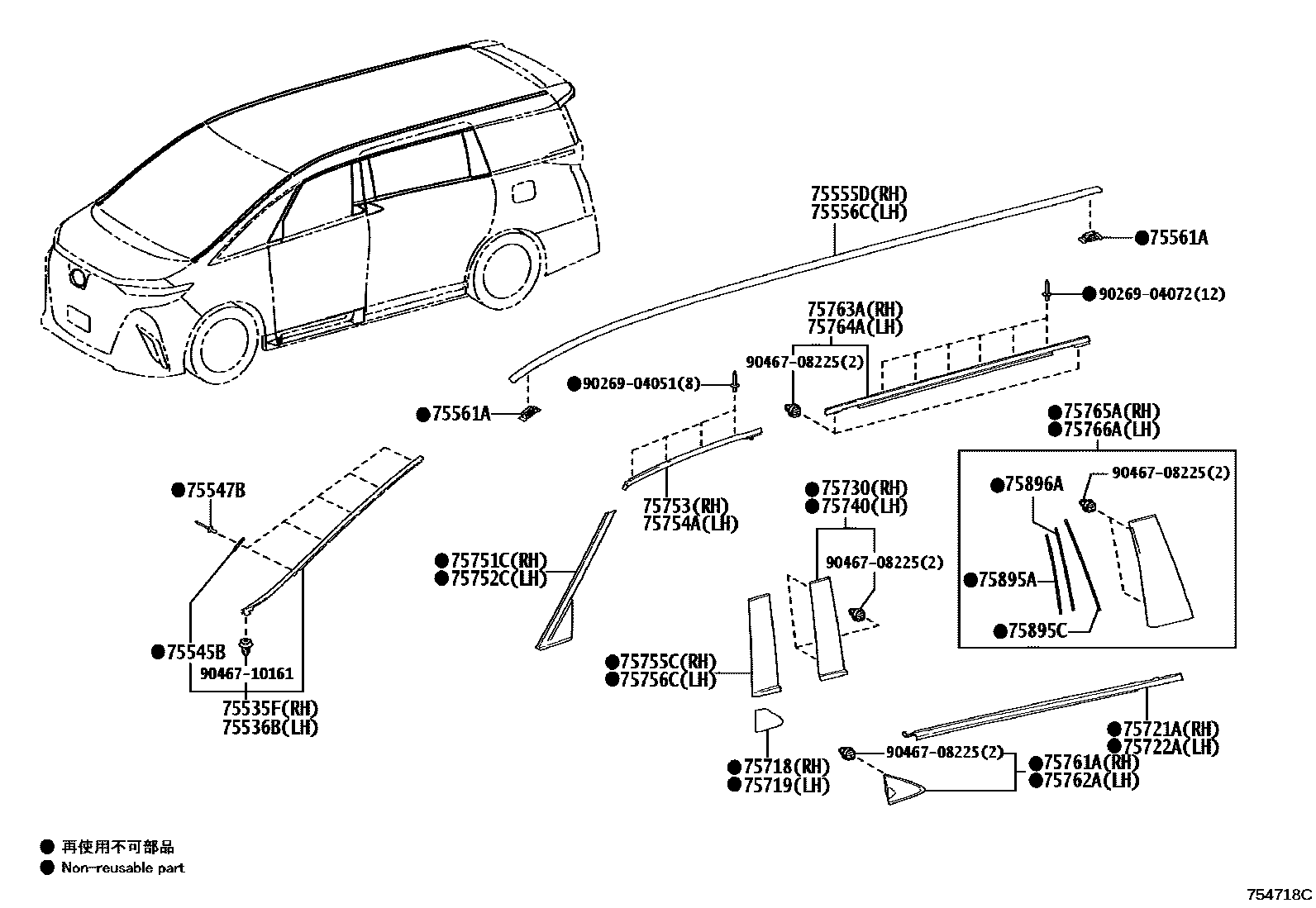

Toyota ALPHARD/VELLFIRE — MOULDING

0001 1��� & ������������ 0002 1������������

75535FMOULDING, WINDSHIELD, OUTSIDE LOWER RH

main75535-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥3,190202306

75536BMOULDING, WINDSHIELD, OUTSIDE LOWER LH

main75536-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥3,190202306

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-10020iAAHH4#,AAHP45,AGH4#,TAHA4#¥210202306

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-51021iAAHH4#,AAHP45,AGH4#,TAHA4#¥210202306

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-V2010iAAHH4#,AGH4#,TAHA4#¥12,800202306-202403

sub75555-V2011¥11,600

main75555-V2011iAAHH4#,AAHP45,AGH4#,TAHA4#¥11,600202404

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-V2010iAAHH4#,AGH4#,TAHA4#¥12,800202306-202403

sub75556-V2011¥11,600

main75556-V2011iAAHH4#,AAHP45,AGH4#,TAHA4#¥11,600202404

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-48020iAAHH4#,AAHP45,AGH4#,TAHA4#¥110202306

75718COVER, FRONT DOOR BELT MOULDING END, REAR RH

main75718-V2010iAAHH4#,AAHP45,AGH4#..ALPHD¥4,860202306

main75718-V2030iAAHH4#,AAHP45,AGH4#,TAHA4#..VFIRE¥4,860202306

75719COVER, FRONT DOOR BELT MOULDING END, REAR LH

main75719-V2010iAAHH4#,AAHP45,AGH4#..ALPHD¥4,860202306

main75719-V2030iAAHH4#,AAHP45,AGH4#,TAHA4#..VFIRE¥4,860202306

75721AMOULDING, REAR DOOR BELT, RH

main75721-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥8,300202306

75722AMOULDING, REAR DOOR BELT, LH

main75722-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥8,300202306

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥2,690202306

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥2,690202306

75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥2,690202306

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥2,690202306

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-V2010iTAHA4#..EL;AAHH4#,AAHP45,AGH4#¥1,850202306

main75753-V2030iTAHA4#..Z¥5,600202306

�@�V���{���O���[�h

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-V2010iTAHA4#..EL;AAHH4#,AAHP45,AGH4#¥1,850202306

main75754-V2030iTAHA4#..Z¥5,600202306

�@�V���{���O���[�h

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥2,690202306

�h���s�v

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥2,690202306

�h���s�v

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-V2010iTAHA4#..EL;AAHH4#,AAHP45,AGH4#¥1,800202306

���b�L

main75761-V2020iTAHA4#..Z¥1,800202306

���b�L

main75761-V2020iTAHA4#..Z¥1,800202306

���b�L,�@�V���{���O���[�h

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-V2010iTAHA4#..EL;AAHH4#,AAHP45,AGH4#¥1,800202306

���b�L

main75762-V2020iTAHA4#..Z¥1,800202306

���b�L

main75762-V2020iTAHA4#..Z¥1,800202306

���b�L,�@�V���{���O���[�h

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-V2010iTAHA4#..EL;AAHH4#,AAHP45,AGH4#¥4,300202306

main75763-V2030iTAHA4#..Z¥13,000202306

�@�V���{���O���[�h

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-V2010iTAHA4#..EL;AAHH4#,AAHP45,AGH4#¥4,300202306

main75764-V2030iTAHA4#..Z¥13,000202306

�@�V���{���O���[�h

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥4,810202306

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥4,810202306

75895ATAPE, MOULDING, NO.1

main75896-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥430202306

75895CTAPE, MOULDING, NO.3

main75896-V2030iAAHH4#,AAHP45,AGH4#,TAHA4#¥430202306

75896ATAPE, MOULDING, NO.2

main75896-V2020iAAHH4#,AAHP45,AGH4#,TAHA4#¥430202306

9026904051

main90269-04051¥40

9026904072

main90269-04072¥50

9046708225

main90467-08225¥60

9046710161

main90467-10161¥90

32 parts on this diagram · 2 diagrams in section
