Toyota ALPHARD/VELLFIRE — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-V2010iAAHH4#,AAHP45,AGH4#..G,PREM,X,Z¥7,500202306

main69005-V2020iTAHA4#;AAHH4#,AAHP45..EL,SL,SLS¥9,700202306

69503BKEY, CUT

main69515-K0010iAAHH4#,AAHP45,AGH4#,TAHA4#¥7,100202306

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#¥10,400202306

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iTAHA4#;AAHH4#,AAHP45..EL,SL,SLS¥10,000202306

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-V1030iAAHH4#,AGH4#..G,X¥3,980202306

main89072-V2060iAAHH4#,AAHP45,AGH4#..ALPHD..(EL,SL,Z)¥7,400202306

main89072-V2230iAAHH4#,AGH4#..VFIRE..G¥7,400202306

89745CBATTERY, TRANSMITTER

main89745-K0010iAAHH4#,AAHP45,AGH4#,TAHA4#¥440202306

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-V1030iAAHH4#,AGH4#..G,X¥16,100202306-202407

sub8990H-V1032¥14,600

main8990H-V1032iAAHH4#,AGH4#..G,X¥14,600202408

main8990H-V2010iAAHH4#,AGH4#..ALPHD..G¥21,300202306-202405

sub8990H-V2011¥19,300

main8990H-V2011iAAHH4#,AAHP45,AGH4#..ALPHD..(EL,SL,Z)¥19,300202406

main8990H-V2050iAAHH4#,AGH4#,TAHA4#..VFIRE..(EL,PREM,Z)¥21,300202306-202405

sub8990H-V2051¥19,300

main8990H-V2051iAAHH4#,AAHP45,AGH4#,TAHA4#..VFIRE..(EL,PREM,SLS,Z)¥19,300202406

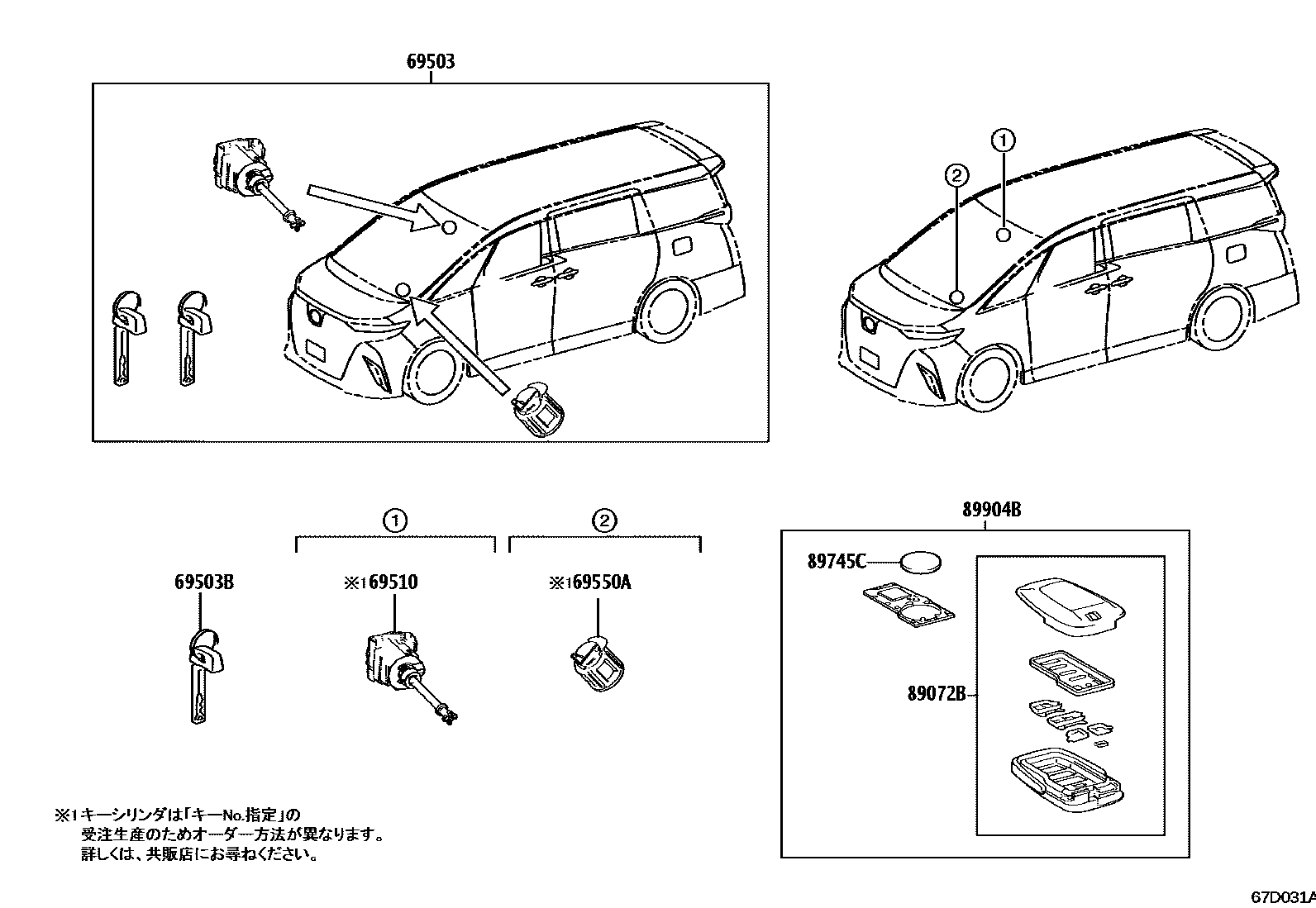

7 parts on this diagram · 1 diagram in section
